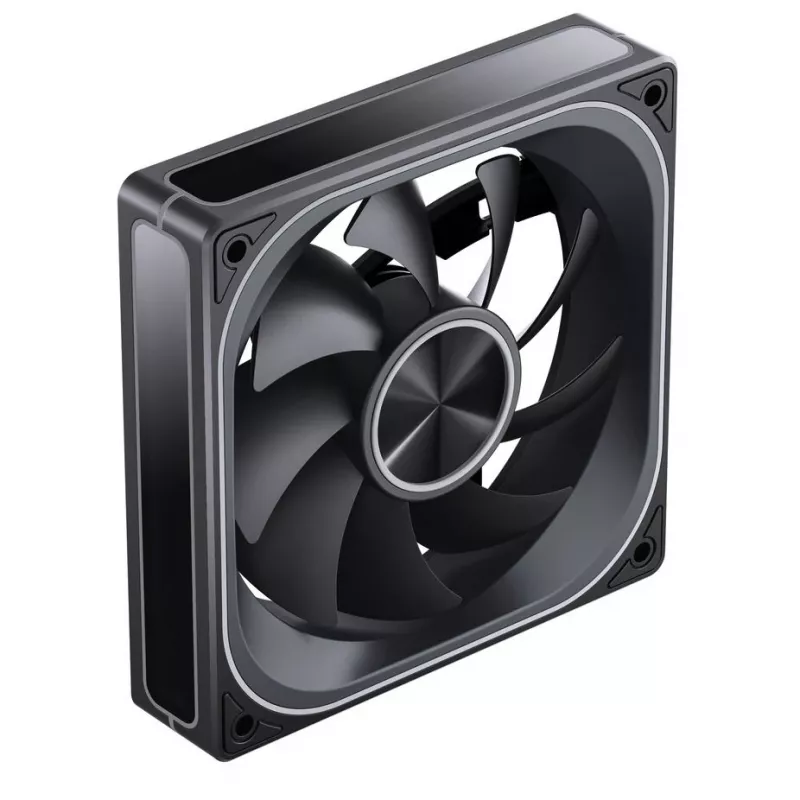

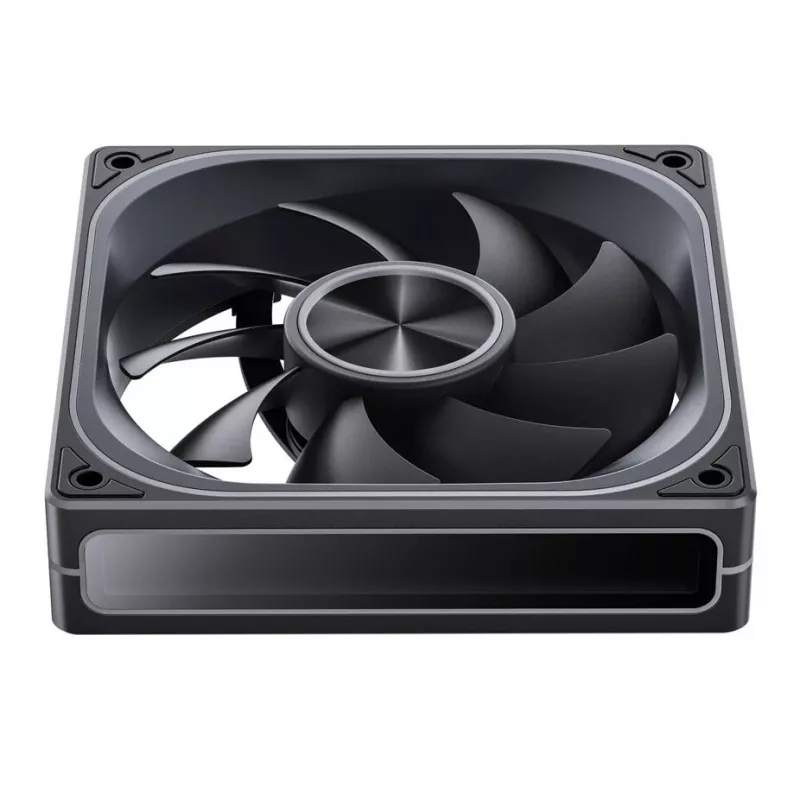

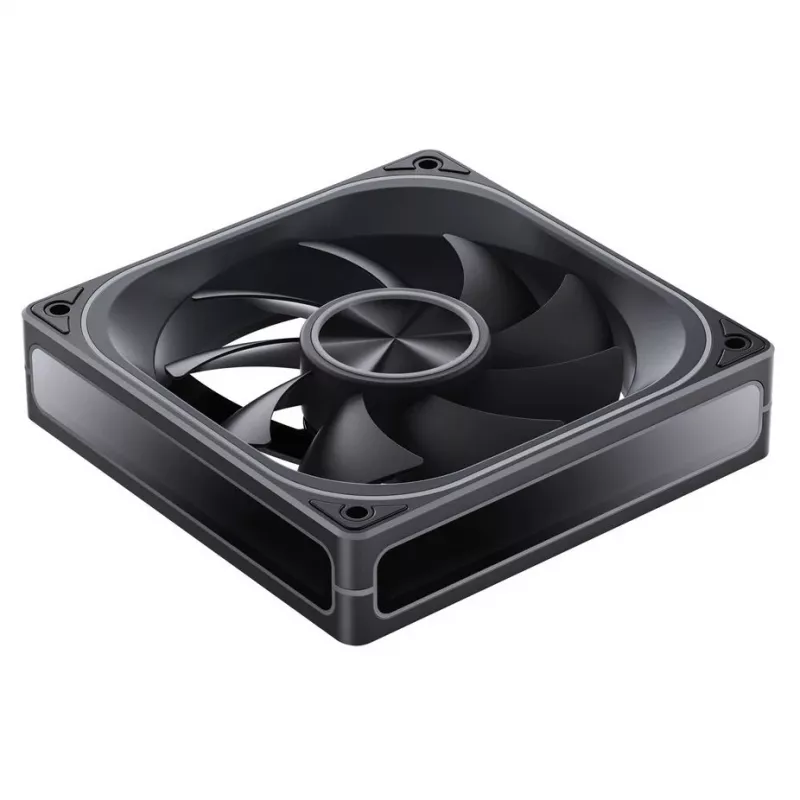

120mm ARGB PWM-kotelotuuletin Jonsbo ZA-120 musta, malli ZA-120B

The Jonsbo ZA-120B is a 120mm ARGB PWM case fan in black designed to provide efficient airflow and addressable RGB lighting for desktop PC builds. Equipped with PWM control, the fan adjusts rotational speed automatically based on motherboard signals or fan controllers, balancing cooling performance and acoustic levels. The ARGB illumination supports individual LED control via standard 3-pin ARGB headers, allowing synchronized lighting effects when connected to compatible controllers or software. The fan is compatible with standard 120mm mounting points and can be installed in chassis, on CPU coolers, or attached to radiators to improve thermal management.

Advantages

The ZA-120B combines PWM speed regulation with addressable RGB lighting, enabling dynamic control of both cooling and visual appearance. Its 120mm form factor ensures broad compatibility with most PC cases and cooling solutions while maintaining a balance between airflow and noise. The black frame and blades provide a neutral aesthetic that integrates with various system color schemes. ARGB compatibility allows for precise color control and lighting synchronization across multiple components.

Suitable for

• Case cooling to improve general airflow and component temperatures
• Mounting on CPU air coolers to assist heat dissipation
• Installation on radiators in liquid cooling loops for optimized thermal exchange
• Systems with ARGB headers for synchronized lighting effects

Key specifications

• Size: 120 mm fan diameter
• Control: PWM speed control for automatic rpm adjustment

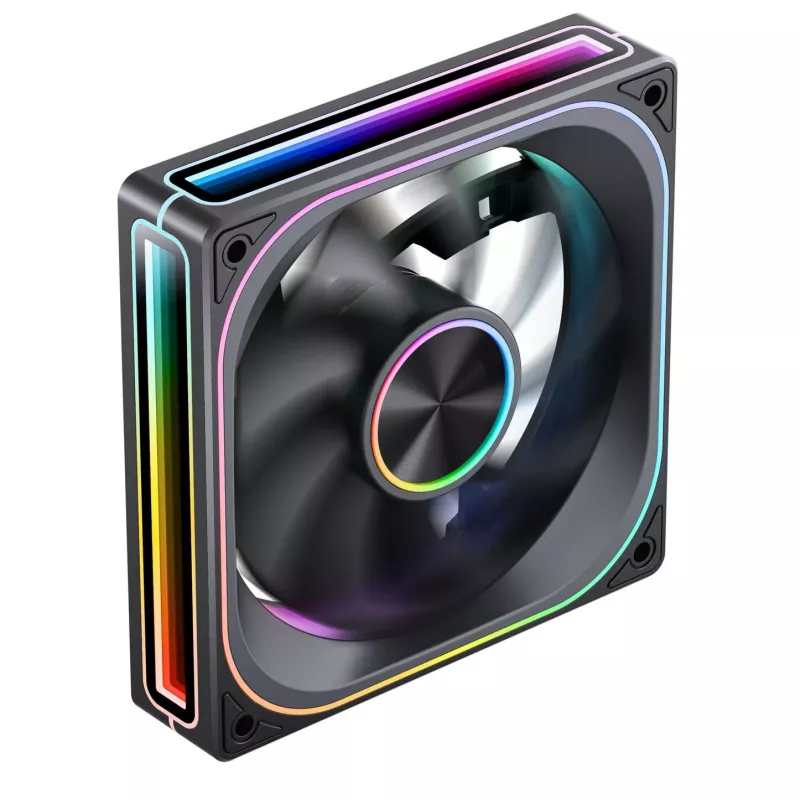

• Lighting: Addressable RGB (ARGB) with individual LED control
• Frame color: Black
• Mounting: Standard 120mm mounting pattern

How to use

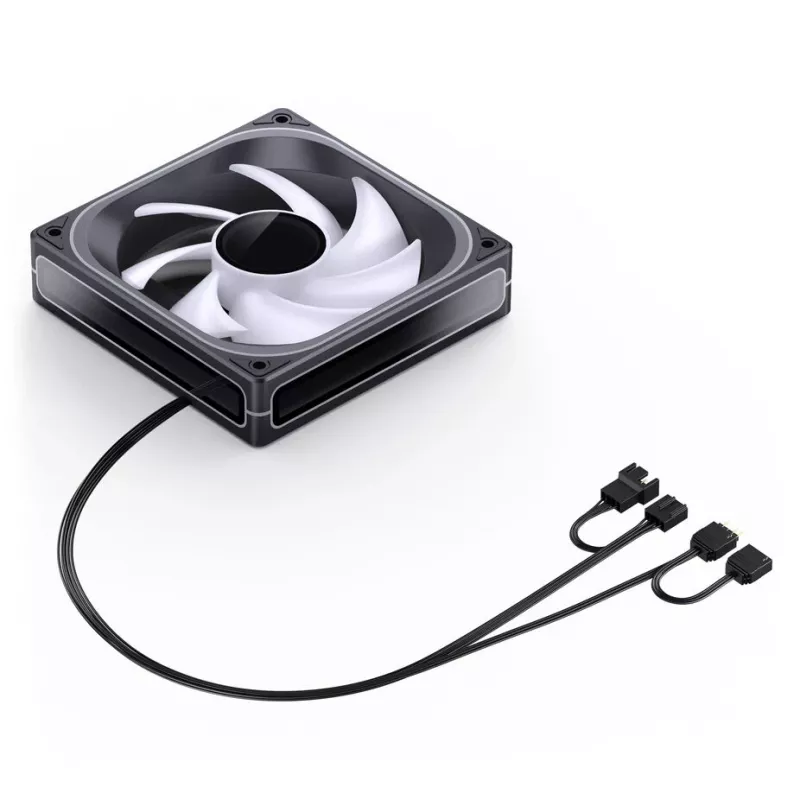

Install the ZA-120B into an available 120mm fan mount in your chassis, on a compatible CPU cooler, or onto a radiator using the supplied screws or standard mounting hardware. Connect the PWM power cable to a motherboard fan header that supports PWM control so the system can regulate fan speed according to temperature. Connect the 3-pin ARGB cable to a compatible ARGB header or controller to enable lighting control. Verify cable routing to avoid interference with other components and ensure the fan orientation supports the desired airflow direction (intake or exhaust).

Recommendations

For best results, use the fan with a motherboard or controller that supports PWM and 3-pin ARGB headers to fully utilize speed regulation and lighting features. When installing multiple fans, set consistent airflow direction and configure firmware or software profiles for balanced cooling and synchronized lighting. Regularly check mounting screws and clean dust from the fan blades and frame to maintain optimal airflow and prolong service life.
