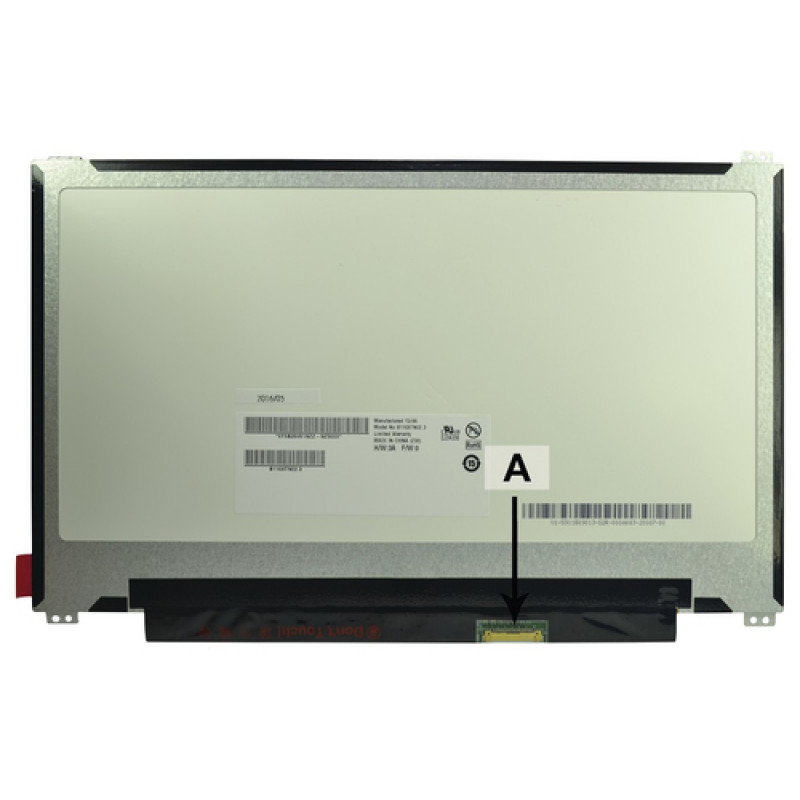

2-power 2P-B116XTN02.3-HW3A näyttö kannettavan tietokoneen varaosa

Laptop replacement screen panel delivering a crisp 1366 x 768 HD WXGA resolution on an 11.6-inch glossy TN display. This panel is engineered to restore visual clarity and brightness to compatible notebooks, offering a straightforward swap for a damaged or faulty original screen.

Advantages

The AU Optronics B116XTN02.3 compatible panel features a 30-pin eDP interface with 2 data lanes, ensuring reliable signal transmission and compatibility with a wide range of laptops. Its WLED backlight provides consistent illumination at 200 cd/m² brightness, while the 400:1 contrast ratio and 45% NTSC colour gamut deliver acceptable colour reproduction for everyday tasks. The glossy finish enhances perceived contrast and colour vibrancy, making it suitable for media consumption and general productivity.

Suitable for

• Replacing a cracked, dim, or dead laptop screen
• DIY repairs and professional refurbishment
• Users needing a cost-effective original-quality panel
• Notebooks requiring an 11.6-inch HD TN panel with eDP connection

Key specifications

• Screen Size: 11.6 inches
• Resolution: 1366 x 768 (HD WXGA)
• Panel Type: TN (Twisted Nematic)
• Backlight: WLED
• Interface: 30-pin eDP, 2 lanes
• Surface: Glossy (Glare)
• Aspect Ratio: 16:9
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast Ratio: 400:1
• Viewing Angles: 90° horizontal, 60° vertical
• Colour Gamut: 45% NTSC
• Touchscreen: No
• Connector Position: Bottom Right (viewed from back)
• Original Panel Manufacturer: AU Optronics (AUO)
• Condition: New

Recommendations

Verify your laptop's exact panel model and connector position before ordering. For best results, installation should be performed by a qualified technician using appropriate tools and anti-static precautions.
