A-LAN Alantec koaksiaalikaapeli RG6, B2ca, LSOH kolminkertainen suojaus 75 ohm

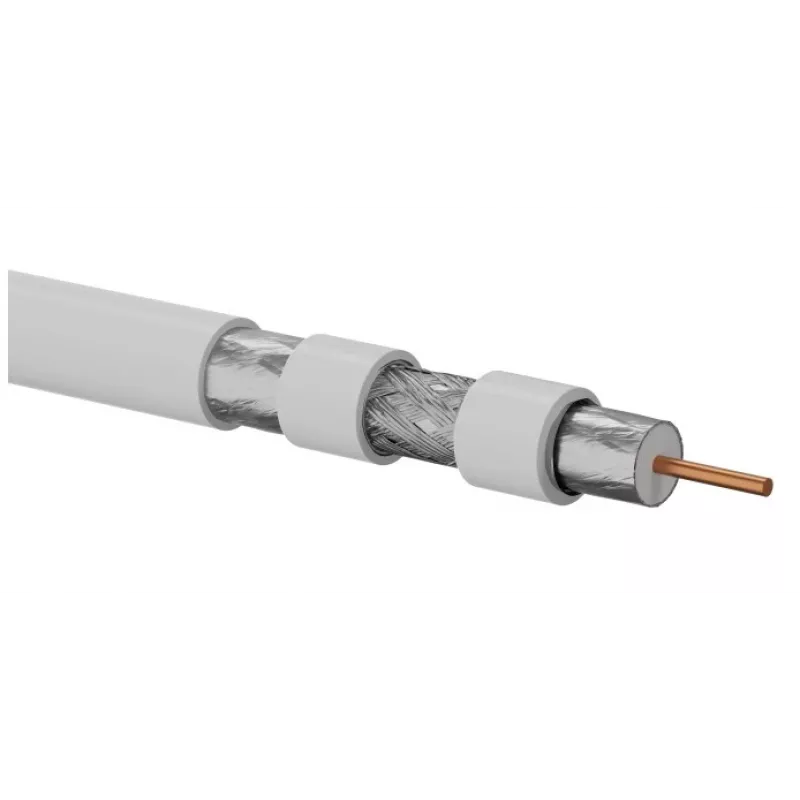

With a screening effectiveness exceeding 100 dB, this RG6 coaxial cable delivers exceptional signal integrity for satellite, cable TV, and broadband installations. The triple-shielded design—bonded aluminum foil, tinned copper braid, and an additional aluminum foil—blocks electromagnetic interference, ensuring clean, reliable transmission even in dense signal environments.

Overview

The A-LAN Alantec RG6 coaxial cable is engineered for professional-grade performance. It features a 1.02 mm bare copper inner conductor, foamed polyethylene dielectric, and a low smoke zero halogen (LSOH) jacket that meets the stringent B2ca-s1a,d1,a1 fire safety classification. With an impedance of 75 ohms, it is the standard choice for DVB-T/T2, DVB-S/S2, cable TV, CCTV, and broadband applications.

What stands out

• Triple shielding for superior noise rejection
• LSOH jacket for enhanced fire safety
• B2ca CPR classification for building compliance
• Low attenuation across the full frequency range
• Bare copper conductor for optimal signal transfer

Technical details

• Impedance: 75 Ω
• Inner conductor: 1.02 mm bare copper
• Dielectric: 4.8 mm foamed polyethylene
• Outer diameter: 6.8 mm
• Attenuation: 4.5 dB/100m @ 50 MHz, 19.0 dB/100m @ 860 MHz, 30.0 dB/100m @ 2150 MHz
• Screening effectiveness: >100 dB
• Operating temperature: -20°C to +70°C
• Colour: White

Our verdict

For installers who demand reliability and safety, this cable hits the mark. Its robust shielding and fire-resistant jacket make it a smart choice for both residential and commercial projects.
