ACT 15 metrin DisplayPort 1.4 aktiivinen optinen kaapeli 8K irrotettavalla plugilla

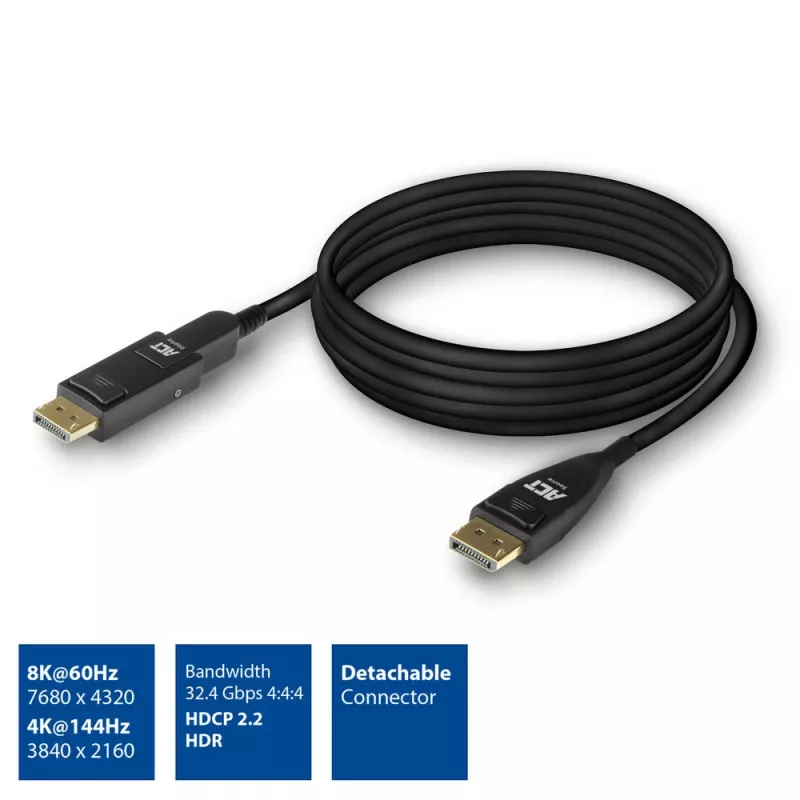

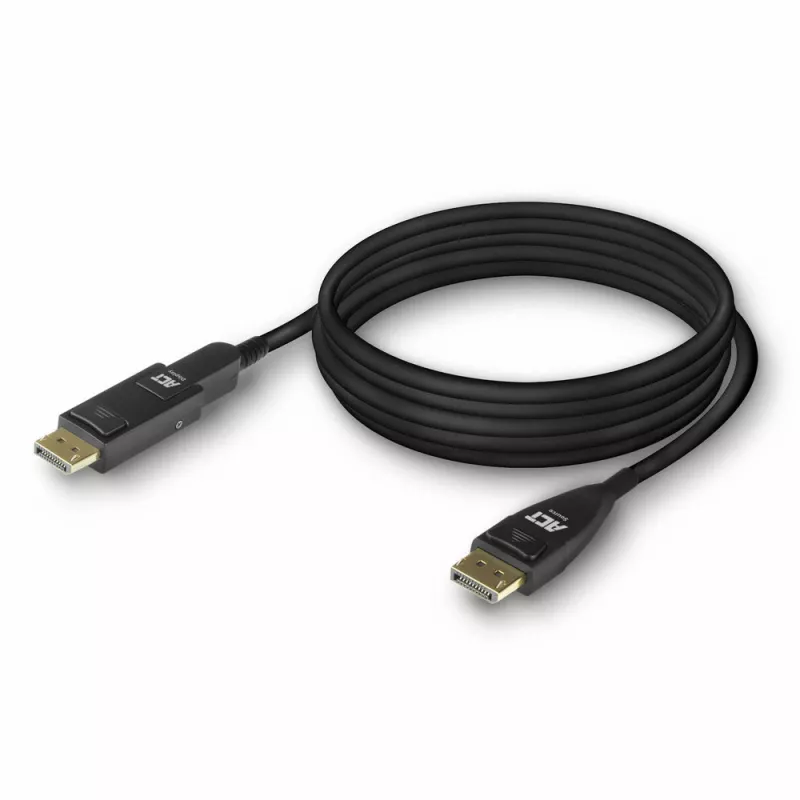

The ACT Active Optical Cable DisplayPort 1.4 (AK4151) is a 15 m DisplayPort cable that combines copper and optical fiber to transmit high-resolution video and multi-channel audio over long distances without data loss. With a 4.5 mm diameter and a detachable DisplayPort plug, this cable is designed for flexible routing through conduits and plenum spaces while maintaining support for 8K (7680x4320) @ 60Hz, HDR and common digital audio formats.

Advantages

The cable uses an active optical design with copper conductors and Kevlar-protected fiber to provide a 32.4 Gbps (4:4:4) bandwidth that preserves image and audio quality over long runs. It includes aluminium-foil shielding for low RFI/EMI, supports HDCP 2.2, EDID, DDC and CEC, and is supplied on a coil with a detachable connector to simplify installation in confined spaces.

Suitable for

• Connecting high-resolution displays up to 8K @ 60Hz in conference rooms and control rooms
• Long-distance DisplayPort runs through conduits and plenum spaces
• Home cinema or professional AV setups requiring multi-channel audio and HDR

Key specifications

• Length: 15 m
• Interface: DisplayPort 1.4 to DisplayPort 1.4
• Bandwidth: 32.4 Gbps (4:4:4)
• Maximum supported resolution: 7680 x 4320 @ 60Hz (8K)
• Features: HDR, HDCP 2.2, EDID, DDC, CEC, ARC
• Audio: Multi-channel, Dolby TrueHD, DTS-HD Master Audio
• Cable diameter: 4.5 mm
• Construction: copper + Kevlar-protected optical fiber, aluminium-foil shielding
• Colour: Black
• Brand / MPN: ACT AK4151

How to use

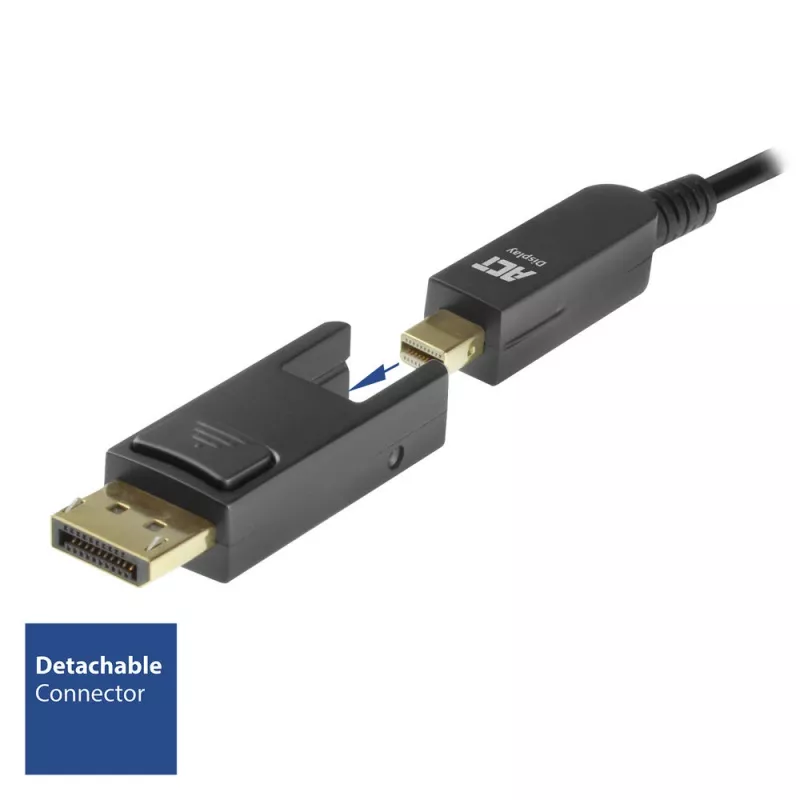

Disconnect the detachable DisplayPort plug from the cable body, route the flexible 4.5 mm cable through the conduit or plenum space, then reconnect the plug to the cable and attach the connectors to the source and display. Ensure the source and display connectors are matched to the marked ends on the cable for correct orientation. Power on devices and configure display settings as needed to enable 8K resolution and HDR where supported.

Recommendations

For reliable 8K @ 60Hz performance, use compatible DisplayPort 1.4 devices and enable HDR and HDCP 2.2 support in the source and display. Avoid sharp bends and excessive pulling force when routing the cable through conduits.
