ALANTEC lattiarasia 6M 6 x (45x45) säädettävä syvyys tekniselle lattialle

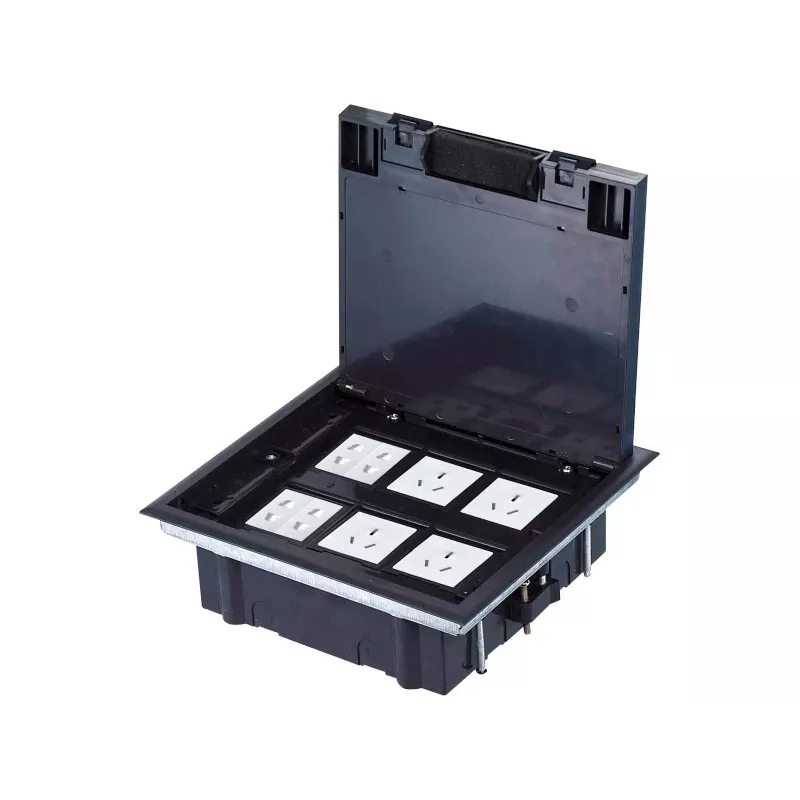

The ALANTEC Floor Box 6M is a robust flush-mount floor box designed for commercial, office, and residential environments. It accommodates up to 6 modules with 45x45mm inserts, providing flexible connectivity for power, data, and AV outlets. The adjustable depth feature (up to 30mm) allows precise alignment with floor finishes, while the galvanized steel body ensures durability and long service life.

Advantages

This floor box offers easy installation with pre-punched knock-outs for cable entry (20mm/25mm conduits). Its IP20 rating protects against solid objects, and the IK07 impact rating ensures resistance against mechanical stress. The load capacity of up to 1500 N makes it suitable for pedestrian traffic when used with a compatible cover. Internal cable routing guides help organize cables neatly.

Suitable for

• Commercial offices and workspaces
• Residential floor outlets
• Public areas requiring discreet connectivity
• Technical floors with screed or raised access

Key specifications

• Product Type: Floor Box
• Mounting Type: Flush Mount
• Module Capacity: 6 Modules (6 x 45x45mm Inserts)
• Body Material: Galvanized Steel
• IP Rating: IP20
• IK Rating: IK07
• Adjustable Height: Up to 30mm
• Installation Depth: 80 mm
• Load Capacity: Up to 1500 N
• Compatibility: Simon 54 Series Covers and Inserts
• Standards: EN 50085-2-2
• Colour: Grey / Metallic

Recommendations

For optimal performance, use with compatible Simon 54 Series covers and ensure proper sealing when installed in screed floors. The box is designed for indoor use only.
