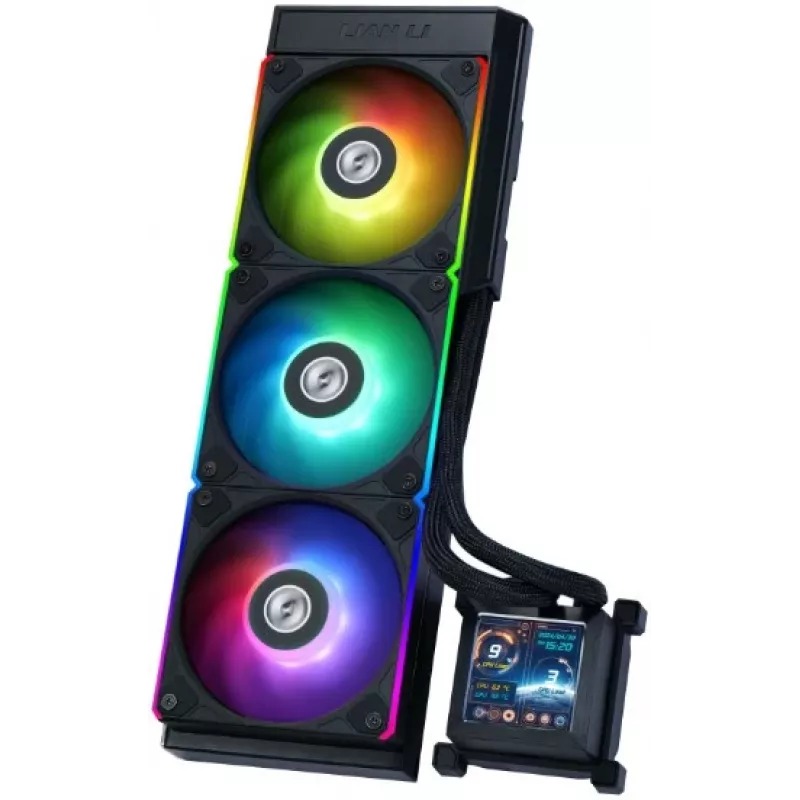

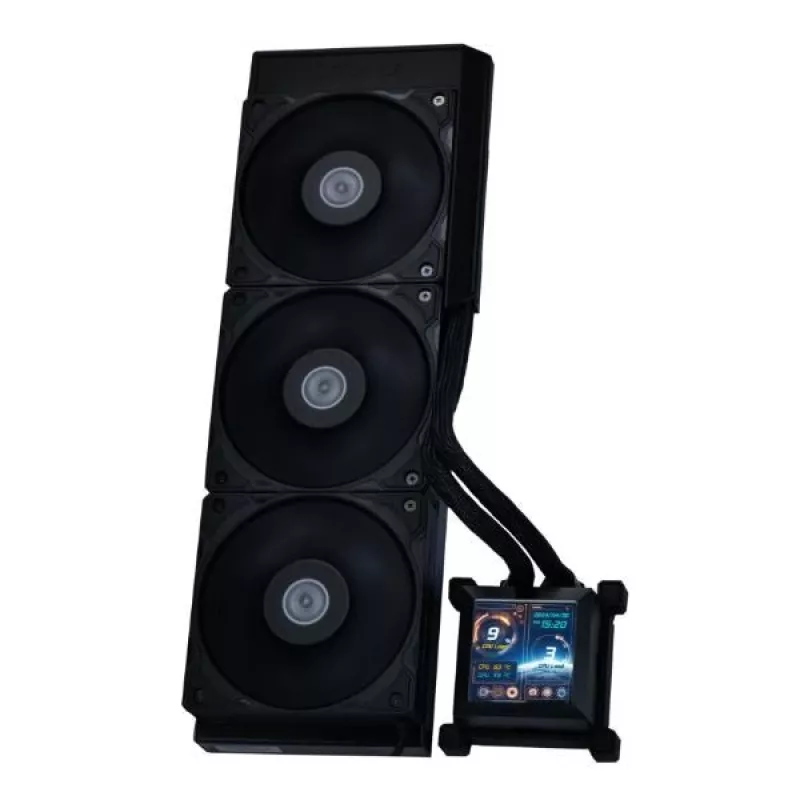

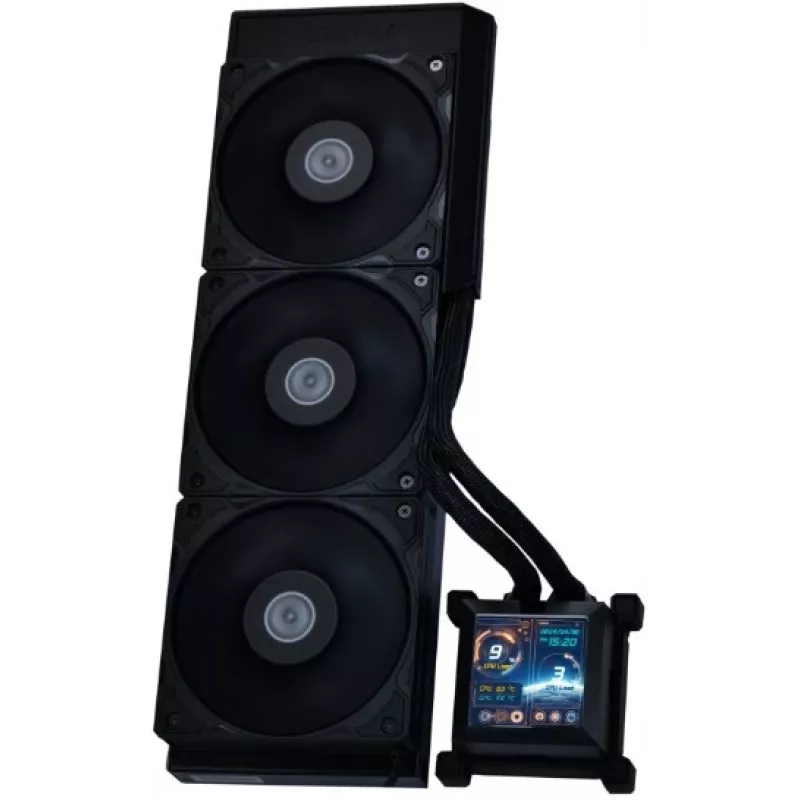

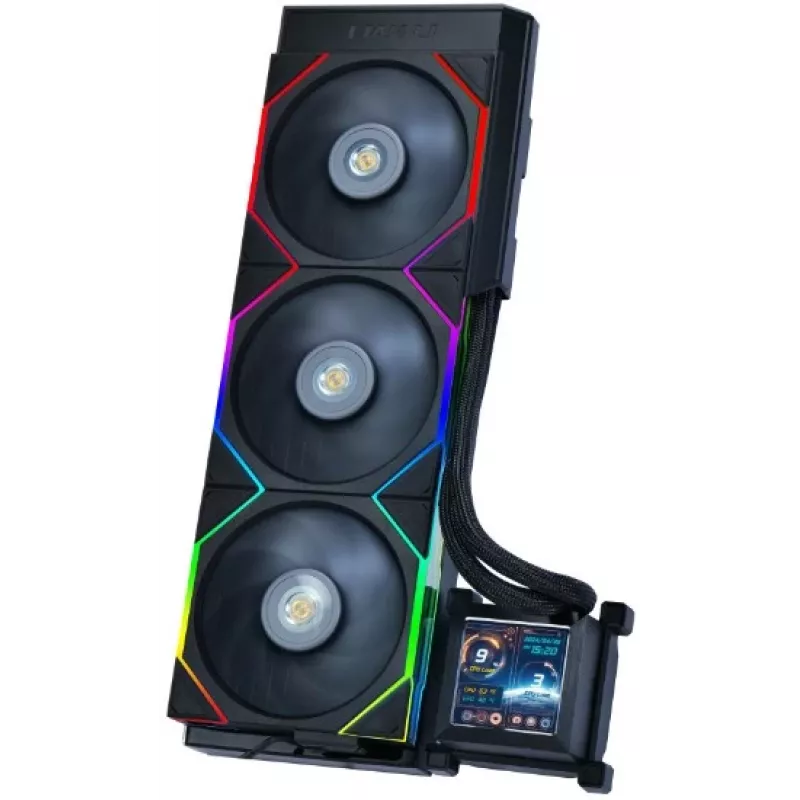

All-in-One-nestekühler Lian Li HydroShift LCD 360S 12 cm musta

The Lian Li HydroShift LCD 360S 12 cm Black is an all-in-one liquid cooler that combines compact dimensions with advanced features. It uses a side-mounted coolant pathway that integrates the cooling tubes with the radiator for a clean, streamlined appearance. The cooler includes a 480×480 24-bit display with 500 nits brightness, server-grade ribbed tubes, pre-installed mounting brackets, integrated cable routing and a three-fan 360 mm radiator designed to work with 120 mm fans (200–2500 RPM, up to 73.14 CFM). The pump and display are controllable through L-Connect 3 for real-time monitoring, dynamic effects and theme customization.

Advantages

The side-mounted design keeps cooling tubes aligned with the radiator for a neat aesthetic and simplified installation. Server-grade ribbed tubes provide flexibility for tight bends without reducing internal diameter or flow. Integrated fan and USB cabling reduces visible wires and simplifies connections. The 480×480 display offers real-time CPU/GPU monitoring, customizable layouts, dynamic visual effects, screenshot and screen-recording functions, and multiple themes via L-Connect 3. Performance tests show improved cooling and lower noise versus the previous GA II LCD model.

Suitable for

• High-performance desktop PCs with 360 mm radiator support
• Systems where internal appearance and cable management are important
• Users who want integrated hardware monitoring and a customizable pump display
• Overclocked or heavily loaded CPUs requiring efficient liquid cooling

Key specifications

• Model: Lian Li HydroShift LCD 360S (HSLCD36SB)
• Radiator size: 360 mm (3 × 120 mm fans)
• Fan size: 120 mm; speed 200–2500 RPM; max airflow 73.14 CFM
• Bearing: Fluid Dynamic Bearing (FDB)
• Display: 480 × 480 pixels, 24-bit color, 500 nits brightness
• Tubes: server-grade ribbed tubes, side-mounted to radiator
• Cable integration: fan cables routed through tubes; USB integrated into pump
• Software: L-Connect 3 for monitoring, themes and effects
• Warranty: 6 years; leakage hardware compensation for 3 years (non-manmade causes)
• MPN / EAN: HSLCD36SB / 4718466015754

How to use

Install the HydroShift AIO according to your case's radiator support, using the pre-installed mounting brackets and the additional bracket if top-mount space is limited. Mount the 360 mm radiator with the three 120 mm fans, connect the integrated fan cables and the pump's USB cable to the appropriate headers on the motherboard. Secure the pump to the CPU socket using the supplied bracket and conceal the bracket with the pump cover if desired. Connect power and, if needed, configure the display and monitoring via L-Connect 3.

Recommendations

For best results, ensure adequate case airflow and verify radiator clearance before installation. Use L-Connect 3 to set monitoring layouts and dynamic effects, and periodically check tubing and fittings for secure placement. The included pre-installed brackets and cable clips help maintain a clean internal layout.
