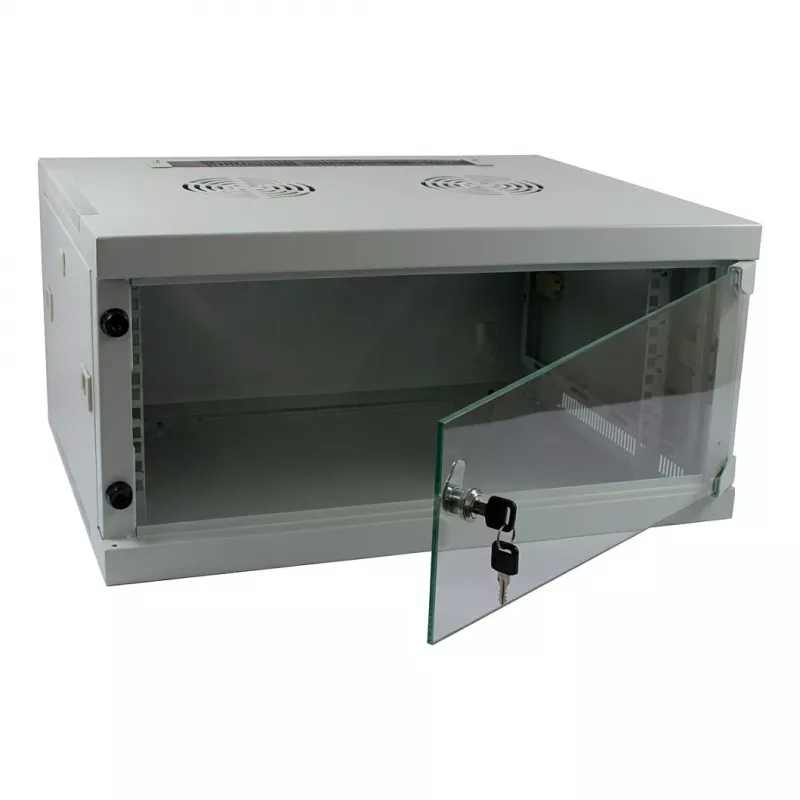

ALLNET 19" seinäkaappi 12U W541/D445mm 1-osainen vaaleanharmaa SMQ-sarja

The ALLNET SMQ Series 19" wall-mounted housing offers a robust and secure solution for housing your network equipment. With 12U of rack space and a compact 1-piece design, it is ideal for small to medium-sized installations where space is at a premium. The light grey (RAL 7035) steel construction ensures durability and a professional appearance.

Advantages

This wall-mounted cabinet provides excellent value with its lockable safety glass door, removable side panels, and integrated cable management. The depth-adjustable mounting rails allow flexible installation of various devices, while the passive ventilation and fan-ready design ensure optimal cooling. Easy to install with included accessories.

Suitable for

• Network switches, patch panels, and routers
• Small server and IT equipment
• Office, retail, and industrial environments

Key specifications

• Rack Units: 12U
• Rack Standard: 19-inch
• Mounting Type: Wall-mounted
• External Dimensions (WxDxH): 541 x 445 x 635 mm
• Usable Depth: 395 mm
• Material: Steel sheet
• Colour: Light Grey (RAL 7035)
• Front Door: Lockable safety glass door
• Side Panels: Removable and lockable
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive ventilation, fan unit ready
• Mounting Rails: Two pairs (front and rear), depth adjustable
• Load Capacity (Static): 60 kg
• Protection Class: IP20
• Construction: Welded frame, fully assembled
• Series: SMQ Series
• Included Accessories: 2 keys, mounting material, cage nuts set

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use quality patch cables and accessories for reliable network operation.
