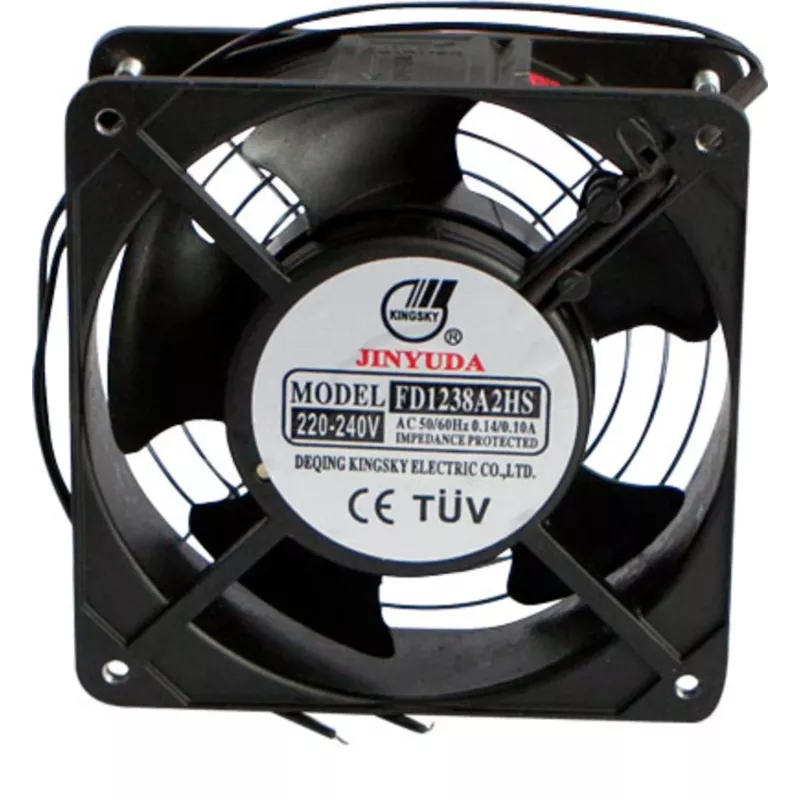

ALLNET varatuuletin tuuletinmoduulille B120/L120/T38mm

The ALLNET Replacement Fan for Fan Unit B120/L120/T38mm is a high-quality axial cooling fan designed to replace worn or failed fans in compatible ALLNET fan units. Engineered for reliable performance, this 120x120x38mm fan delivers efficient airflow and static pressure to maintain optimal operating temperatures in network switches, servers, and other IT equipment.

Advantages

This replacement fan ensures continued cooling performance with minimal downtime. Its dual ball bearing design provides a long lifespan of 50,000 hours, while the 12V DC operation and 2-pin connector make installation straightforward. The fan operates at 2500 RPM, producing 100 CFM of airflow and 3.5 mmH2O static pressure, with a noise level of only 40 dB(A).

Suitable for

• ALLNET fan units B120, L120, and T38mm
• Network switches and appliances requiring 120mm fan replacement
• Server and rack enclosure cooling
• General chassis ventilation

Key specifications

• Fan Type: Axial Cooling Fan
• Dimensions: 120 x 120 x 38 mm
• Rated Voltage: 12V DC
• Rated Current: 0.25 A
• Power Consumption: 3 W
• Airflow: 100 CFM (170 m³/h)
• Static Pressure: 3.5 mmH2O
• Fan Speed: 2500 RPM
• Noise Level: 40 dB(A)
• Bearing Type: Dual Ball Bearing
• Connector: 2-pin
• Lifespan (MTTF): 50,000 hours
• Frame Material: PBT Plastic
• Impeller Material: PBT Plastic
• Operating Temperature: -10°C to 70°C

Recommendations

For optimal performance, ensure the replacement fan is compatible with your specific ALLNET fan unit model. This fan is ideal for maintaining cooling in network and server environments where reliability is critical.
