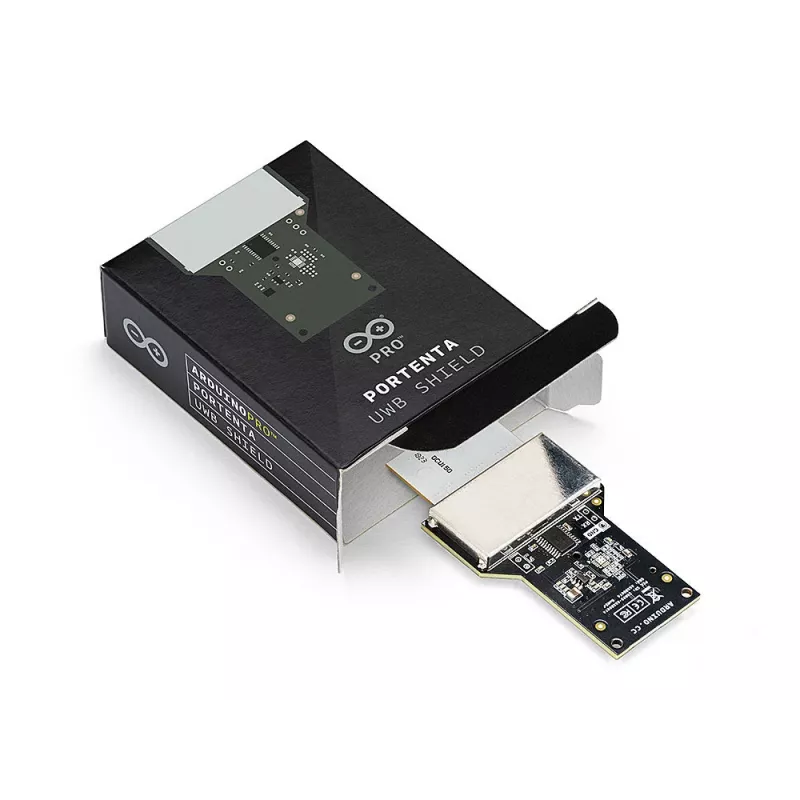

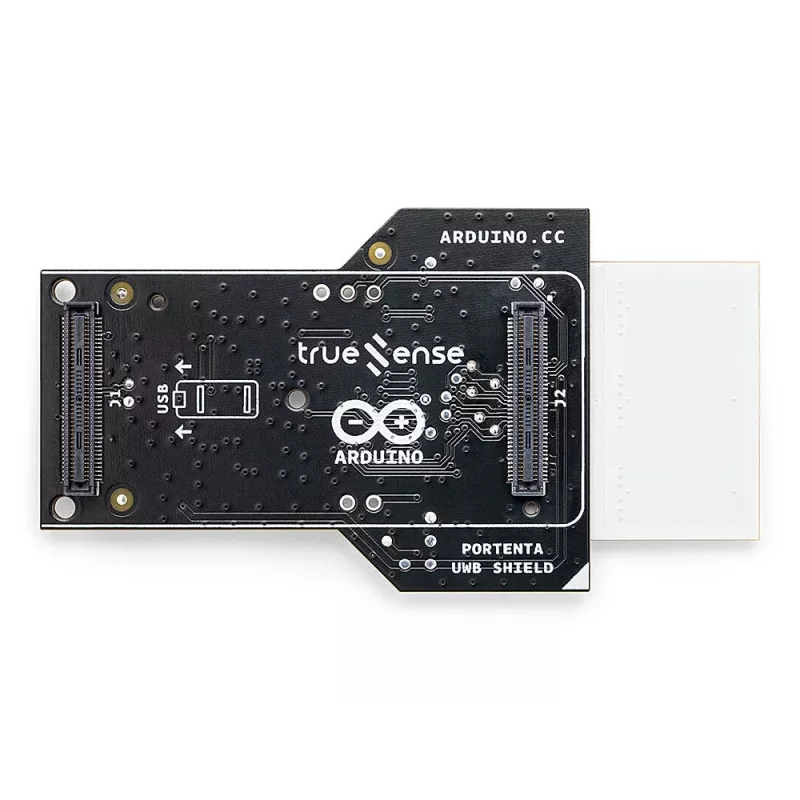

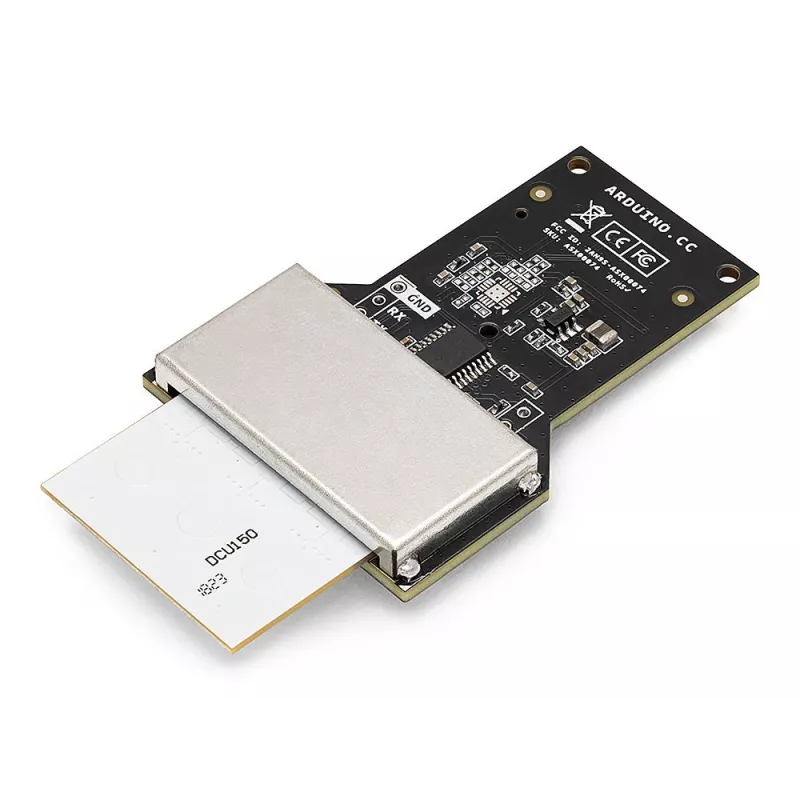

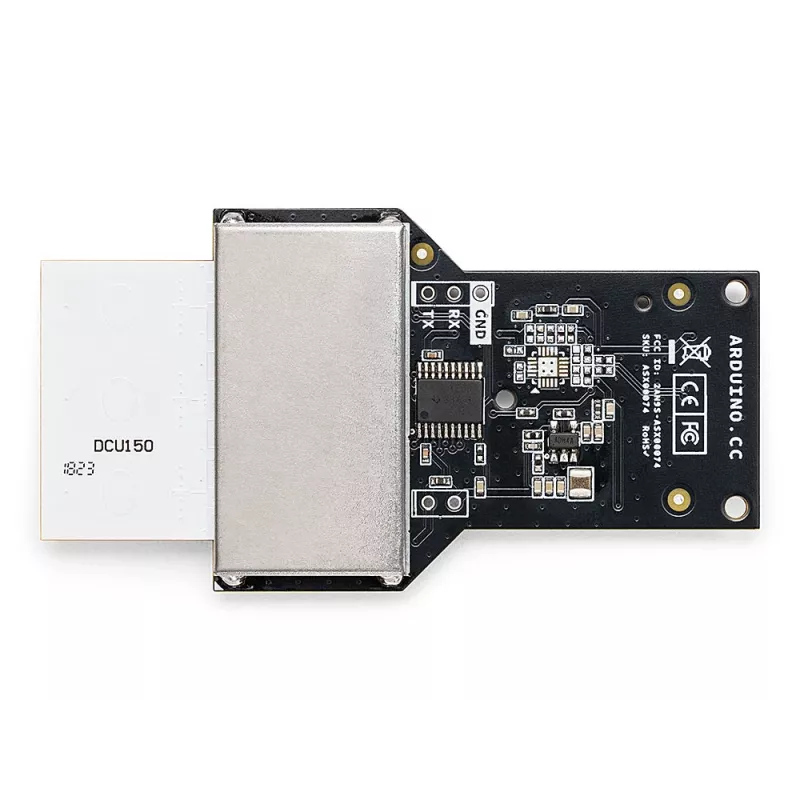

Arduino Portenta UWB Shield ASX00074 | UWB-moduuli IMU:lla ja Secure Elementillä

This Portenta UWB Shield adds precise ultra-wideband positioning to Arduino Portenta boards. With the NXP SR150 UWB chipset, it delivers centimeter-level ranging accuracy for real-time localization and secure access.

Advantages

Integrated UWB antenna, IMU, barometer, and secure element provide a complete solution for spatial awareness. The shield connects via high-density Portenta connectors and communicates over SPI, ensuring seamless integration with Portenta H7, C3, and X8.

Suitable for

• Real-time location systems (RTLS)
• Asset tracking and indoor navigation
• Secure access control and keyless entry
• Robotics and drone positioning

Key specifications

• UWB chipset: NXP SR150 (IEEE 802.15.4z)
• Ranging accuracy: centimeter-level
• Data rate: up to 27 Mbps
• IMU: ST LSM6DSOXTR (6-axis accelerometer & gyroscope)
• Barometer: ST LPS22HH
• Secure element: NXP SE050C
• Operating voltage: 3.3V (from host)
• Interface: SPI
• Form factor: Portenta standard

Recommendations

Pair with Arduino Portenta H7 for high-performance UWB applications. Use Arduino IDE or Mbed OS with dedicated UWB libraries for rapid development.
