Asennussarja Brodit 202016 musta alumiini muovi

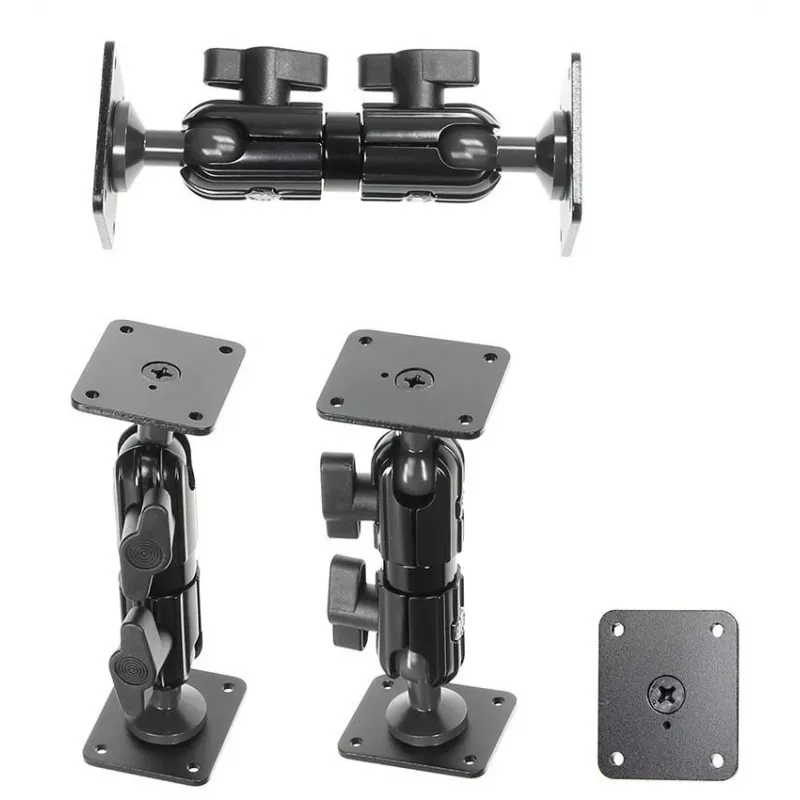

The Brodit 202016 Mounting Kit is a standard-duty pedestal mount for stable installation of your device in vehicles or on any flat surface. Constructed from black aluminium and plastic, it supports devices up to 3 kg and includes a 2 cm ball head for secure attachment. The mount provides flexible positioning through a ball head that tilts 210° and swivels 360°, and it uses AMPS hole pattern compatibility for use with Brodit tilt-swivel holders.

Advantages

The kit combines aluminium and plastic components to offer a balance of strength and reduced weight (0.173 kg). Its 2 cm ball diameter and wide tilt/swivel range allow precise angle adjustment. AMPS hole compatibility ensures easy pairing with all Brodit holders that accept tilt-swivel fittings, providing reliable fixation in vehicles or on flat surfaces.

Suitable for

• Mounting smartphones or tablets in cars, vans, and trucks
• Fixed installations on desks or workbenches where a stable pedestal mount is required
• Use with Brodit tilt-swivel holders that match the AMPS hole pattern

Key specifications

• Brand: Brodit
• Model / MPN: 202016
• Material: Black aluminium and plastic
• Maximum load capacity: 3 kg
• Ball diameter: 2 cm
• Tilt range: 210°
• Swivel range: 360°
• Compatible hole pattern: AMPS
• Weight: 0.173 kg
• EAN: 7320282020163

How to use

Attach the pedestal base to a suitable flat surface using appropriate fasteners for the mounting location. Secure the ball head assembly and connect a compatible Brodit holder using the AMPS hole pattern. Adjust the device angle by tilting up to 210° and swiveling 360° to achieve the desired viewing position. Verify all fastenings are tight before driving or operating equipment.

Recommendations

Do not exceed the maximum load capacity of 3 kg. Select installation fasteners suited to the vehicle or surface material and periodically check tightness to maintain stable fixation.
