ASRock Rack ROME2D32GM-2T emolevy - Socket SP3, EATX, DDR4, 10GbE, IPMI

The ASRock Rack ROME2D32GM-2T is a high-performance server motherboard designed for AMD EPYC 7002/7003 series processors (Rome/Milan). Featuring the SP3 socket, this EATX board supports up to 8 TB of DDR4 ECC memory across 32 DIMM slots, delivering exceptional performance for data center, cloud computing, and enterprise applications. With dual 10 Gigabit Ethernet via Intel X710-AT2, dedicated IPMI management, and extensive PCIe 4.0 expansion, it provides a robust foundation for demanding workloads.

Advantages

Unmatched memory capacity and bandwidth with 32 DDR4 DIMM slots and support for up to 3200 MHz speeds. Seven PCIe 4.0 x16 slots offer ample room for GPUs, NVMe drives, and network cards. Dual 10GbE ports ensure high-speed network connectivity, while the dedicated IPMI (ASPEED AST2500) enables remote management and KVM over IP. The board also includes two M.2 slots (PCIe 4.0 x4) and two SlimSAS connectors for flexible storage options.

Suitable for

• Enterprise servers and data centers
• Virtualization and cloud computing platforms
• High-performance computing (HPC) clusters
• Storage servers and NAS systems
• AI and machine learning workloads

Key specifications

• CPU Socket: SP3
• Supported CPUs: AMD EPYC 7002/7003 Series (Rome/Milan)
• Form Factor: EATX (12" x 13")
• Memory: 32 x DIMM, DDR4 ECC RDIMM/LRDIMM, up to 8 TB, 3200 MHz
• PCIe Slots: 7 x PCIe 4.0 x16
• M.2 Slots: 2 x M.2 (PCIe 4.0 x4, 2280/22110)
• Storage: 2 x SATA3 6Gb/s, 2 x SlimSAS (PCIe 4.0 x4 or 4 x SATA3)

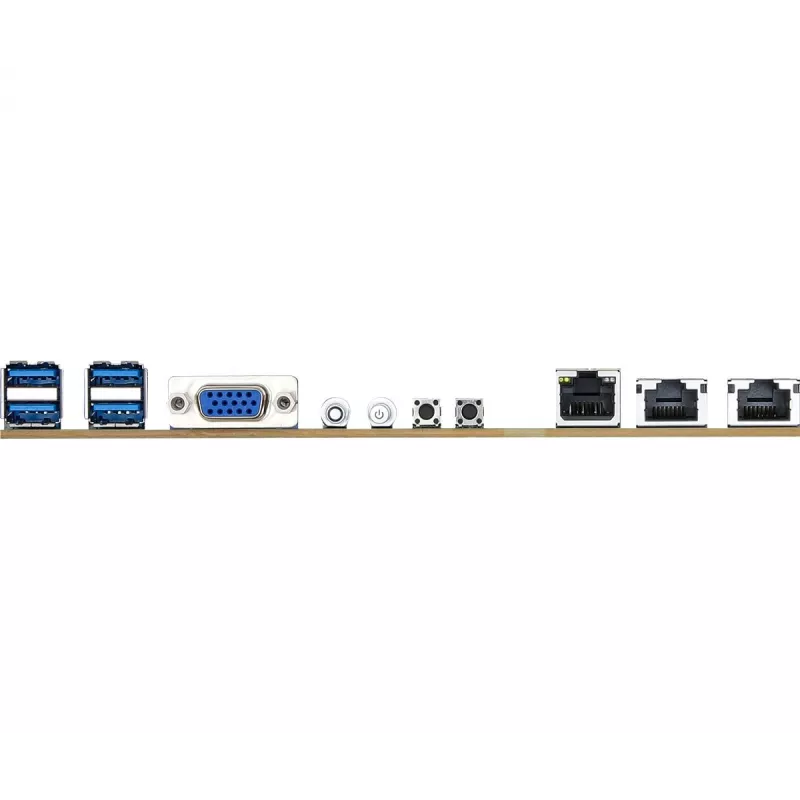

• LAN: 2 x 10 Gigabit Ethernet (RJ45) via Intel X710-AT2
• Management LAN: 1 x Dedicated IPMI (RJ45)
• IPMI: ASPEED AST2500 with KVM over IP
• Video: 1 x D-Sub (VGA)
• USB: 2 x USB 3.2 Gen1 Type-A (rear), 1 x USB 3.2 Gen1 Type-C (rear), 2 x USB 2.0 Type-A (rear)
• Power: 24-pin ATX, 2 x 8-pin EPS12V

Recommendations

This motherboard is ideal for building a high-capacity server with AMD EPYC processors. Ensure your chassis supports EATX form factor and has sufficient clearance for the large board. For optimal memory performance, use registered ECC DDR4 modules. The dual 10GbE ports are perfect for high-bandwidth networking; consider using compatible switches and cables.
