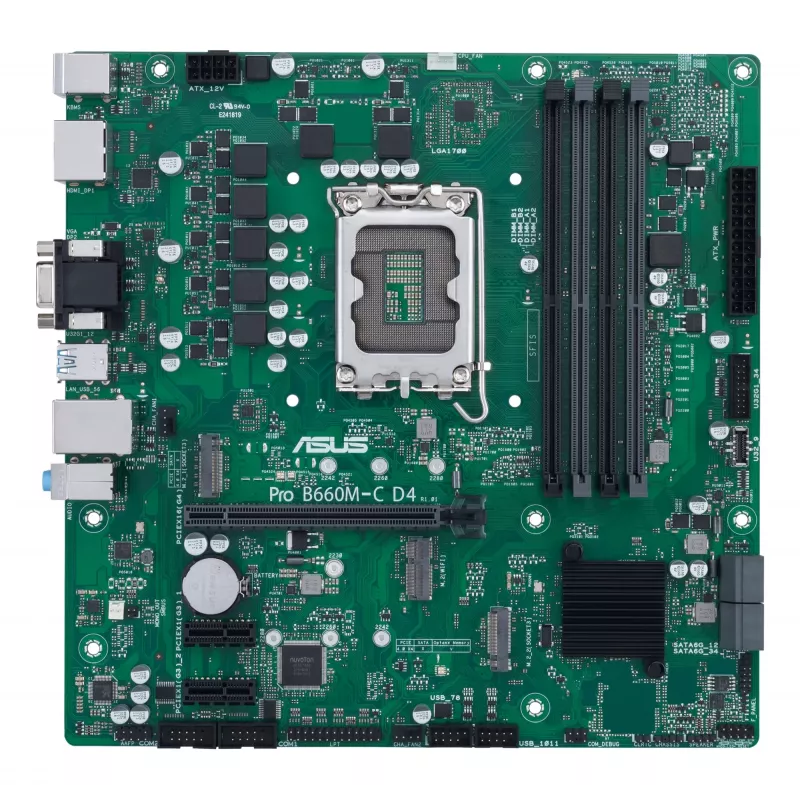

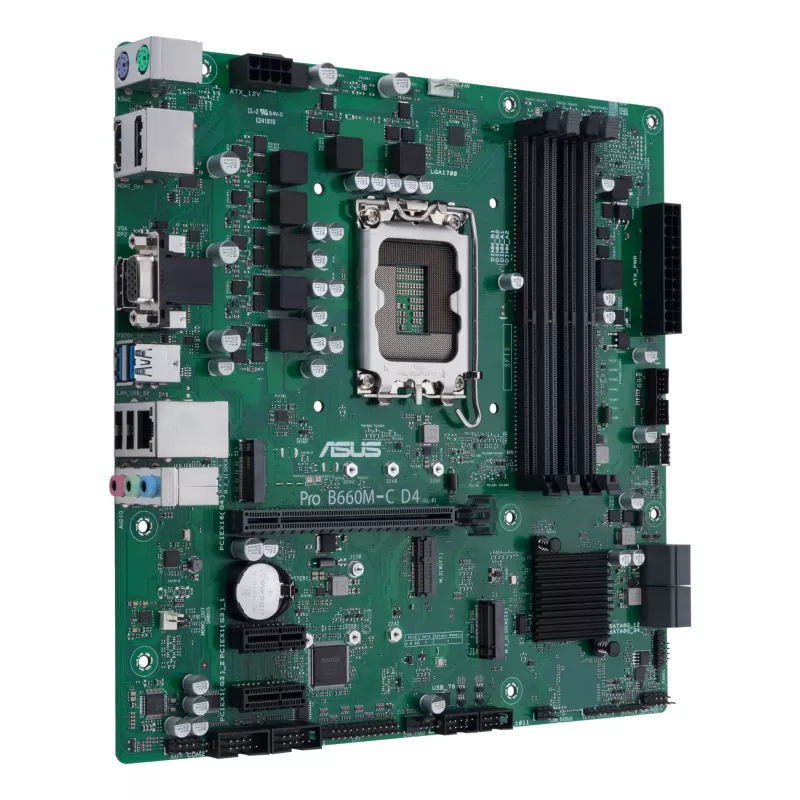

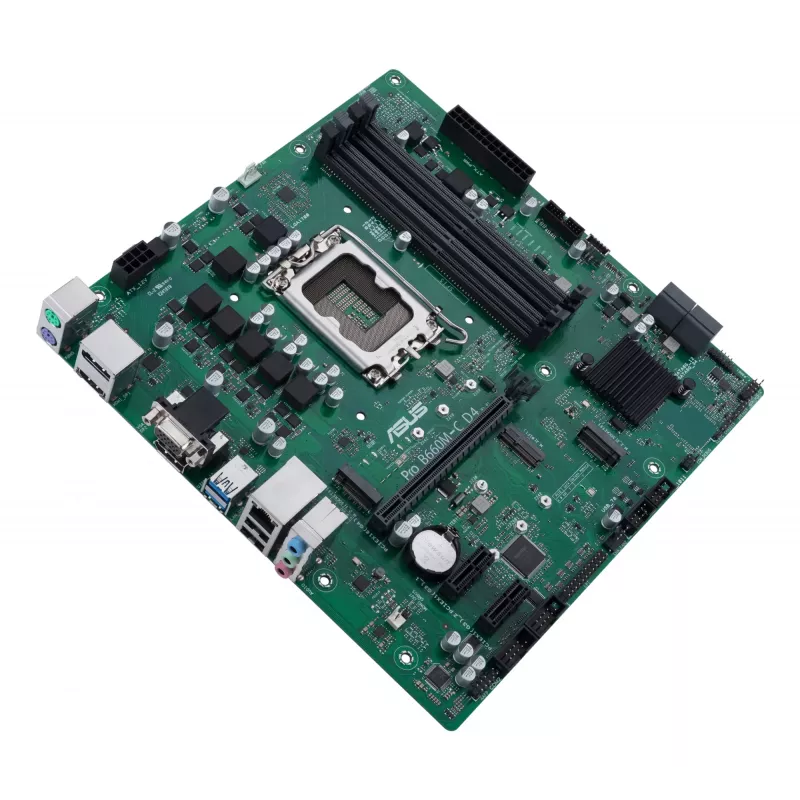

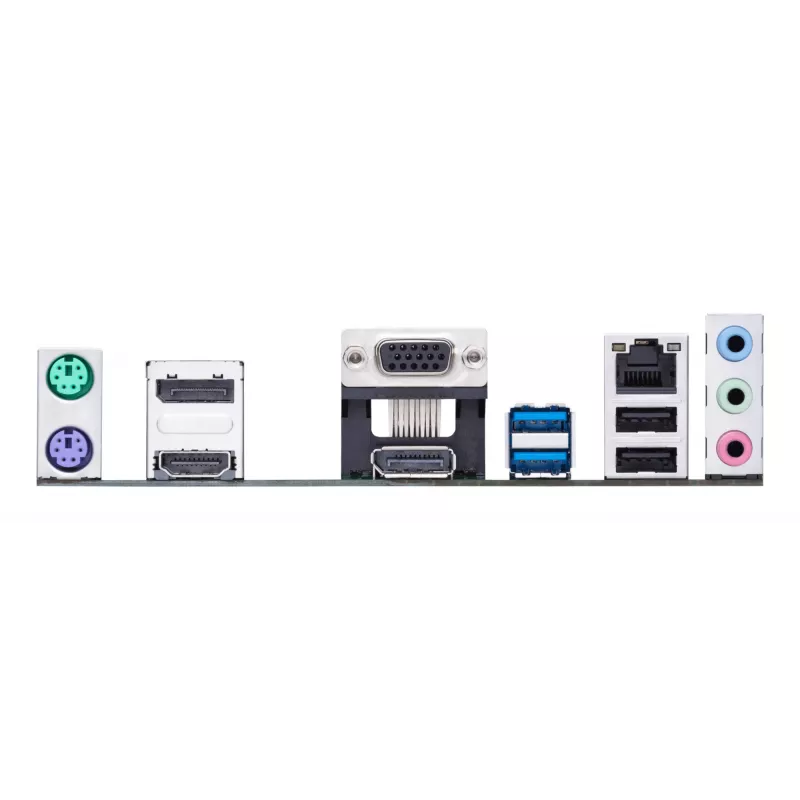

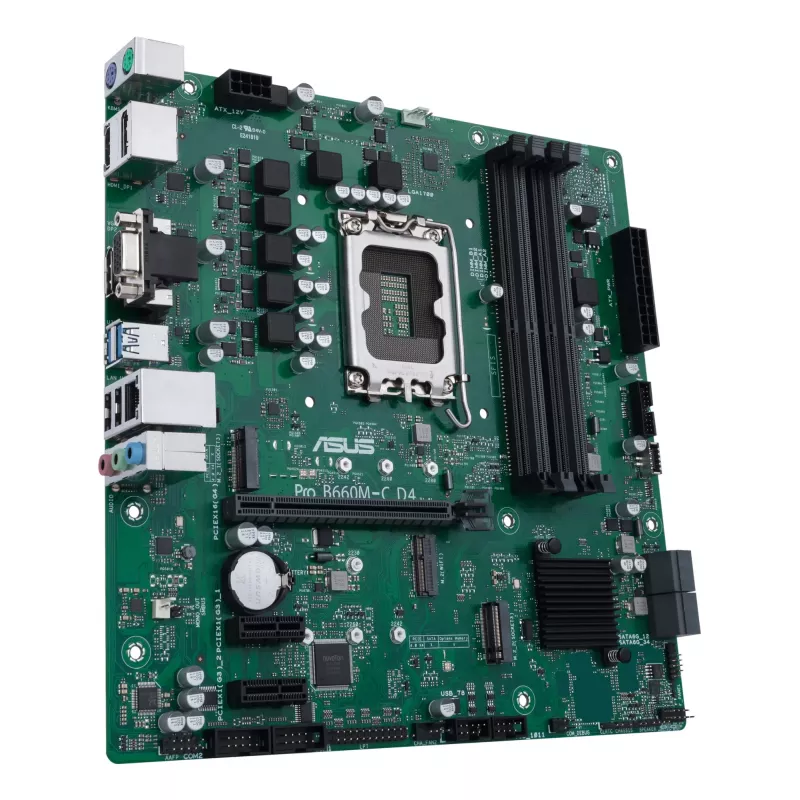

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
213,90 €
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides wor... Lue lisää
Loppu varastosta
Lisää toivelistaan Vertaa tuotetta
Varasto Loppu varastostaEi varastossa Tuotekoodi 1175625 Merkki ASUS Malli 90MB19B0-M1EAYC Takuu 2 vuotta
KategoriaEmolevyt

Toimitus ja palautukset

Emolevy ASRock B650 Steel Legend WiFi — AMD B650, kanta AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, 2,5 Gb LAN
Pikanäkymä
Emolevy ASRock B650 Steel Legend WiFi — AMD B650, kanta AM5, ATX, DDR5, 4x DIMM, 192 GB, Wi‑Fi 6E, 2,5 Gb LAN
193,68 €
ALV 0 %:154,33 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
Emolevy ASUS PRIME B860M-K — Intel B860, LGA 1851, micro ATX, DDR5, 2x M.2, 2 DIMM, 2.5Gb LAN
Pikanäkymä
Emolevy ASUS PRIME B860M-K — Intel B860, LGA 1851, micro ATX, DDR5, 2x M.2, 2 DIMM, 2.5Gb LAN
147,40 €
ALV 0 %:117,45 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
ASRock H610M-HVS/M.2 R2.0 DDR4 LGA1700 Micro-ATX emolevy
Pikanäkymä
ASRock H610M-HVS/M.2 R2.0 DDR4 LGA1700 Micro-ATX emolevy
78,57 €
ALV 0 %:62,61 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
ASRock emolevy B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
Pikanäkymä
ASRock emolevy B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
98,54 €
ALV 0 %:78,52 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
Emolevy GIGABYTE X870 GAMING WIFI6 ATX, AMD X870, Socket AM5, DDR5, 4x DIMM, jopa 256 GB, Wi-Fi 6, 2.5Gb LAN
Pikanäkymä
Emolevy GIGABYTE X870 GAMING WIFI6 ATX, AMD X870, Socket AM5, DDR5, 4x DIMM, jopa 256 GB, Wi-Fi 6, 2.5Gb LAN
231,36 €
ALV 0 %:184,35 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
MSI MPG B850 EDGE TI WIFI emolevy AMD B850 Socket AM5 ATX
Pikanäkymä
MSI MPG B850 EDGE TI WIFI emolevy AMD B850 Socket AM5 ATX
247,69 €
ALV 0 %:197,36 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX
Pikanäkymä
ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX
203,57 €
ALV 0 %:162,20 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
ASUS PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX
Pikanäkymä
ASUS PRIME B760M-A D4-CSM Intel B760 LGA 1700 micro ATX
118,15 €
ALV 0 %:94,14 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
MSI PRO B840M-B emolevy AMD B840 AM5-kanta micro ATX
Pikanäkymä
MSI PRO B840M-B emolevy AMD B840 AM5-kanta micro ATX
122,34 €
ALV 0 %:97,48 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
Emolevy ASRock X870 NOVA WIFI — AMD X870, kanta AM5, ATX, 4× DIMM DDR5, 256 GB, Wi‑Fi 7, 2,5 GbE
Pikanäkymä
Emolevy ASRock X870 NOVA WIFI — AMD X870, kanta AM5, ATX, 4× DIMM DDR5, 256 GB, Wi‑Fi 7, 2,5 GbE
310,73 €
ALV 0 %:247,60 €
Lisää ostoskoriin Lisää toivelistaan Vertaa tuotetta
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
* ASUS Control Center Express is only available for CSM motherboards. Please consult your local sales representative for more information

PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.

Enhances system security from bottom to top

ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.

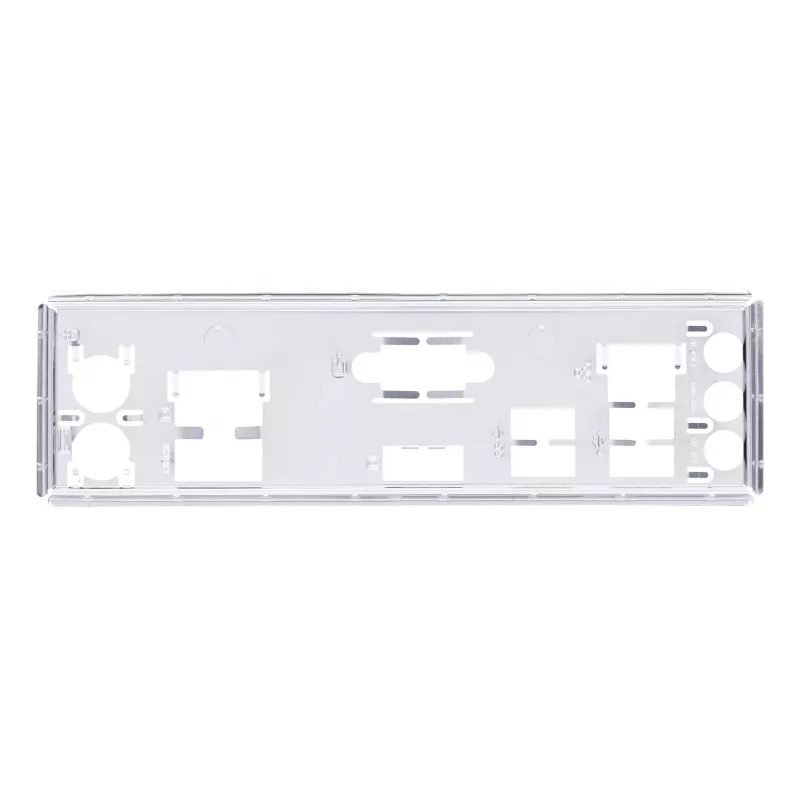

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.+

ASUS MANAGEMENT SUITE
Make IT work more efficiency!

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting

Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

ASUS COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.
*Third-party debug card sold separately.

Box Headers
All USB headers are box style, enabling fast connector installation and preventing pin damage.

Fixed-position Connectors
Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Tärkeimmät ominaisuudet
  • Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
  • Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
  • PC micro ATX Intel B660 Realtek ALC897 7.1 channels
  • DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA RAID support
  • 128 Mbit
  • Gigabit Ethernet Bluetooth 5.2
Tekniset tiedot
12 V:n virtaliitin
Yes
Äänilähtökanavat
7.1 channels
Äänipiiri
Realtek ALC897
Ajurit mukana
Yes
ATX-virtaliitin (24-pinninen)
Yes
BIOS-muistin koko
128 Mbit
Bluetooth
Yes
Bluetooth-versio
5.2
COM-liittimien määrä
1
CPU-tuulettimen liitin
Yes
DisplayPort-liitäntöjen määrä
2
DisplayPort-versio
1.4
DVI-D-liitäntöjen määrä
0
ECC-yhteensopivuus
Non-ECC
Emolevyn muototekijä
micro ATX
Emolevyn piirisarja
Intel B660
Emolevyn piirisarjaperhe
Intel
EPS-virtaliitin (8-pinninen)
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) -liitännät
1
Ethernet-liitännän tyyppi
Gigabit Ethernet
Etupaneelin ääniliitin
Yes
Harmonized System (HS) -koodi
84733020
HDMI-liitäntöjen määrä
1
HDMI-versio
2.1
Integroitu näytönohjain
No
Käyttökohde
PC
Korkeus
51 mm
Kotelotuuletinliittimien määrä
2
Kuulokelähdöt
1
Leveys
244 mm
M.2 (M) -paikkojen määrä
2
Mikrofonitulo
Yes
Muistikanavat
Dual-channel
Muistipaikkojen määrä
4
Muistipaikkojen tyyppi
DIMM

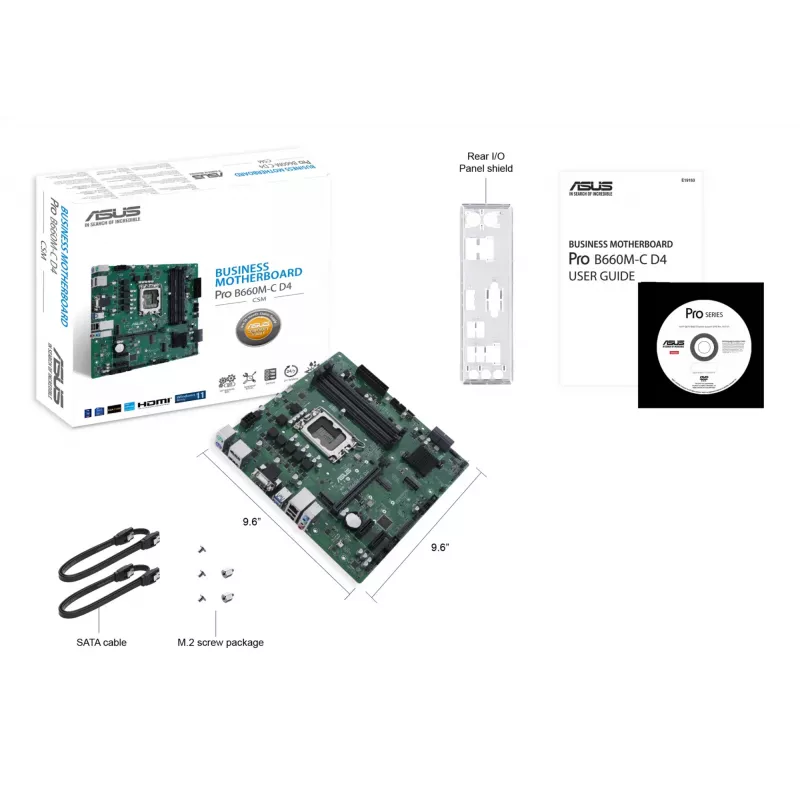

Mukana tulevat kaapelit
SATA
Nopein Wi-Fi-standardi
Not available
Paino
634 g
PCI Express x1 (Gen 3.x) -paikat
2
PCI Express x16 (Gen 4.x) -paikat
1
PCI-paikat
0
Prosessorin kanta
LGA 1700
Prosessorin valmistaja
Intel
PS/2-porttien määrä
2
Puskuroimaton muisti
Yes
RAID-tasot
0, 1, 5, 10
RAID-tuki
Yes
RGB-LED-liitin
Yes
Rinnakkaislaskentatekniikan tuki
Not supported
SATA II -liittimien määrä
0
SATA III -liittimien määrä
4
SATA-liittimien määrä
0
SMP-prosessorien enimmäismäärä
1
Suurin sisäinen muisti
128 GB
Syvyys
244 mm
Tuettujen näyttöjen määrä
3
Tuetut muistin kellotaajuudet
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000 MHz
Tuetut muistityypit
DDR4-SDRAM
Tuetut prosessorikannat
LGA 1700
Tuetut tallennusasemien liitännät
M.2, SATA
Tuetut tallennusasemien tyypit
HDD & SSD
Tuetut Windows-käyttöjärjestelmät
Windows 10 x64, Windows 11 x64
Tuotteen väri
Green
USB 2.0 -liitäntöjen määrä
2
USB 2.0 -liittimet
2
USB 3.2 Gen 1 (3.1 Gen 1) -liittimet
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A -liitäntöjen määrä
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C -liitäntöjen määrä
0
USB 3.2 Gen 2 (3.1 Gen 2) -liittimet
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A -liitäntöjen määrä
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C -liitäntöjen määrä
0
VGA (D-Sub) -liitäntöjen määrä
1
Wi-Fi
No
Yhteensopivat prosessorisarjat
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold

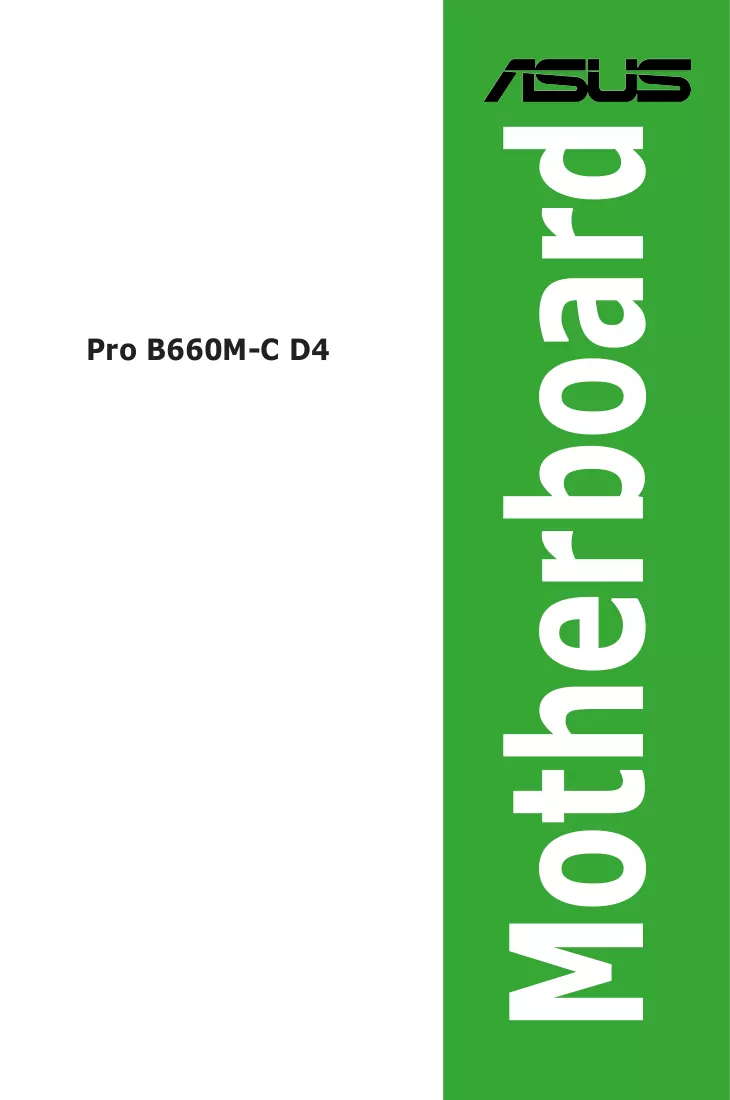

Käyttöohje

Avaa asiakirja

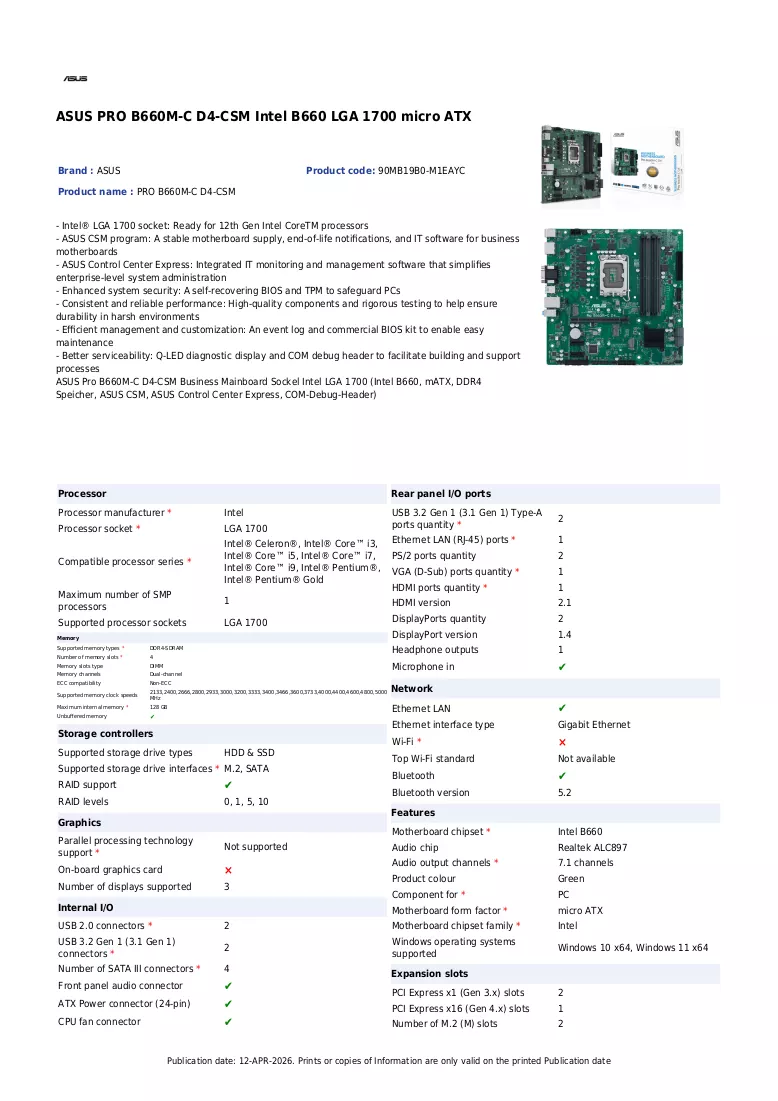

Esite

Avaa asiakirja
