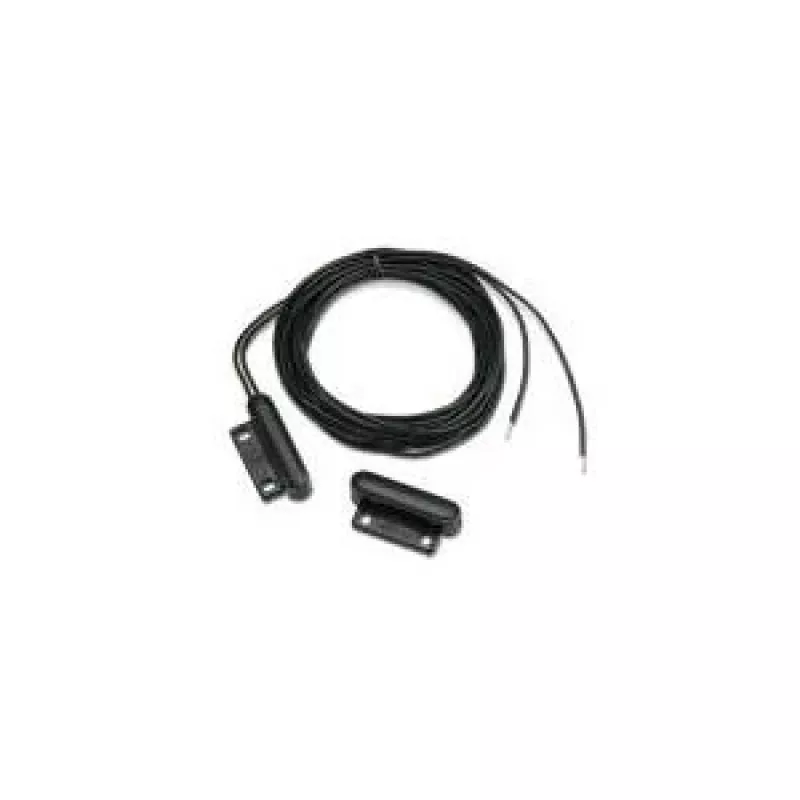

ATEN EA1442 Reed Door Sensor - Rack Door Contact Sensor

The ATEN EA1442 Reed Door Sensor is a reliable magnetic contact sensor designed for monitoring the open/closed status of server rack doors. It integrates seamlessly with ATEN KVM over IP switches, PDUs, and environmental monitoring systems, providing real-time alerts for unauthorized access or improper door closure.

Advantages

Easy installation with adhesive pad or screw mount; hot-pluggable RJ-45 connector for simple integration; durable plastic housing; 3-meter cable for flexible placement; supports both open and closed status indication.

Suitable for

• Server rack door monitoring
• Cabinet door monitoring in data centers
• Integration with ATEN KN series KVM over IP switches
• Use with ATEN PDUs and environmental monitoring systems (e.g., EA1240)

Key specifications

• Sensor Type: Reed Switch
• Detection Method: Magnetic Contact
• Connector Type: RJ-45
• Cable Length: 3 meters (10 ft)
• Mounting Type: Adhesive Pad / Screw Mount
• Operating Temperature: 0 - 50°C (32 - 122°F)
• Storage Temperature: -20 - 60°C (-4 - 140°F)
• Operating Humidity: 0 - 80% RH, Non-condensing
• Housing Material: Plastic
• Color: Black
• Certifications: RoHS, CE, FCC
• Dimensions (Magnet Unit): 50 x 10 x 10 mm (L x W x H)

Recommendations

For optimal performance, pair the EA1442 with ATEN's environmental monitoring solutions to enhance data center security and environmental control.
