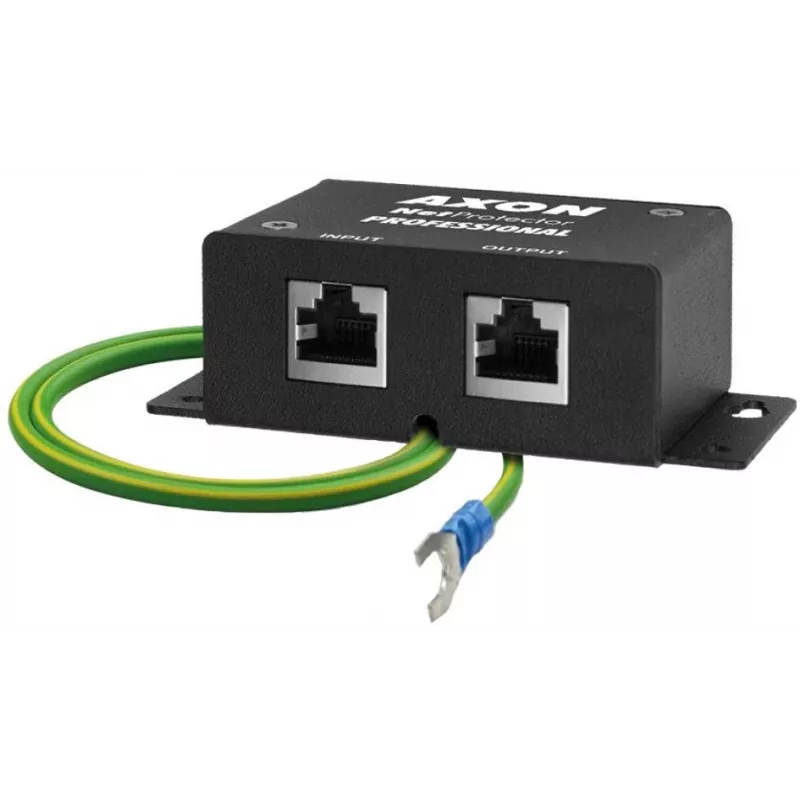

AXON AIRNET Protector Professional ylijännitesuoja AXON-AIR/PROF

The AXON AIRNET Protector Professional (AXON-AIR/PROF) is a high-performance surge protection device designed for outdoor Gigabit Ethernet networks. It provides multi-stage protection against voltage surges and lightning-induced transients, ensuring reliable operation of PoE-powered devices such as IP cameras, access points, and outdoor switches.

Advantages

Robust multi-stage protection (GDT + TVS diodes) with a maximum discharge current of 20 kA (common mode) and 10 kA (differential mode). Supports all PoE standards (PoE, PoE+, PoE++) up to 60W. IP67-rated aluminum housing for harsh outdoor environments. Ultra-fast response time <1 ns ensures minimal signal degradation.

Suitable for

• Outdoor PoE cameras and NVRs
• Wireless access points and bridges
• Industrial Ethernet equipment
• Remote monitoring stations

Key specifications

• Network Compatibility: Gigabit Ethernet (10/100/1000 Mbps)
• PoE Support: PoE, PoE+, PoE++
• Protection Type: Multi-stage (GDT + TVS diodes)
• Max Discharge Current (Imax): 20 kA (8/20 µs, common mode); 10 kA (8/20 µs, differential mode)
• Nominal Discharge Current (In): 5 kA (8/20 µs)
• Voltage Protection Level (Up): Line-Line: <60 V; Line-Ground: <600 V
• Connectors: 2x RJ45 Shielded
• Ingress Protection: IP67
• Housing Material: Aluminum
• Mounting: Wall mount / Pole mount (with optional bracket)
• Operating Temperature: -40°C to +80°C
• Grounding: M4 Screw Terminal
• Impedance: 100 Ohm
• Insertion Loss: <0.3 dB (at 100 MHz)
• Return Loss: >15 dB (at 100 MHz)
• Response Time: <1 ns
• Standards: IEC 61643-21, EN 61000-4-5

Recommendations

For optimal protection, ensure proper grounding via the M4 screw terminal. Use shielded Cat6a or higher cables to maintain signal integrity. The device is designed for outdoor use but should be installed in a location with minimal direct exposure to water jets.
