beyerdynamic TG D71 rajapintakondensaattorimikrofoni

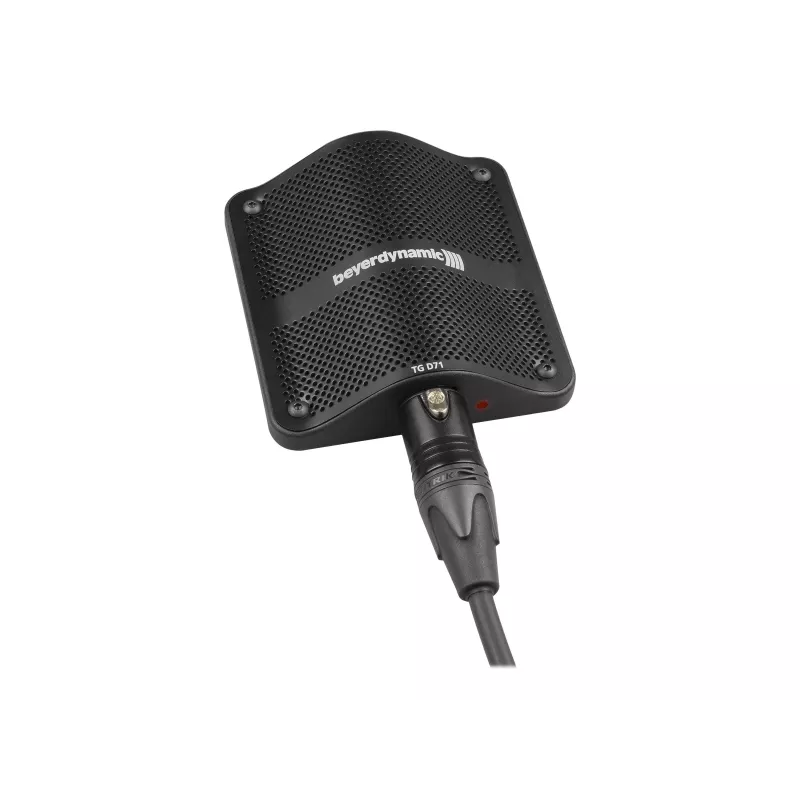

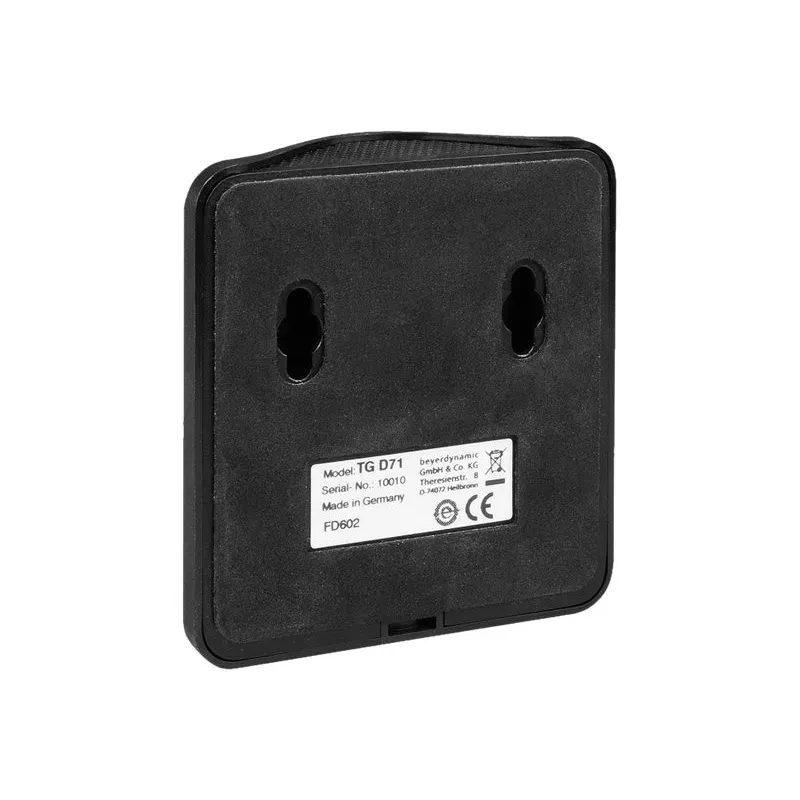

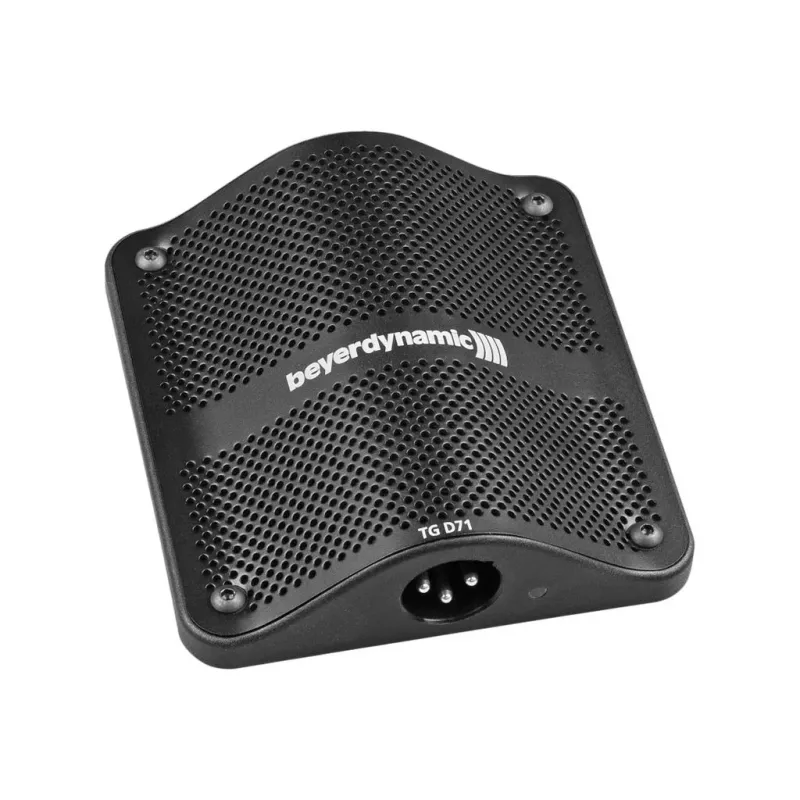

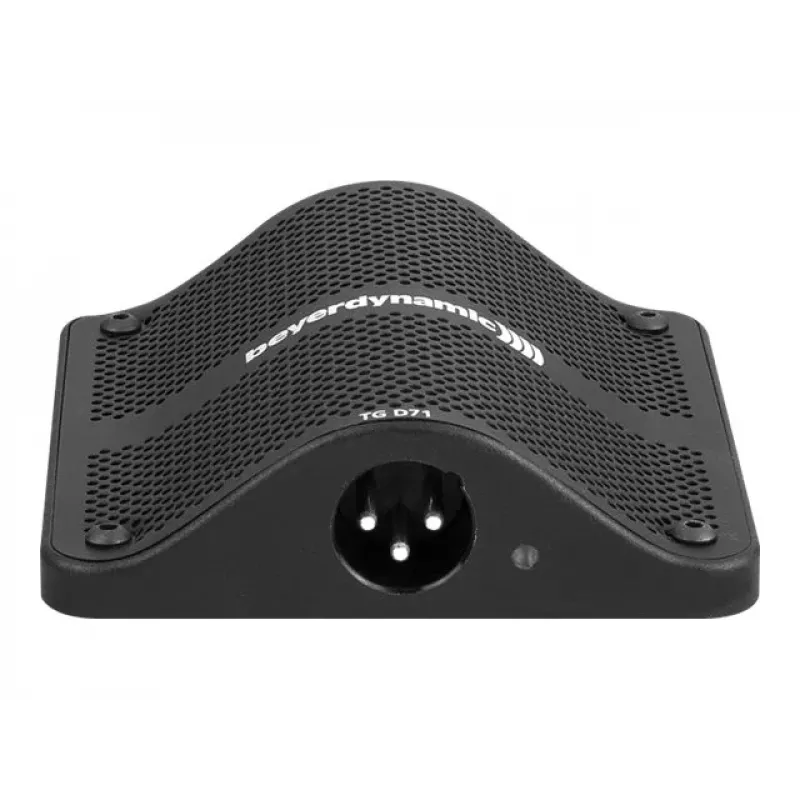

The beyerdynamic TG D71 is a high-quality boundary condenser microphone designed for professional audio applications. Featuring a half-cardioid polar pattern, it excels in capturing clear and natural sound from a wide area, making it ideal for use on stages, in conferences, and for recording instruments such as kick drums, percussion, and pianos. Its robust metal housing and non-slip rubber base ensure reliable performance in demanding environments.

Advantages

The TG D71 offers exceptional audio clarity with a frequency response of 20 Hz to 20 kHz and a high maximum SPL of 140 dB. Its integrated pre-amplifier delivers a strong output signal, while the half-cardioid pattern provides excellent feedback rejection and off-axis sound attenuation. The microphone operates on standard phantom power (P12-P48) and consumes only 4.7 mA, making it compatible with most mixing consoles and audio interfaces.

Suitable for

• Kick drum and percussion recording
• Piano and acoustic instrument miking
• Stage and theater sound reinforcement
• Conference and presentation systems
• Boundary layer applications on floors or tables

Key specifications

• Transducer type: Condenser (electret)
• Polar pattern: Half-cardioid (hemispherical)
• Frequency response: 20 Hz - 20 kHz
• Nominal impedance: 200 Ω
• Open circuit voltage: 1.8 mV/Pa (-55 dBV)
• Max SPL: 140 dB SPL
• Signal-to-noise ratio: 67 dB (A-weighted)
• Equivalent noise level: 27 dB (A-weighted)
• Connector: XLR 3-pin male
• Power supply: Phantom power P12 - P48
• Current consumption: 4.7 mA
• Housing material: Robust metal
• Colour: Black

Recommendations

For optimal performance, use the TG D71 with a high-quality phantom power source and position it on a flat, stable surface. The non-slip rubber base ensures secure placement even on polished floors. Ideal for both live sound and studio recording, this microphone delivers professional results in a compact form factor.
