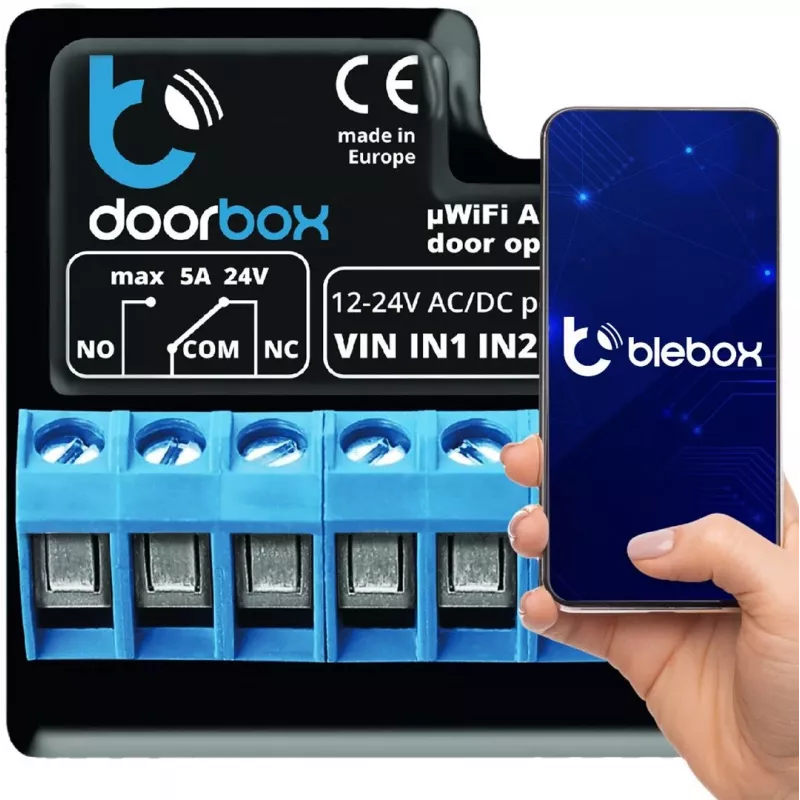

BLEBOX DoorBox - portin ja oven ohjain

The BLEBOX DoorBox is a versatile wicket and door controller designed for remote management of electric strikes, electromagnetic locks, and gate openers. With Wi-Fi connectivity and support for the wBox app, Google Assistant, and Amazon Alexa, it offers convenient control and monitoring from anywhere.

Advantages

Easy to install in standard electrical boxes, the DoorBox provides secure TLS 1.2 encrypted communication, timed opening, auto-close, and event history. Its potential-free relay output and two digital inputs allow integration with buttons, reed switches, and various locking mechanisms.

Suitable for

• Controlling wicket gates, doors, and access points in residential and commercial settings
• Integration with smart home systems via MQTT, REST API, and voice assistants
• Remote monitoring of door/gate status (requires external sensor)

Key specifications

• Wireless Protocol: Wi-Fi 2.4GHz b/g/n
• Power Supply: 12-24V DC or 12-24V AC
• Max Output Current: 3A
• Max Output Power: 72W (at 24V DC)
• Output: 1x Potential-free relay contact (NO/NC)
• Inputs: 2x Digital inputs
• Operating Temperature: -20°C to 50°C
• Protection Class: IP20
• Housing Material: ABS Plastic
• Mounting: Standard electrical box (Ø60mm) or surface mount

Recommendations

Ensure your Wi-Fi network is 2.4GHz and the power supply matches the requirements. For outdoor use, consider additional weatherproofing.
