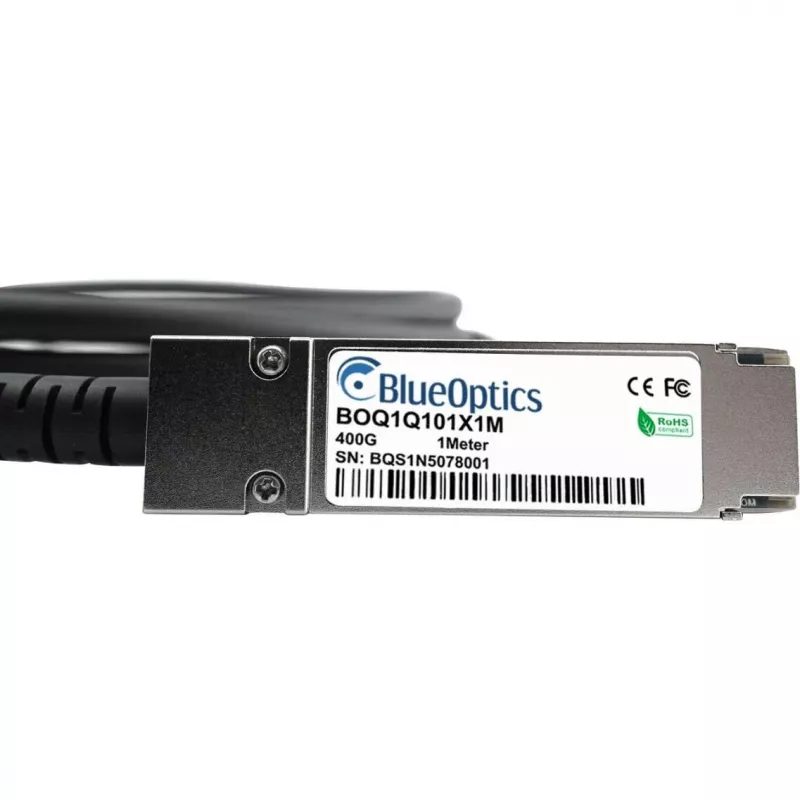

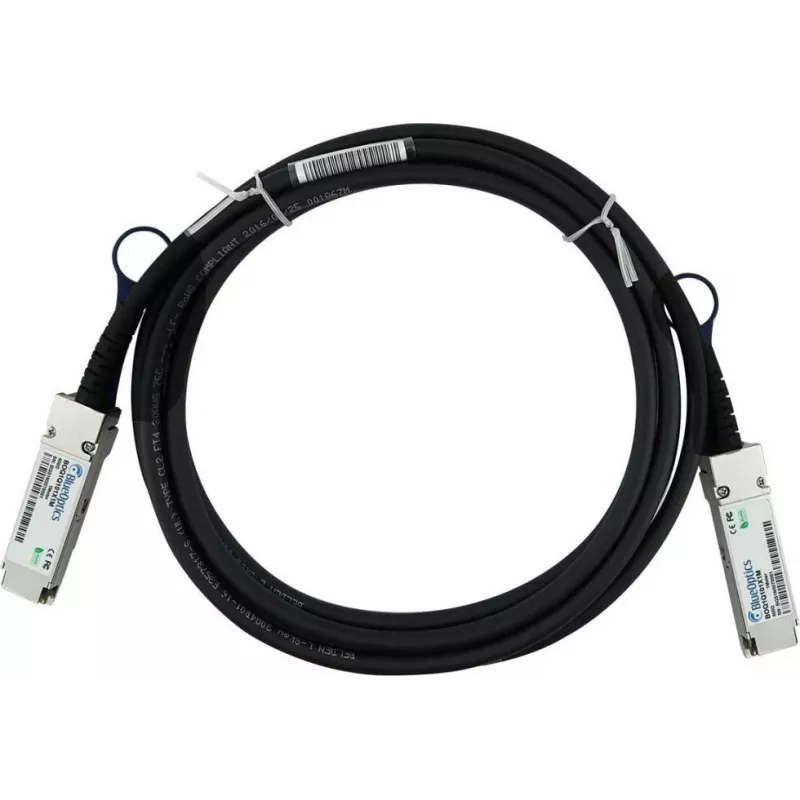

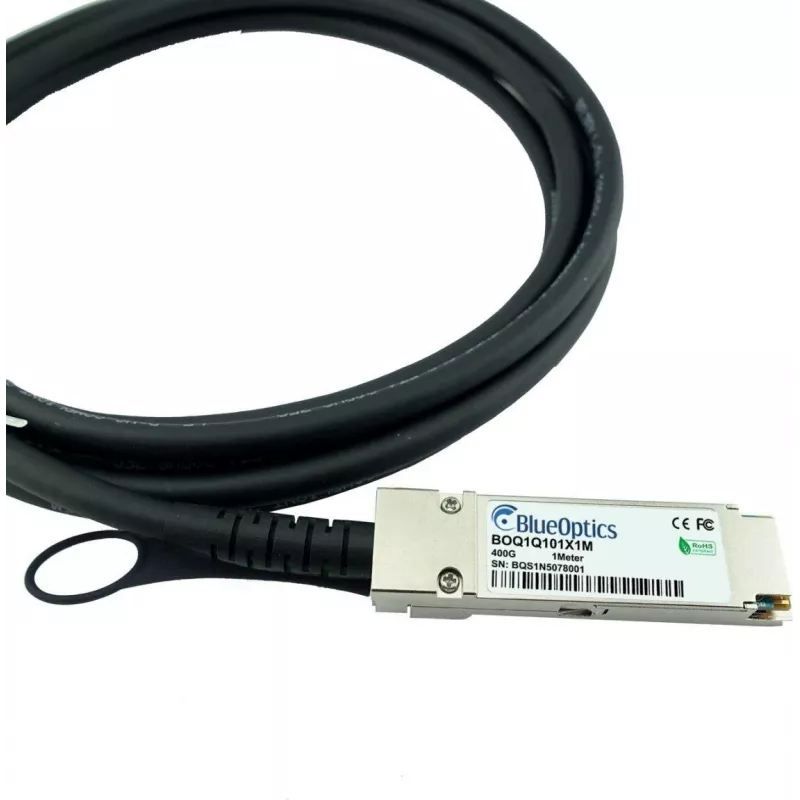

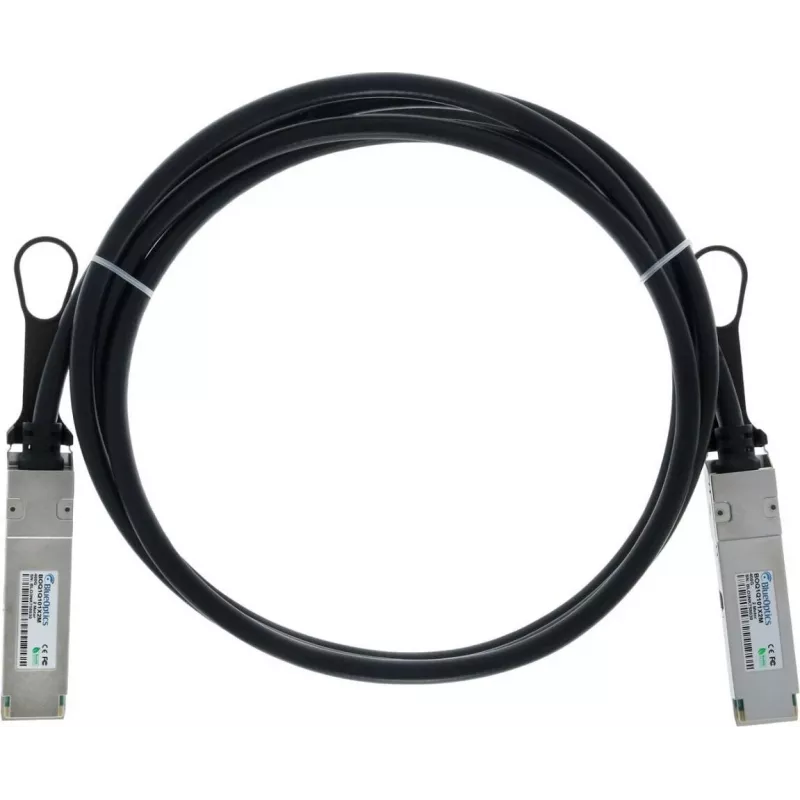

BlueLAN passiivinen QSFP112 Direct Attach -kaapeli, 400GBASE Ethernet, Infiniband, 1 metri (BOQ1Q101X1M-BL)

This passive QSFP112 direct attach cable delivers 400 Gbps over copper twinax, making it a straightforward choice for short-reach links in dense data center racks. Unlike active optical cables, it draws no power and adds no latency, which can be an advantage when connecting switches and servers within a row.

Highlights

• QSFP112 to QSFP112 connectors, 1 meter length
• Supports 400GBASE Ethernet and Infiniband
• Passive copper twinax design: zero power consumption
• Hot-pluggable for quick installation

In daily use

The blue jacket helps with port identification in high-density environments. The cable is compliant with IEEE 802.3 and IBTA standards, ensuring interoperability with QSFP112 ports on network switches, servers, and HPC systems.

Full specifications

• Cable Type: Direct Attach Cable (DAC)
• Connector Type (End A): QSFP112
• Connector Type (End B): QSFP112
• Data Rate: 400 Gbps
• Supported Protocols: 400GBASE Ethernet, Infiniband
• Cable Length: 1 Meter
• Cable Material: Copper Twinax
• Transceiver Type: Passive
• Form Factor: QSFP112
• Hot-Pluggable: Yes
• Power Consumption: 0W (Passive)
• Application: Data Center Interconnect, High-Performance Computing (HPC), Network Switches, Servers
• Compatibility: QSFP112 Ports
• Compliance: IEEE 802.3 (Ethernet), IBTA (Infiniband)
• Jacket Color: Blue
• RoHS Compliant: Yes
• Product Family: BlueLAN passives

Final note

A reliable, low-cost option for 400G short-reach connectivity without the complexity of optical transceivers.
