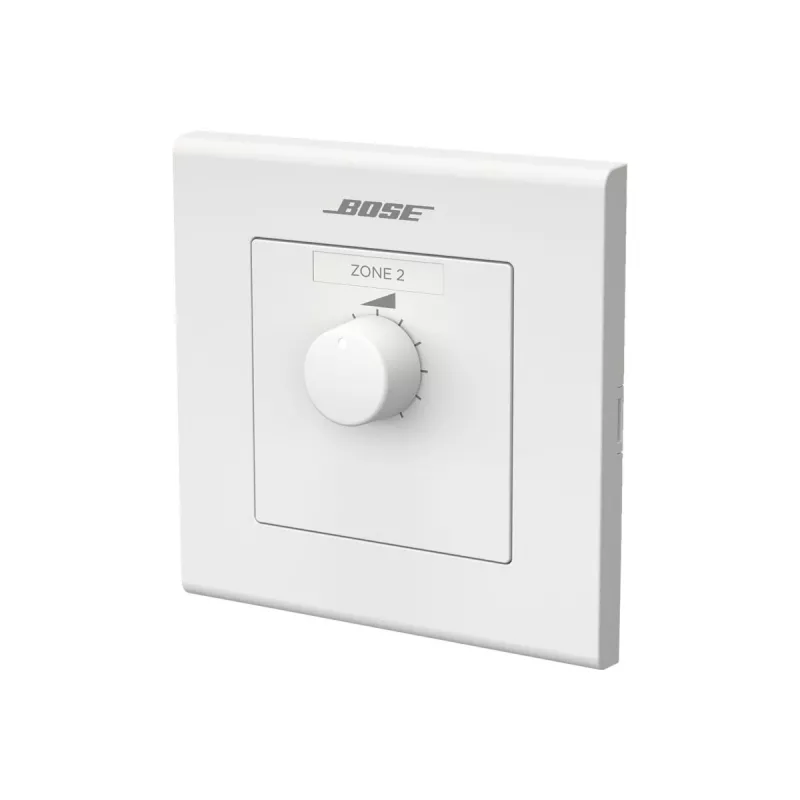

Bose ControlCenter CC-1 vyöhykeohjain ohjauspaneeli johdollinen valkoinen

The Bose ControlCenter CC-1 Zone Controller is a wired control panel designed for seamless integration with Bose FreeSpace amplifiers and ControlSpace processors. It provides intuitive volume control and source selection via a rotary encoder with push button, making it ideal for commercial audio systems in restaurants, retail spaces, and offices.

Advantages

Easy single-gang wall mount installation, powered directly from the ControlCenter bus, and supports cable runs up to 152 meters using standard CAT 5/6 cabling. The high-impact plastic construction ensures durability in demanding environments.

Suitable for

• Commercial audio zones requiring remote control
• Integration with Bose FreeSpace and ControlSpace systems
• Wall-mounted volume and source management

Key specifications

• Product Type: Zone Controller / Remote Control Panel
• Control Functions: Volume Control, Source Selection
• Interface: Rotary Encoder with Push Button
• Connectivity: RJ-45 (ControlCenter Bus)
• Wiring: Wired
• Compatibility: Bose FreeSpace Amplifiers, Bose ControlSpace Processors
• Mounting: Single-Gang Wall Box (US Standard)
• Color: White
• Power Source: Powered by Host Device (ControlCenter Bus)
• Max Cable Length: 152 m (500 ft)
• Cable Requirement: CAT 5/6
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Material: High-Impact Plastic
• System Integration: Bose ControlCenter Series
• Number of Controls: 1 (multifunction)

Recommendations

For optimal performance, use with Bose ControlCenter compatible amplifiers and processors. Ensure proper CAT 5/6 cabling and single-gang wall box installation.
