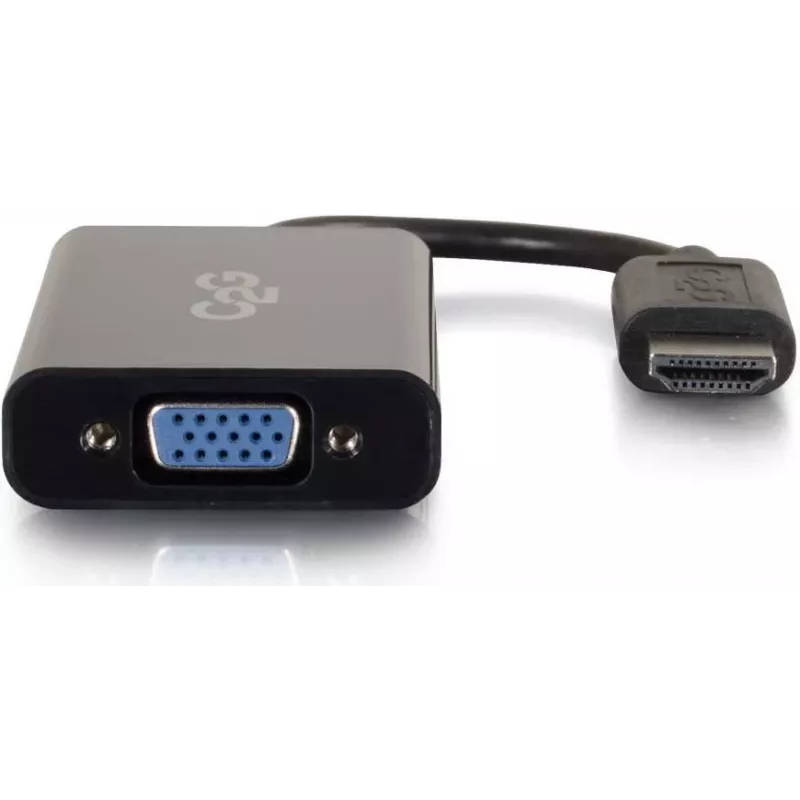

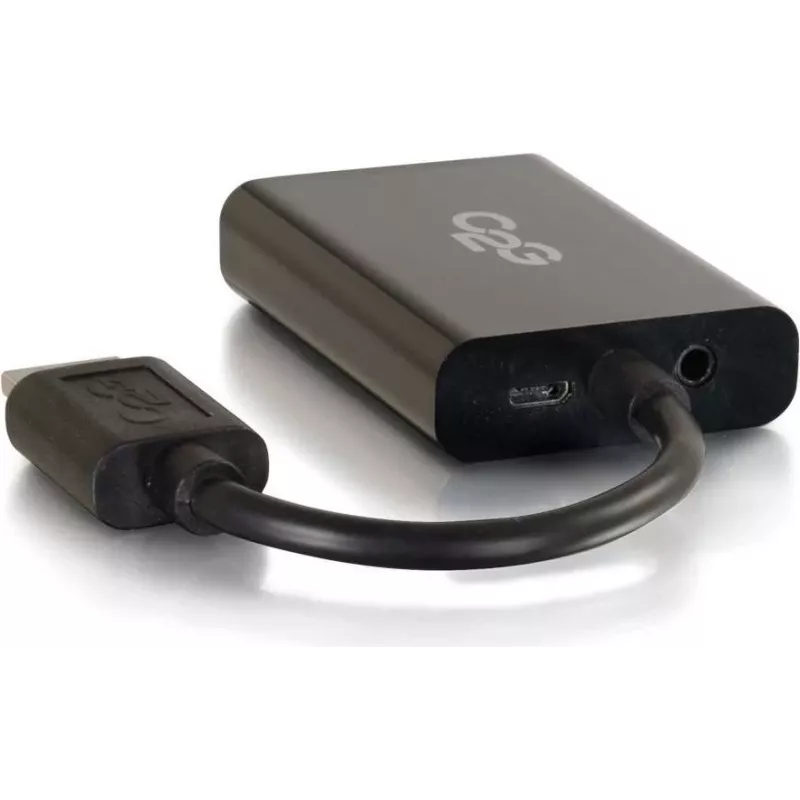

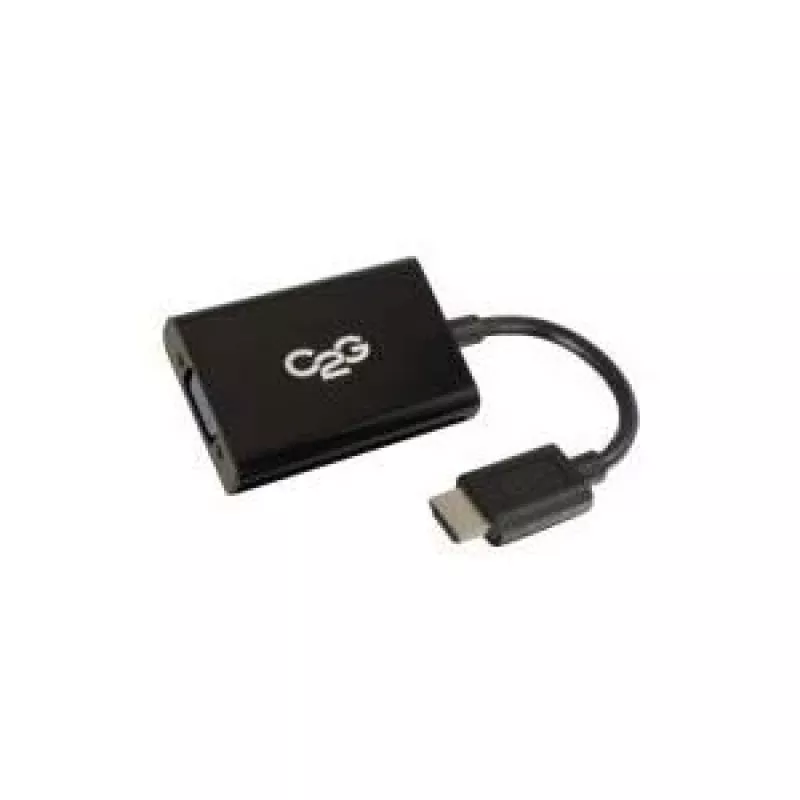

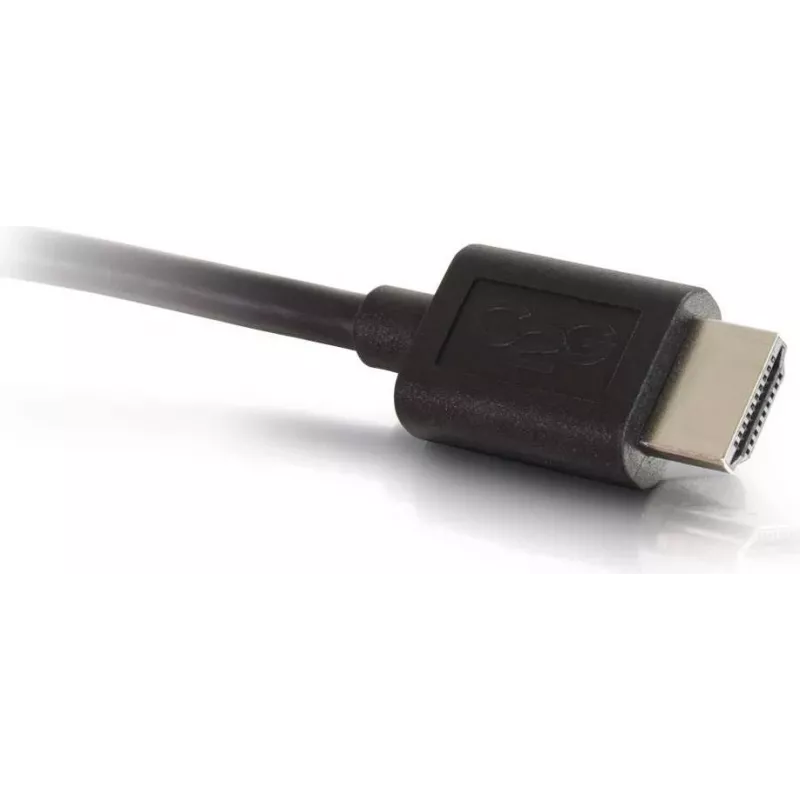

C2G HDMI–VGA-adapteri virtalähteellä ja 3,5 mm äänellä 80501

Connect an HDMI source to a legacy VGA display while preserving audio with this active converter dongle. It solves the problem of interfacing modern laptops, desktops, or media players with older monitors and projectors that only accept VGA input.

Who is it for

Users who need to connect HDMI-equipped devices to VGA-only displays in conference rooms, classrooms, or home offices. Ideal for presentations, extending desktops, or repurposing existing VGA monitors.

Main features

• Converts HDMI digital signal to VGA analog video with support for resolutions up to 1920x1080 at 60Hz.
• Includes a 3.5mm stereo audio output to extract audio from HDMI and send to speakers or headphones.
• Active converter with HDCP support ensures compatibility with protected content.
• Powered via USB Micro-B port; can be bus-powered or use an optional external USB power source for stable operation.
• Plug and play, no drivers required.

Specifications

• Input: HDMI Male
• Output Video: VGA Female
• Output Audio: 3.5mm Stereo Female
• Power Input: USB Micro-B Female
• Max Resolution: 1920x1080 @ 60Hz
• HDCP Support: Yes
• Converter Type: Active
• Colour: Black
• Housing Material: ABS Plastic
• Compatibility: Laptops, Desktops, Projectors, Monitors
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 80°C
• Humidity: 10% to 85% RH (non-condensing)

Tips

For best results, use a high-quality HDMI cable and ensure the VGA cable is securely connected. If the display flickers or loses signal, connect a USB power source to the dongle.
