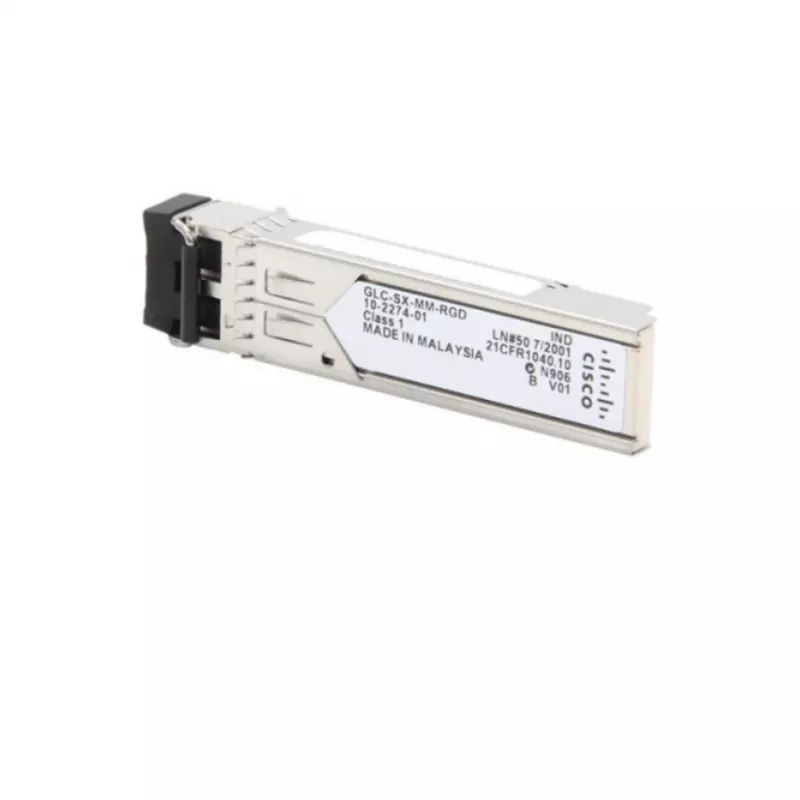

Cisco GLC-SX-MM-RGD 1000BASE-SX SFP Multi-Mode Rugged lähetin-vastaanotin

The Cisco GLC-SX-MM-RGD is a ruggedized SFP (Small Form-Factor Pluggable) transceiver designed for reliable 1 Gbps data transmission over multi-mode fiber. It is ideal for industrial and harsh environments where standard SFPs may not withstand extreme temperatures or vibration. This module complies with the 1000BASE-SX standard and supports distances up to 550 m over 50/125 µm multi-mode fiber.

Advantages

Ruggedized design ensures operation in extended temperature ranges (0 to 70 °C) and resistance to shock and vibration. Hot-swappable for easy installation and maintenance. Digital Optical Monitoring (DOM) provides real-time diagnostics for proactive network management. Low power consumption (<1 W) reduces energy costs.

Suitable for

• Industrial Ethernet networks
• Outdoor or harsh environment deployments
• Enterprise and data center fiber optic connections
• Video surveillance and remote monitoring

Key specifications

• Data Transfer Rate: 1 Gbps
• Interface: 1000BASE-SX
• Wavelength: 850 nm
• Connector: LC Duplex
• Fiber Type: Multi-Mode Fiber (MMF)
• Max Distance (50/125 µm): 550 m
• Max Distance (62.5/125 µm): 220 m
• Digital Optical Monitoring (DOM): Yes
• Hot-Swappable: Yes
• Operating Temperature: 0 to 70 °C
• Power Consumption: <1 W
• Standards: IEEE 802.3z
• MTBF: 2,000,000 hours

Recommendations

For optimal performance, pair this transceiver with Cisco switches and routers that support SFP modules. Use high-quality LC duplex patch cables with multi-mode fiber (OM2/OM3/OM4). Ensure proper handling and avoid exceeding the specified temperature range.
