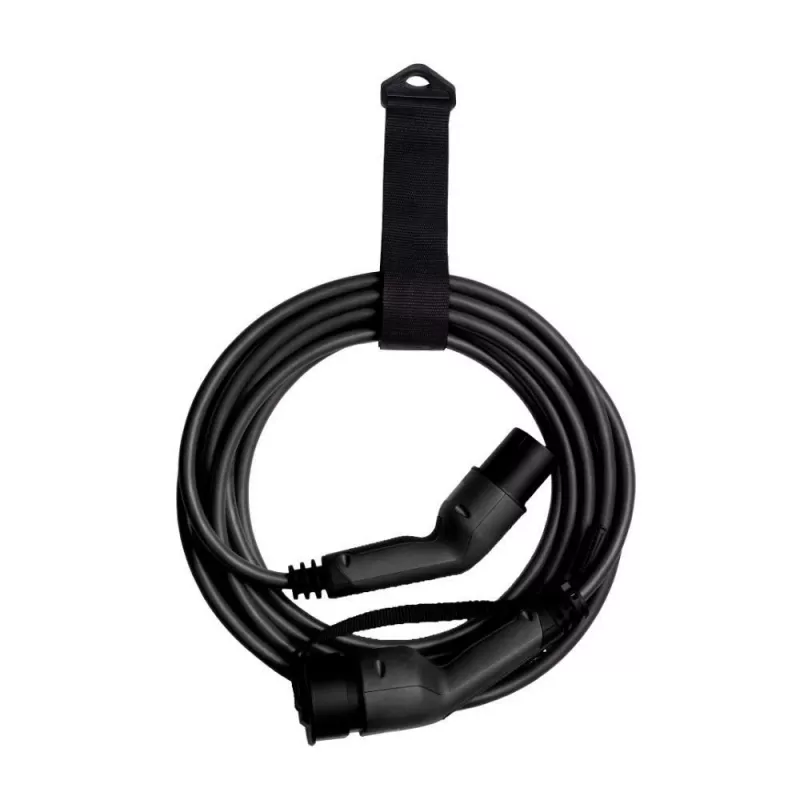

DEFA eConnect musta M3T2 3P 32A 5M

For the electric vehicle driver who demands both performance and durability, the DEFA eConnect Black M3T2 3P 32A 5M is the go-to Mode 3 charging cable. Whether topping up at a public Type 2 charge point or connecting to a home wallbox, this 5-metre cable delivers a secure and efficient power transfer. With its three-phase capability, it enables charging speeds up to 22 kW, significantly reducing downtime.

Key specifications

• Charging Mode: Mode 3
• Connector Type (Vehicle Side): Type 2 (IEC 62196-2)
• Connector Type (Infrastructure Side): Type 2 (IEC 62196-2)
• Number of Phases: 3-Phase
• Maximum Current: 32 A
• Maximum Charging Power: 22 kW
• Cable Length: 5 metres
• Cable Colour: Black
• Operating Temperature Range: -30°C to +50°C
• Storage Temperature Range: -40°C to +80°C
• Ingress Protection (IP) Rating: IP54 (when connected)
• Cable Material: TPU (Thermoplastic Polyurethane)
• Voltage Rating: 400V AC
• Cable Cross-section: 5 x 6mm² + 1 x 0.5mm²
• Standards Compliance: IEC 62196-2, EN 50620
• UV Resistant: Yes
• Flame Retardant: Yes
• Ergonomic Connector Design: Yes
• Certifications: CE, TUV

Why choose it

The DEFA eConnect cable stands out thanks to its robust build quality and ergonomic connector design. It is UV-resistant and flame-retardant, ensuring long-lasting performance even in demanding conditions. The TPU jacket offers flexibility and resistance to abrasion, making it a dependable choice for daily use. The integrated control pilot ensures seamless communication between your vehicle and the charging station, while the IP54 rating protects against dust and splashing water when connected.

Ideal use cases

• Home charging with a Type 2 wallbox
• Public charging stations with Type 2 sockets
• Fleet and workplace charging installations
• Mobile charging kit for travel

Good to know

This cable supports both single-phase and three-phase charging, automatically adapting to the power source. The 5 x 6mm² conductors ensure low resistance and efficient power transfer, while the extra 0.5mm² pilot conductor supports reliable communication. It is compatible with all electric vehicles and charging stations equipped with a Type 2 socket, making it a versatile addition to your EV toolkit. Store it in its natural coiled state when not in use to preserve the cable's flexibility.
