DeLOCK 62945 liitäntäkortti sisäinen M.2 PCIe-adapteri

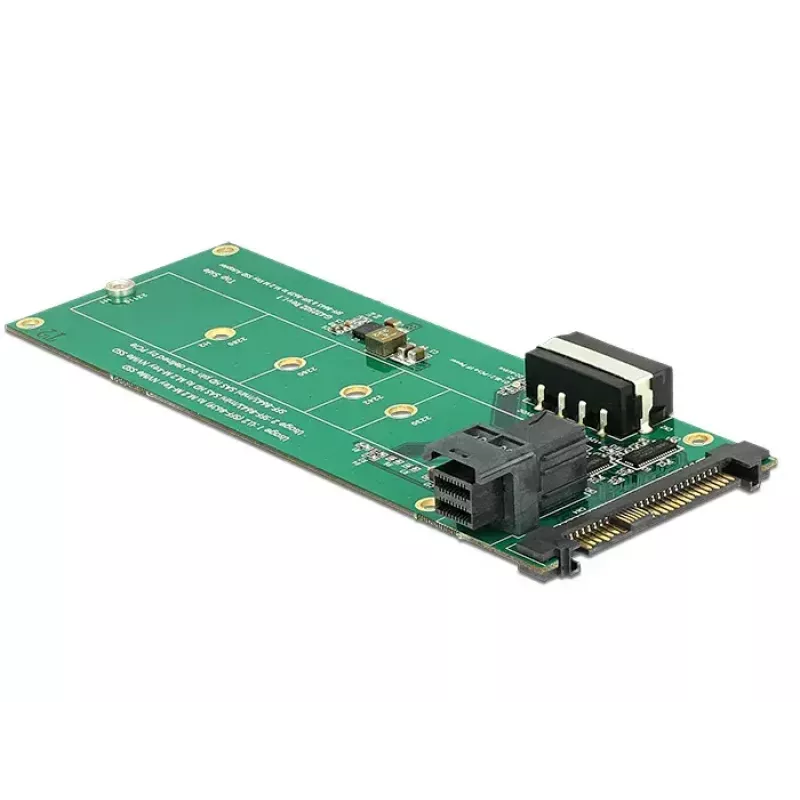

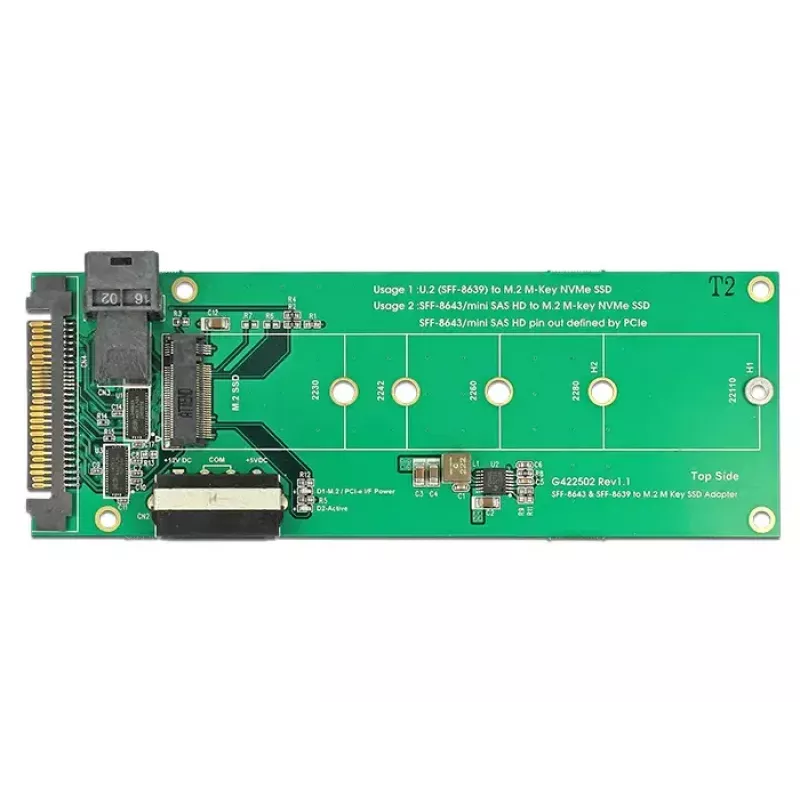

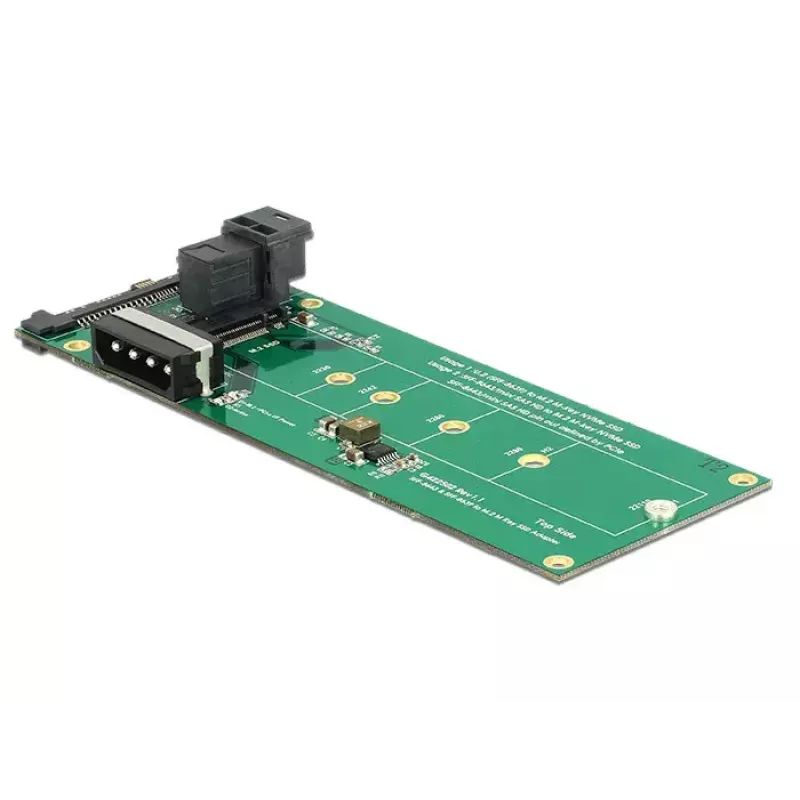

The DeLOCK 62945 internal M.2 PCIe adapter allows installation of an M.2 SSD in sizes 22110, 2280, 2260, 2242 and 2230 into a system via a U.2 interface. The card installs internally and provides an M.2 output while using the host PCIe interface. Its compact PCB design (52 mm × 145 mm × 16 mm) and standard box packaging make it suitable for adding M.2 connectivity to compatible systems.

Advantages

The adapter supports multiple M.2 module lengths (22110, 2280, 2260, 2242, 2230), uses a PCIe host interface for high-speed data transfer, and connects through U.2 SFF-8639 or U.2 SFF-8643 ports for internal installation. The product is compact, internally mounted and comes in a boxed package.

Suitable for

• Adding an M.2 SSD to a system with U.2 (SFF-8639 / SFF-8643) internal ports
• Systems requiring internal PCIe to M.2 conversion
• Upgrading storage options in servers or workstations with available PCIe and U.2 interfaces

Key specifications

• Model: DeLOCK 62945
• Host interface: PCIe
• Output interface: M.2
• Supported M.2 lengths: 22110, 2280, 2260, 2242, 2230
• U.2 interfaces supported: SFF-8639 and SFF-8643
• Dimensions: 52 mm (W) × 145 mm (D) × 16 mm (H)
• Internal installation: Yes
• Colour: Green
• Packaging: Box

How to use

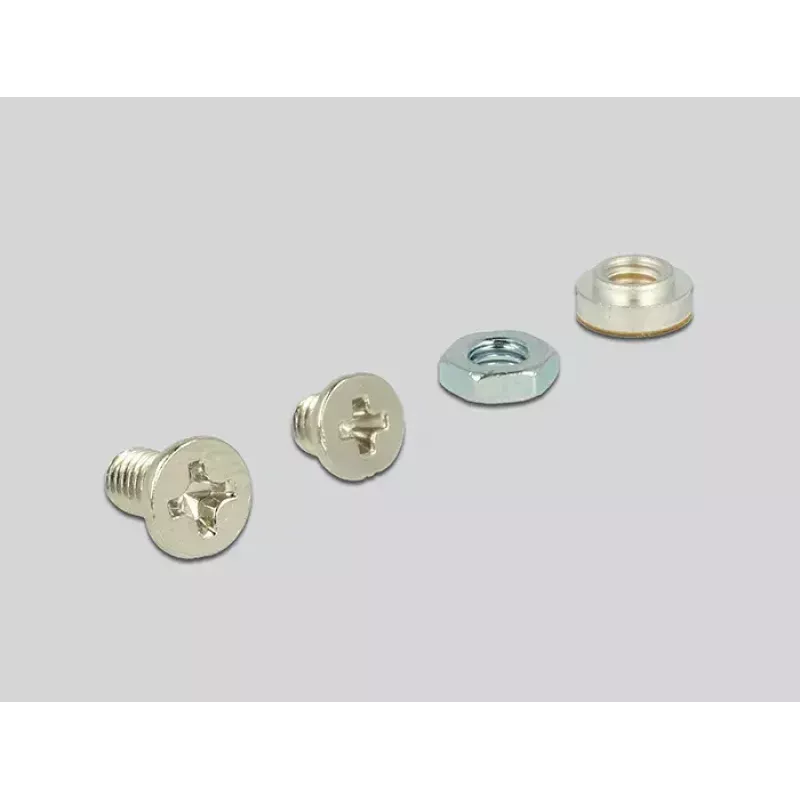

Install the adapter internally into the system and connect it to the host via the PCIe slot or U.2 internal connector as applicable. Mount the chosen M.2 SSD (22110, 2280, 2260, 2242 or 2230) into the M.2 slot on the adapter and secure it according to the module length. Ensure correct alignment with the M.2 key and fix the drive with the supplied standoff or screw. Reassemble the system and verify the drive is recognized in the operating system.

Recommendations

Before installation, power off and unplug the system. Use an anti-static wrist strap or other ESD precautions when handling the adapter and M.2 SSD. Confirm motherboard and chassis compatibility with internal U.2/PCIe connections and check that drivers or firmware are up to date for optimal performance.
