DeLOCK M12-adapteri A-koodattu 8-napainen pistoke RJ45-liittimeen suora

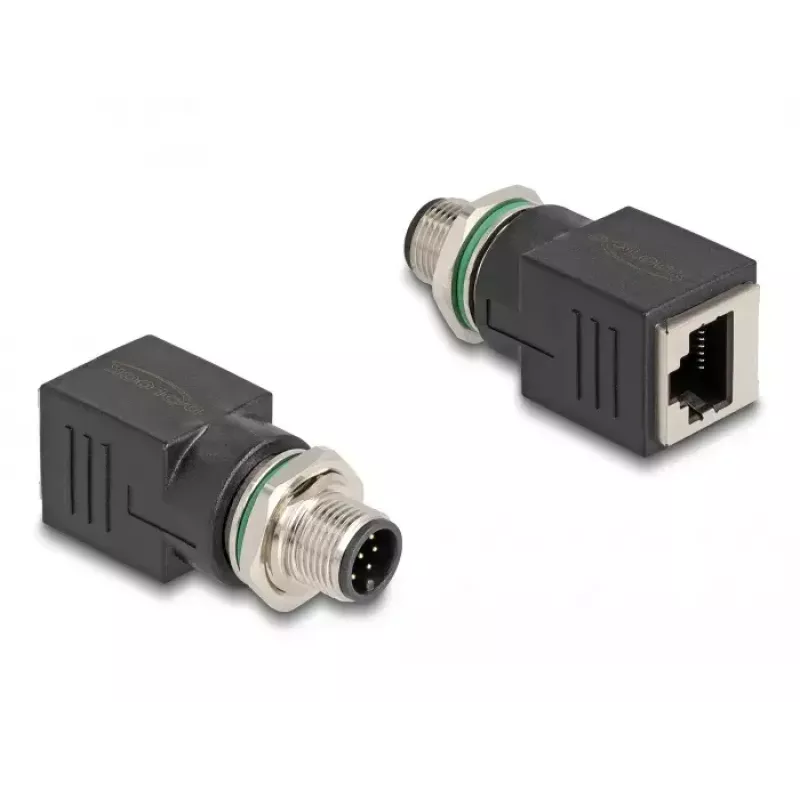

This industrial Ethernet adapter by Delock provides a compact connection between an A-coded M12 8-pin male connector and a straight RJ45 jack. It is designed for reliable data transmission in machine control and automation applications and has gold-plated contacts for improved conductivity and durability. Its small form factor makes the adapter suitable for installation in switch cabinets and integration into existing network structures.

Advantages

The adapter offers a standardized A-coded M12 8-pin interface to a common RJ45 port, ensuring compatibility with industrial devices that use M12 connectors. Gold-plated contacts increase contact reliability and corrosion resistance. The compact and robust construction allows space-saving installation in control cabinets and industrial environments.

Suitable for

• Connecting sensors, actuators or controllers with M12 A-coded connectors to Ethernet networks
• Machine control and factory automation setups
• Integration of field devices into existing RJ45-based network infrastructure

Key specifications

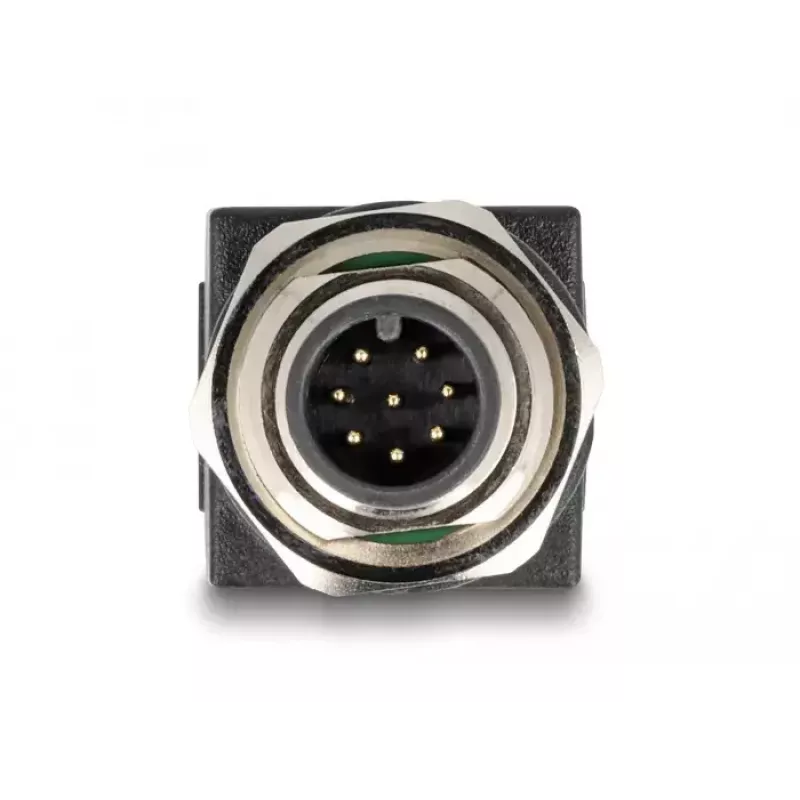

• Connector 1: A-coded M12, 8 pin, male
• Connector 2: RJ-45, straight jack
• Contact plating: gold-plated contacts
• Colour: Black
• Brand: DELOCK, MPN: 60063, EAN: 4043619600632

How to use

Mount the M12 male connector to the corresponding A-coded M12 female socket on the device and insert a standard Ethernet cable into the RJ45 jack. Ensure correct alignment of the A-coding when connecting the M12 plug, and secure any cable glands or fastening elements in the switch cabinet to avoid mechanical strain on the adapter. Verify network settings and link LEDs on connected equipment to confirm a successful connection.

Recommendations

Use the adapter within the environmental and electrical limits of connected devices; avoid exposure to excessive moisture or mechanical stress. For fixed installations in switch cabinets, route and secure cables to prevent tension on the M12 and RJ45 connectors. Regularly inspect contacts for contamination and replace the adapter if corrosion or damage is visible.
