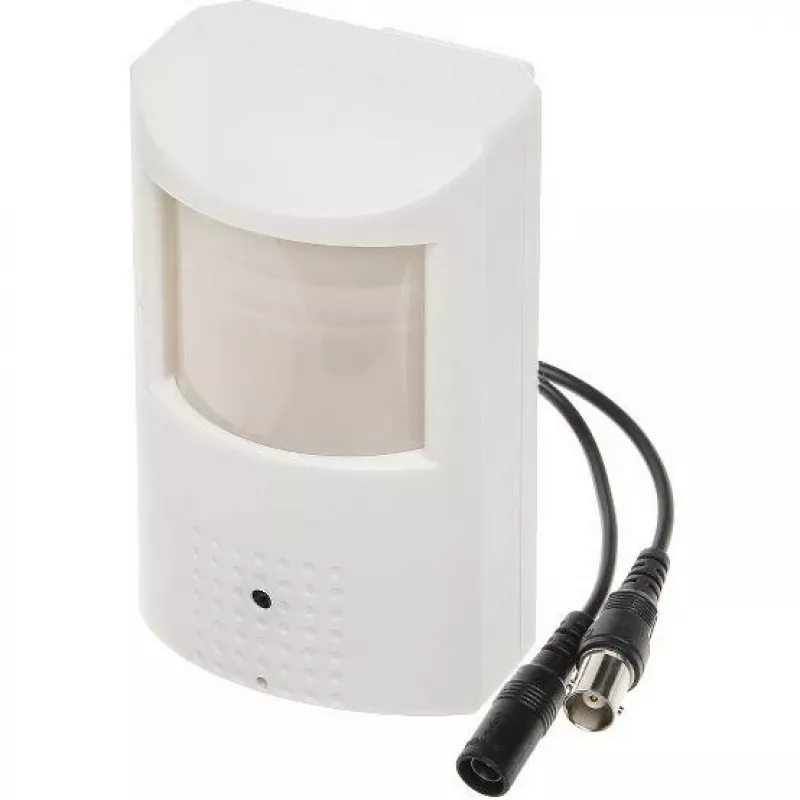

DELTA 4-in-1 kamera liiketunnistimella APTI-H50YK-37

The DELTA 4-in-1 Camera with Motion Sensor APTI-H50YK-37 is a versatile surveillance solution designed for both indoor and outdoor use. Featuring a 5 Megapixel CMOS sensor, this camera delivers high-resolution video in multiple output modes including AHD, HD-TVI, HD-CVI, and CVBS, ensuring compatibility with a wide range of DVRs and monitoring systems. With built-in motion detection and infrared night vision up to 30 meters, it provides reliable security around the clock. The rugged metal housing and IP67 rating make it resistant to dust and water, ideal for challenging environments.

Advantages

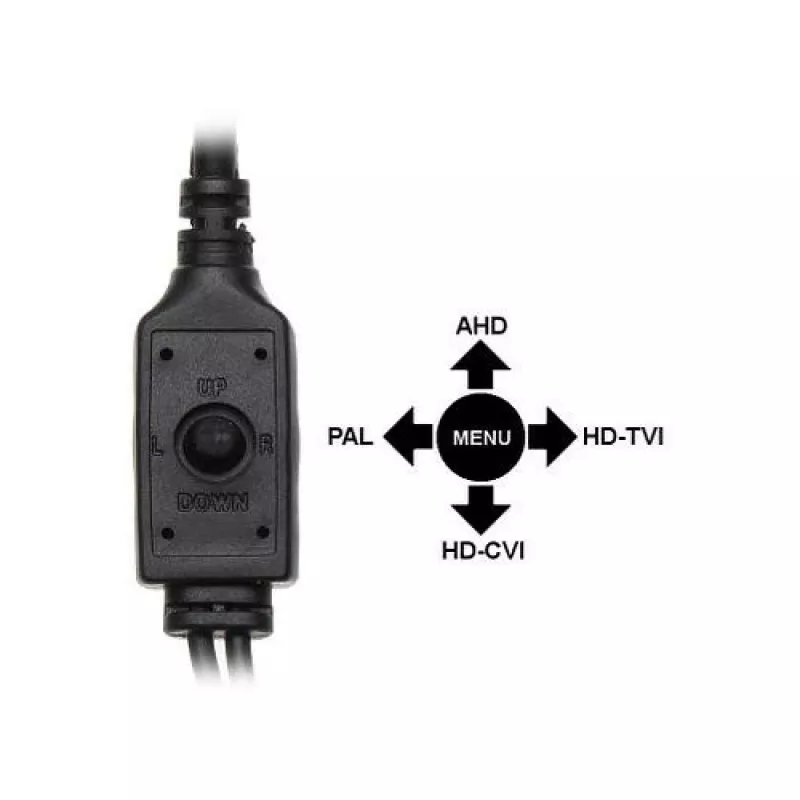

This camera offers exceptional flexibility with its 4-in-1 video output, allowing seamless integration into existing analog or HD systems. The 5MP resolution captures fine details, while the 3.6mm fixed lens provides an 85° horizontal field of view, perfect for monitoring entry points, corridors, or parking areas. Motion detection triggers alerts, and the OSD menu via coaxial control enables easy on-site adjustments. The durable construction ensures long-term reliability in outdoor conditions.

Suitable for

• Home security surveillance
• Small business monitoring
• Warehouse and storage areas
• Parking lots and driveways
• Retail stores and offices

Key specifications

• Image Sensor: 1/2.7" CMOS, 5 Megapixel (2592x1944)
• Video Output: AHD, HD-TVI, HD-CVI, CVBS (4-in-1)
• Frame Rate: 5MP@20fps, 4MP@25/30fps, 2MP@25/30fps
• Lens: Fixed 3.6mm, FOV 85° (Horizontal)
• Night Vision: IR LEDs, up to 30m range
• Minimum Illumination: 0.01 Lux (Color), 0 Lux with IR
• Motion Detection: Yes
• Noise Reduction: 2D/3D DNR
• WDR: DWDR (Digital WDR)
• Housing Material: Metal
• Ingress Protection: IP67
• Power Supply: DC 12V, Max 4W
• Operating Temperature: -20°C to +50°C
• Video Connector: BNC

Recommendations

For optimal performance, use a compatible 12V DC power supply and a high-quality BNC cable. Ensure the camera is mounted in a location with a clear view of the area to be monitored. The motion detection sensitivity can be adjusted via the OSD menu for reduced false alarms.
