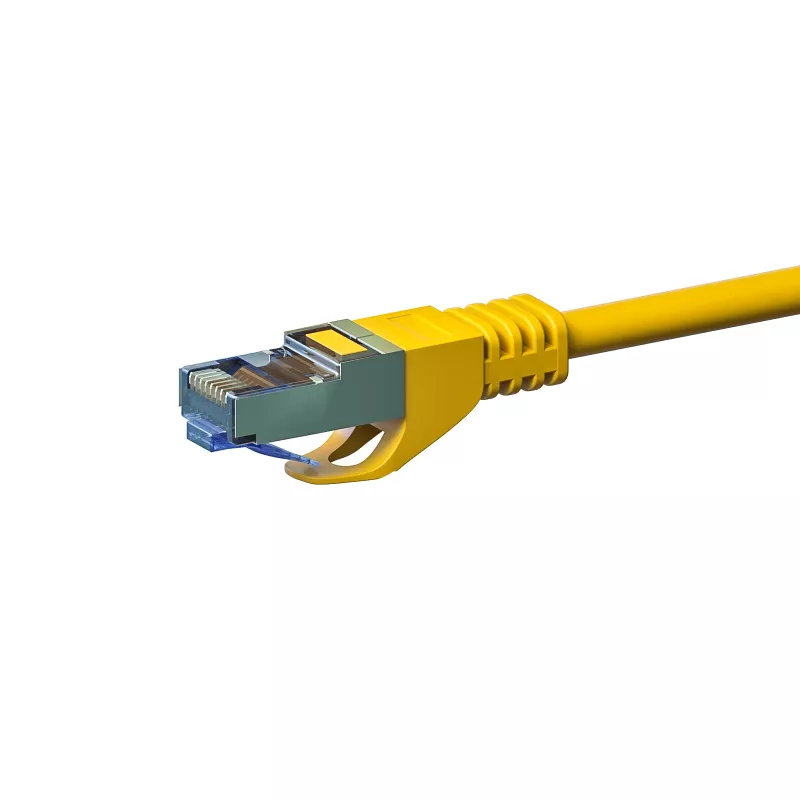

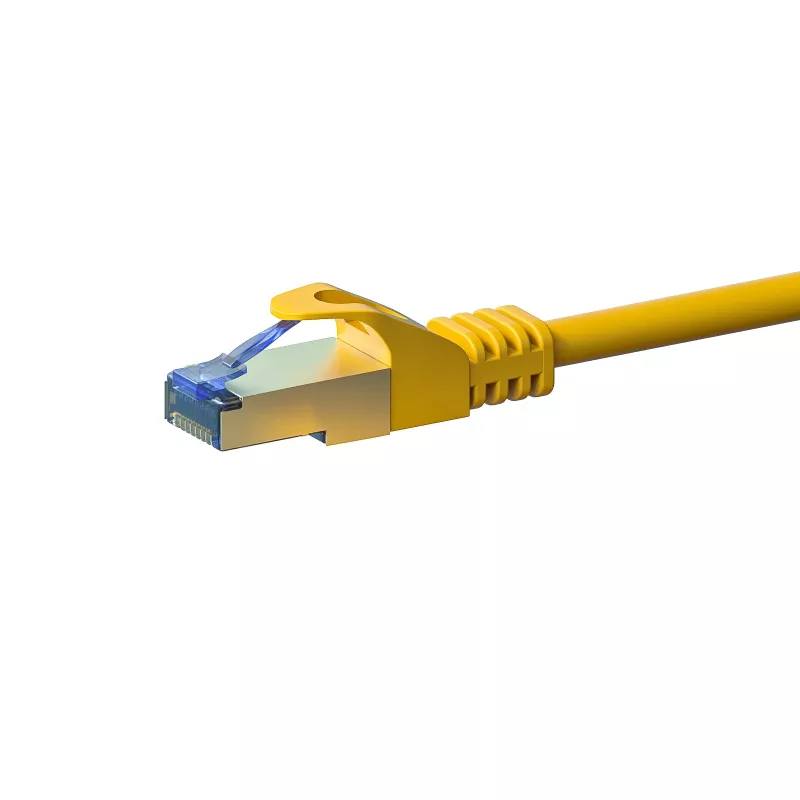

DSIT CAT 6a S/FTP LSOH verkkokaapeli, 10 m, keltainen

High-speed networks demand cables that can keep up without interference or signal loss. The DSIT CAT 6a S/FTP LSOH Network Patch Cable delivers reliable 10-Gigabit Ethernet performance over 10 meters, making it ideal for demanding office, data center, and home network environments. Its double shielding—each twisted pair wrapped in foil plus an overall braid—blocks electromagnetic interference and crosstalk, ensuring clean, stable data transmission even in cable-dense areas. The low-smoke zero-halogen jacket adds safety, emitting minimal smoke and toxic fumes in case of fire, so it’s suitable for public buildings and enclosed spaces.

Who is it for

IT professionals, network administrators, and advanced home users who need a robust, future-proof cable for 10GBASE-T connections. It’s perfect for connecting servers, switches, routers, and high-performance workstations where signal integrity and safety are critical.

Main features

• CAT 6a (Class Ea) performance with up to 500 MHz bandwidth
• S/FTP shielding: individual foil per pair plus overall braid for maximum EMI protection
• Supports 10 Gigabit Ethernet (10GBASE-T) up to 100 meters in channel configurations
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Gold-plated RJ45 connectors (50µm) for corrosion resistance and reliable contact
• Stranded oxygen-free copper conductors (AWG 26/7) for flexibility and durability
• 10-meter length ideal for patch panels, wall outlets, and equipment connections

Specifications

• Cable type: S/FTP (PiMF) network patch cable
• Length: 10 meters
• Colour: Yellow
• Connector type: RJ45 male to RJ45 male, gold-plated contacts (50µm)
• Conductor material: Oxygen-free copper (OFC), stranded AWG 26/7
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Flame retardant: IEC 60332-1-2 compliant
• Outer diameter: Approx. 6.2 mm
• Operating temperature: -20°C to +60°C
• Bend radius: Minimum 4 x outer diameter (dynamic)

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. Use cable ties or Velcro straps to manage slack without kinking. This cable is ideal for structured cabling systems that require LSOH materials for safety compliance.
