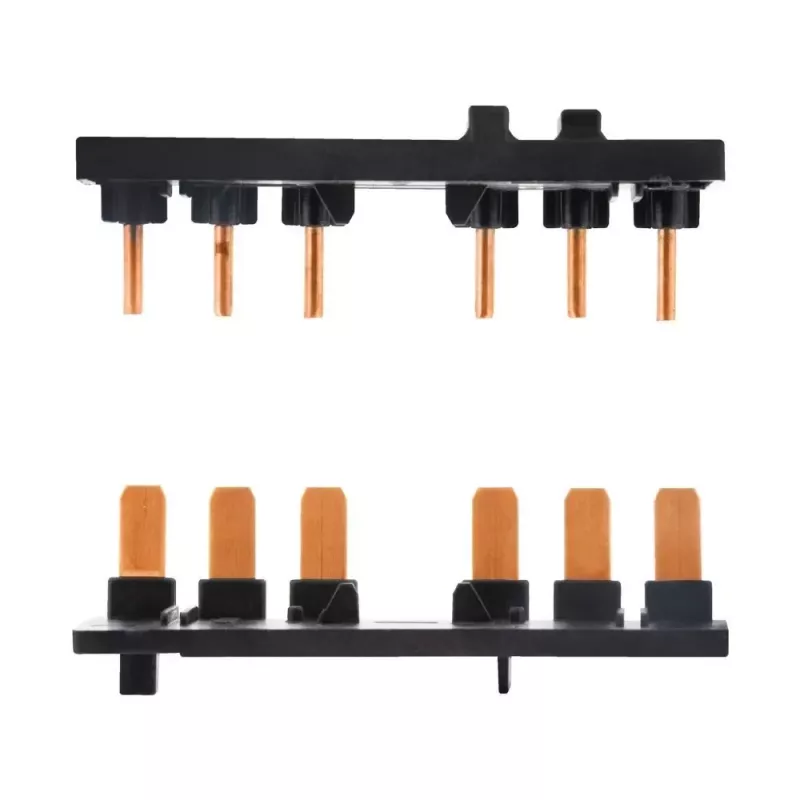

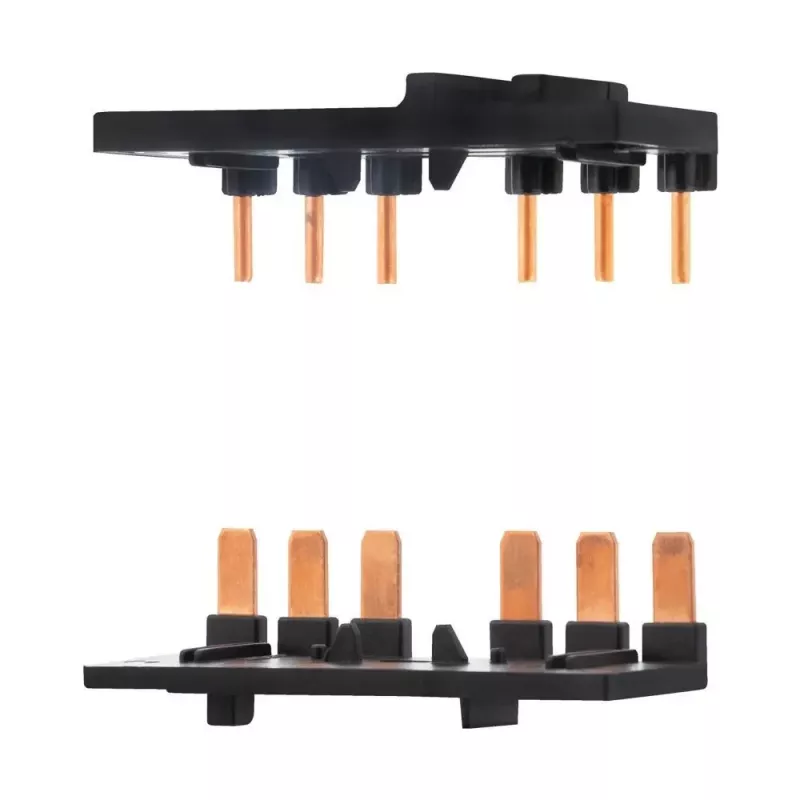

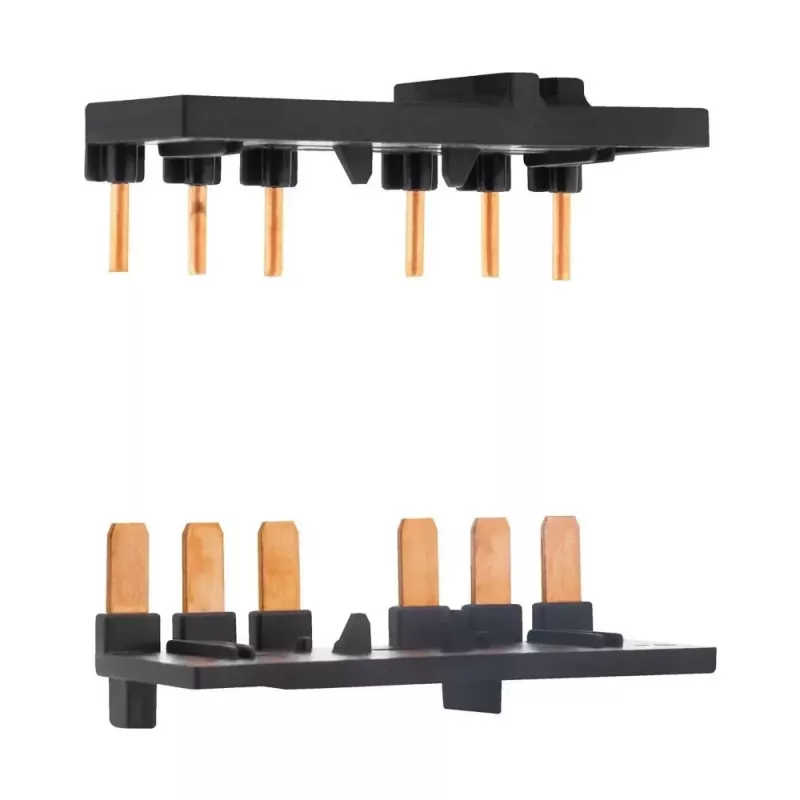

Eaton DILM32-XRL apukosketin 2NO+2NC etuasennus ruuviliittimet 283109

With a rated insulation voltage of 690 V and an impulse withstand rating of 6 kV, this auxiliary contact block delivers dependable switching for Eaton contactors up to 32 A. The DILM32-XRL provides four poles—two normally open and two normally closed—for flexible control circuit integration.

Overview

Designed for front mounting on Eaton DILM7 to DILM32 and DILMP20 to DILMP45 contactors, the DILM32-XRL expands the control capabilities of your motor starters and contactor combinations. Screw terminals accept conductors up to 2.5 mm², ensuring secure connections in industrial environments.

What stands out

• Four-pole configuration: 2 NO + 2 NC for versatile signal routing.
• High electrical endurance: rated for AC-15 at 230/400 V up to 4 A and DC-13 at 220 V up to 1 A.
• Wide operating temperature range from -25 °C to +60 °C.
• Compact front-mount design saves panel space and simplifies installation.

Technical details

• Contact configuration: 2 NO + 2 NC
• Mounting: front mounting on compatible Eaton contactors
• Rated operational current AC-15: 4 A at 230 V and 400 V
• Rated operational current DC-13: 1 A at 220 V
• Rated operational voltage: 690 V AC / 250 V DC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature: -25 °C to +60 °C
• Max conductor cross-section: 2.5 mm² (solid or stranded with ferrule)

Our verdict

A robust auxiliary contact block that extends the functionality of Eaton contactors with reliable, high-voltage switching performance.
