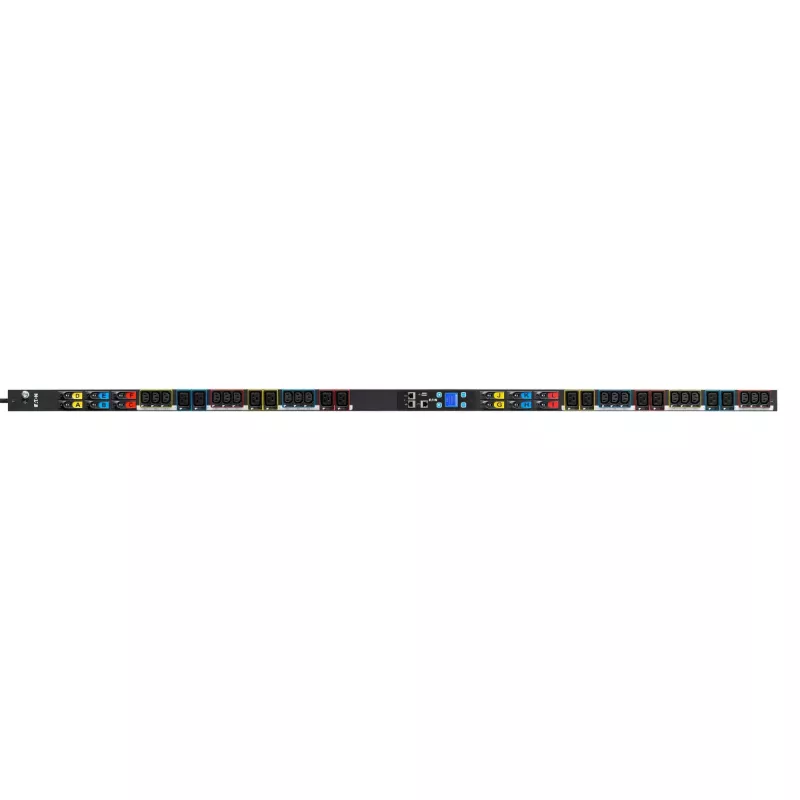

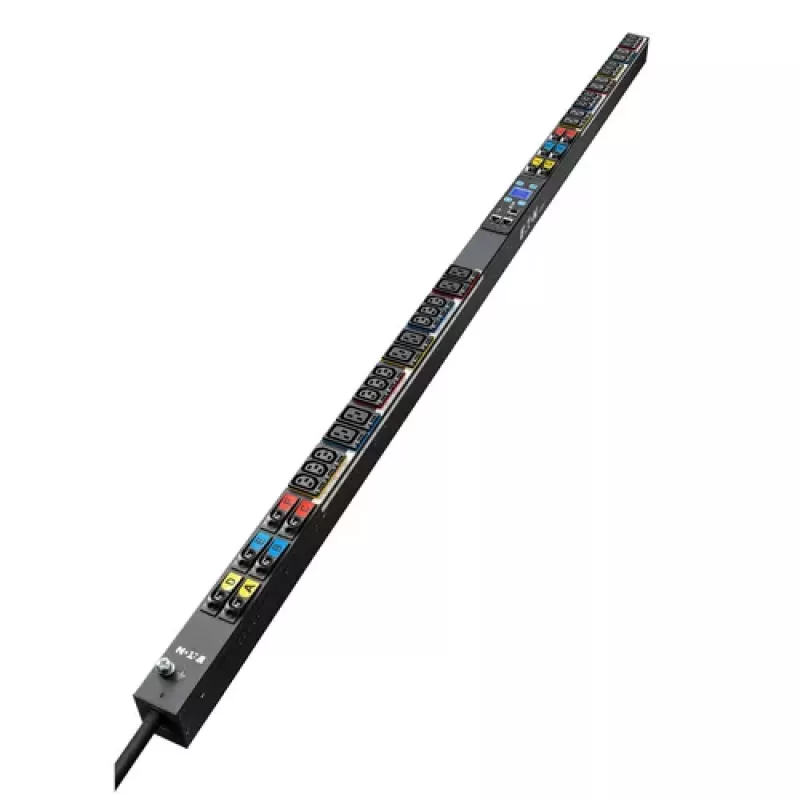

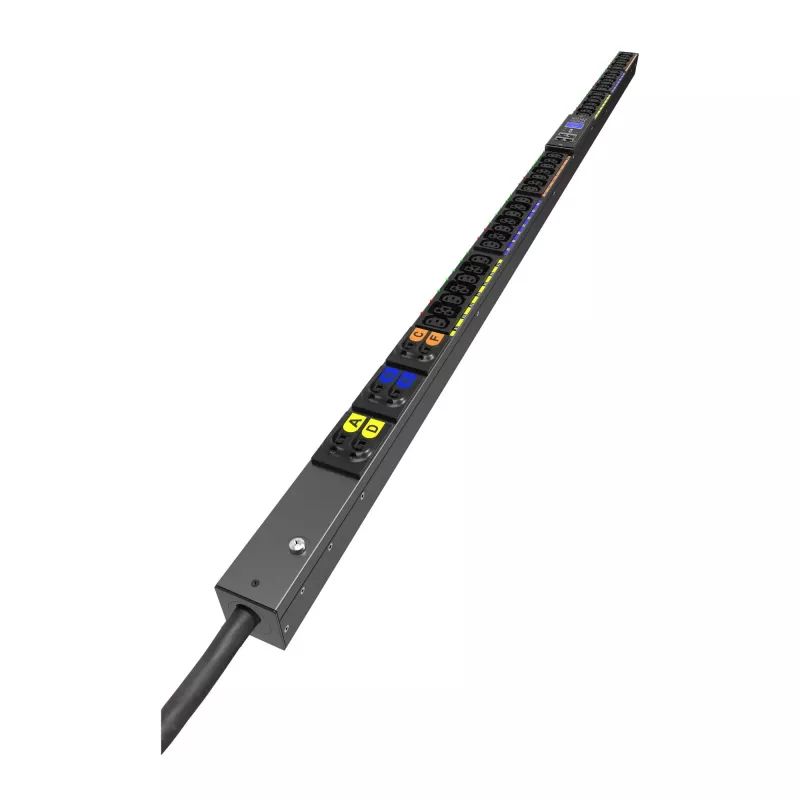

EATON EPDU MI 0U (309 63A 3P) 18xC13, 12xC19

The EATON EPDU MI 0U is a professional-grade metered input PDU designed for data centers and server rooms requiring precise power monitoring and reliable distribution. With a 0U vertical rackmount form factor, it saves valuable rack space while providing 30 outlets (18 x IEC C13 and 12 x IEC C19) for high-density equipment. The PDU features a 63A 3-phase input with an IEC 60309 connector and a 3-meter input cable, supporting 230/400V AC. Its billing-grade metering (±1% accuracy) monitors voltage, current, power, energy, power factor, and frequency at the input level. The color LCD display is hot-swappable, and network management via Ethernet (Web, SNMP, CLI, Telnet, SSH) enables remote monitoring. Daisy chain capability allows up to 8 PDUs with a single IP address. Tool-less mounting with universal brackets simplifies installation.

Advantages

High-accuracy power monitoring for precise energy management; space-saving 0U design; hot-swappable LCD display for easy maintenance; daisy chain reduces IP address usage; tool-less mounting for quick deployment.

Suitable for

• Data centers requiring billing-grade power monitoring
• Server rooms with high-density equipment needing multiple C13 and C19 outlets
• Facilities with 3-phase power distribution
• Remote monitoring and management via network

Key specifications

• PDU Type: Metered Input (G3)
• Form Factor: 0U Vertical Rackmount
• Input Connector: IEC 60309 63A 3P
• Input Voltage: 230/400V AC
• Input Current: 63A
• Phases: 3-Phase
• Output Receptacles: 18 x IEC C13, 12 x IEC C19
• Total Outlets: 30
• Metering: Input-level (Voltage, Current, Power, Energy, Power Factor, Frequency)
• Accuracy: ±1% (Billing Grade)
• Network Management: Ethernet (Web, SNMP, CLI, Telnet, SSH)
• Daisy Chain: Yes (up to 8 PDUs)
• Display: Color LCD (Hot-swappable)
• Input Cable Length: 3 meters
• Operating Temperature: 0°C to 60°C
• Mounting: Tool-less, Universal Brackets

Recommendations

For optimal performance, ensure your facility supports 3-phase 230/400V AC with a 63A IEC 60309 outlet. Use daisy chain to monitor multiple PDUs efficiently. Regularly update firmware via network for enhanced security.
