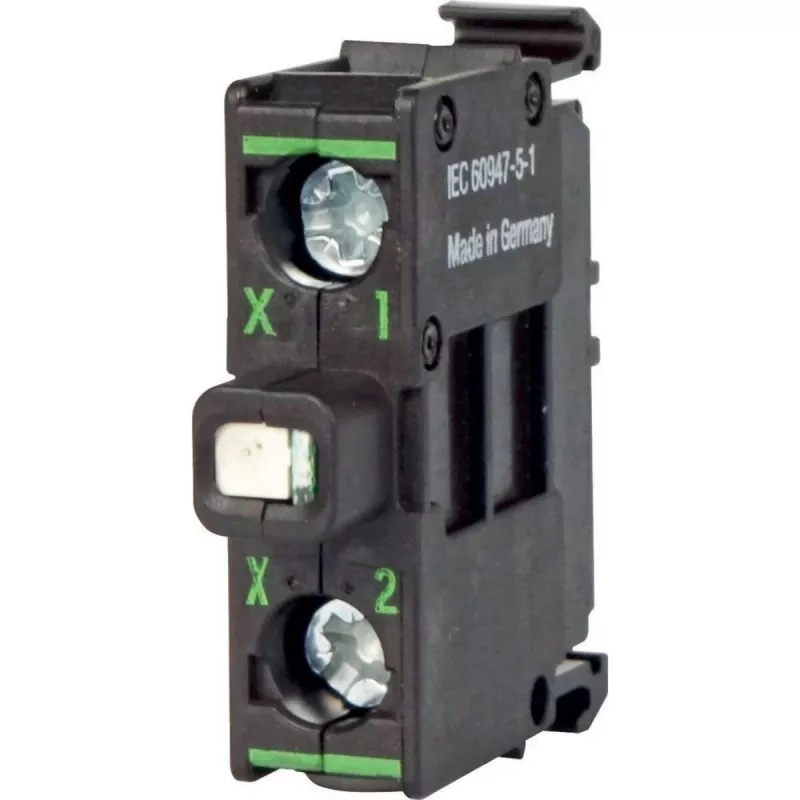

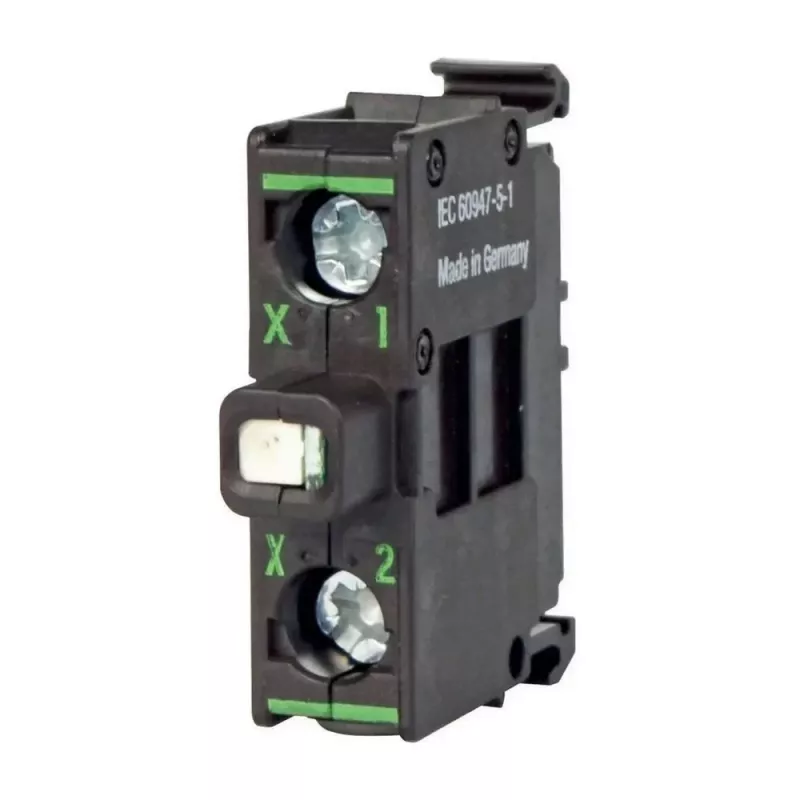

Eaton M22-LEDC230-B LED-elementti valkoinen 230V AC/DC 218060

The Eaton M22-LEDC230-B is a white LED light element engineered for the RMQ-Titan M22 series, offering a direct plug-in replacement for conventional incandescent bulbs. Unlike standard indicator lamps, this LED element operates on 230 V AC/DC without an external transformer, simplifying panel wiring and reducing component count.

Highlights

• White LED light source with a service life exceeding 100,000 hours
• Wide voltage input: 230 V AC/DC, suitable for direct connection to control circuits
• Modular plug-in design for fast installation into M22 contact blocks
• Low power consumption of less than 1 W, reducing thermal load in enclosures
• Operating temperature range from -25 °C to +70 °C for demanding environments

In daily use

This LED element fits into the front of an M22 pilot device, such as a pushbutton or indicator head, and connects to the corresponding contact block. The white illumination provides clear status indication even in bright ambient light. Its high-quality plastic housing ensures durability, while the plug-in interface allows tool-free replacement without rewiring.

Full specifications

• Supply voltage: 230 V AC/DC
• Light colour: White
• Current consumption: 5–10 mA
• Power consumption: < 1 W
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Protection rating (element): IP20
• Housing material: High-quality plastic
• Mounting type: Modular plug-in
• Series compatibility: Eaton M22 (RMQ-Titan)

Final note

The M22-LEDC230-B is a reliable, energy-efficient light source for industrial control panels, offering long service life and simple integration into existing M22 installations.
