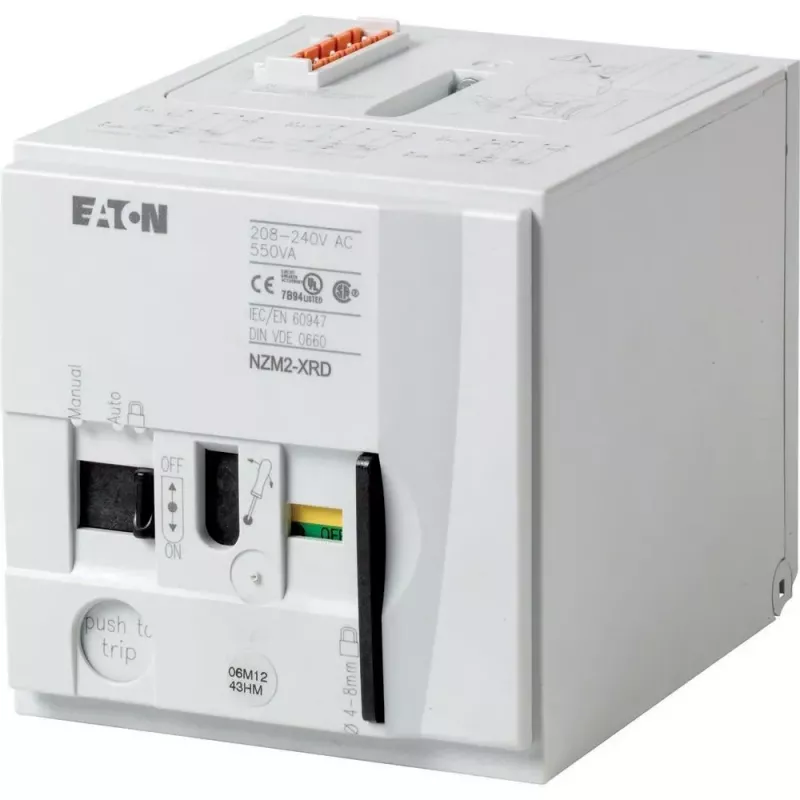

Eaton NZM2-XRD208-240AC moottorikäyttö kaukohallintaan 208-240V AC 115391

Manual operation of circuit breakers in remote or hard-to-reach locations is inefficient and can pose safety risks. The Eaton NZM2-XRD208-240AC motorized remote operator solves this by enabling remote ON/OFF switching and reset of compatible NZM2 series circuit breakers. It mounts directly on the front of the breaker and is driven by a 208-240V AC motor.

Who is it for

This remote operator is intended for electrical engineers, panel builders, and facility managers who need to control circuit breakers from a distance in industrial or commercial installations. It is suitable for applications where breakers are located in inaccessible or hazardous areas, or where automated switching is required.

Main features

• Motorized remote operation for Eaton NZM2, N(S)2, NZM2-S, and N(S)2-S circuit breakers
• Operating voltage: 208-240V AC
• Provides remote ON/OFF switching and reset function
• Front mounting on circuit breaker
• Includes 1 NO + 1 NC auxiliary contacts for position indication
• Mechanical endurance: 10,000 operations

Specifications

• Compatible circuit breaker series: Eaton NZM2, N(S)2, NZM2-S, N(S)2-S
• Operating voltage: 208 - 240 V AC
• Control type: Electrical (motorized)
• Mounting: Front mounting on circuit breaker
• Auxiliary contacts: 1 NO + 1 NC
• Degree of protection: IP20 (terminals, when installed)
• Standards: IEC/EN 60947-2
• Operating temperature range: -25 °C to +70 °C
• Storage temperature range: -40 °C to +80 °C
• Connection type: Screw terminals
• Power consumption (operating): 100 VA
• Power consumption (standby): 10 VA
• Mechanical endurance: 10,000 operations
• Housing material: High-quality plastic
• Color: Grey

Tips

Ensure the circuit breaker is compatible before installation. The remote operator must be mounted on the front of the breaker and connected to a 208-240V AC supply. Refer to the manufacturer's documentation for wiring and safety instructions.
