Eaton Z-SC apukosketinlohko 1NO+1NC sivuasennus 248862

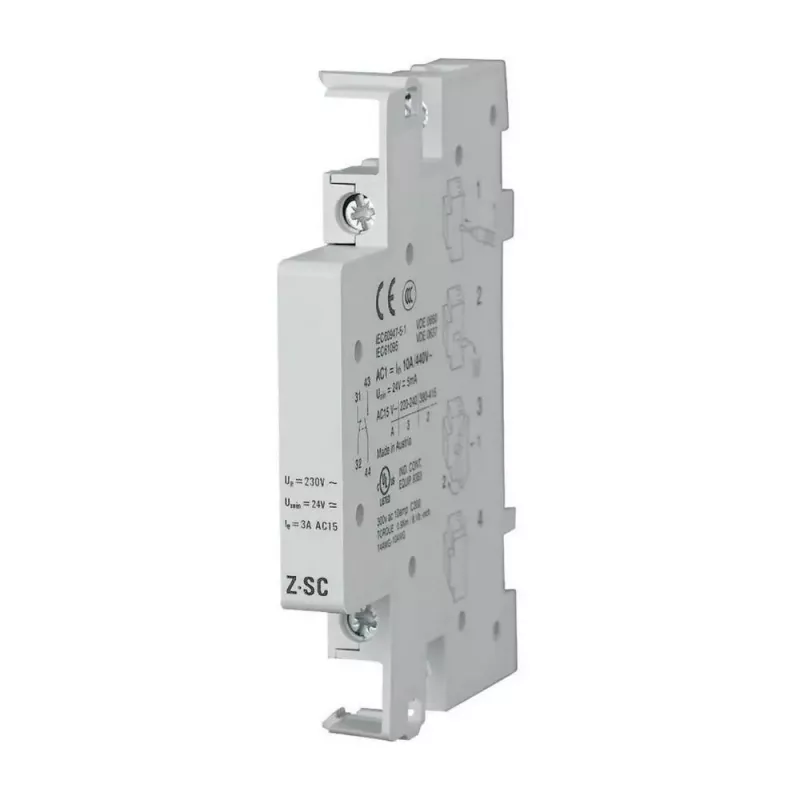

This Eaton Z-SC auxiliary contact block expands the functionality of compatible Eaton contactors and motor-protective circuit breakers with one normally open and one normally closed contact. It mounts directly to the side of the device, providing reliable signaling and control of auxiliary circuits in industrial applications.

Advantages

The Z-SC offers a compact, side-mounted design that integrates seamlessly with a wide range of Eaton switching devices. Its screw terminals ensure secure and maintenance-free connections, while the IP20 degree of protection suits installation in enclosed control panels.

Suitable for

• Eaton PKZ and PKE motor-protective circuit breakers
• Eaton DILM, DILMP, DIUL, DIULM, DILMF, DILK, DILMT, DILH, DILHR, and DILM(C) contactors
• Control circuits requiring auxiliary status indication

Key specifications

• Contact configuration: 1 normally open (NO) + 1 normally closed (NC)
• Rated operational current AC-15 at 230 V: 4 A
• Rated operational current AC-15 at 400 V: 3 A
• Rated operational current DC-13 at 24 V: 1 A
• Rated operational current DC-13 at 60 V: 0.5 A
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Degree of protection: IP20
• Terminal type: screw terminals
• Connection capacity solid: 1 x (0.75 - 2.5) mm²
• Connection capacity stranded with ferrule: 1 x (0.75 - 2.5) mm²
• Operating temperature range: -25 to +60 °C

Recommendations

For reliable auxiliary contact integration in motor control centers and industrial control panels, the Eaton Z-SC provides a robust solution compatible with a broad range of Eaton switching devices.
