EFB 10 inch seinäkotelo 9U 300 mm syvyys vaaleanharmaa (RAL 7035) turvalasiluukulla

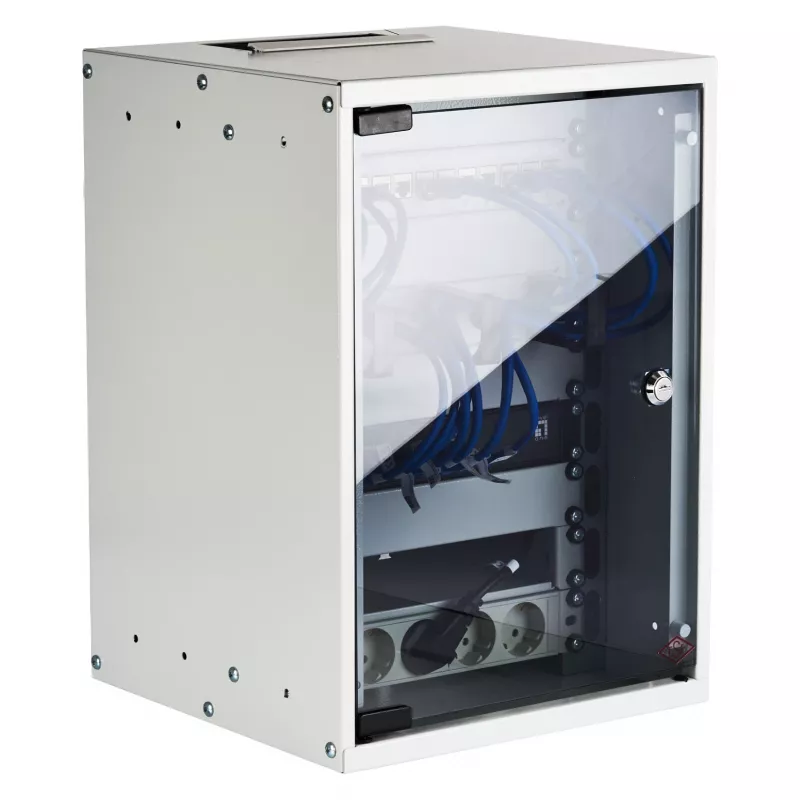

The EFB WGB-1009GR.30-SET1 is a high-quality 10-inch wall mount cabinet designed for network, IT, and telecommunications applications. With 9U of rack space and a depth of 300mm, this single-section cabinet provides a secure and organized enclosure for your equipment. The cabinet features a safety glass door with a lock, fixed side panels, and cable entry at top and bottom. It is constructed from steel with a light grey (RAL 7035) finish and includes mounting material and two keys.

Advantages

This wall mount cabinet offers a robust and secure solution for housing your 10-inch rack equipment. The safety glass door allows for easy monitoring of equipment while providing protection. The 180° door opening angle facilitates convenient access. Passive ventilation ensures adequate airflow without the need for fans. The welded frame construction provides stability and durability.

Suitable for

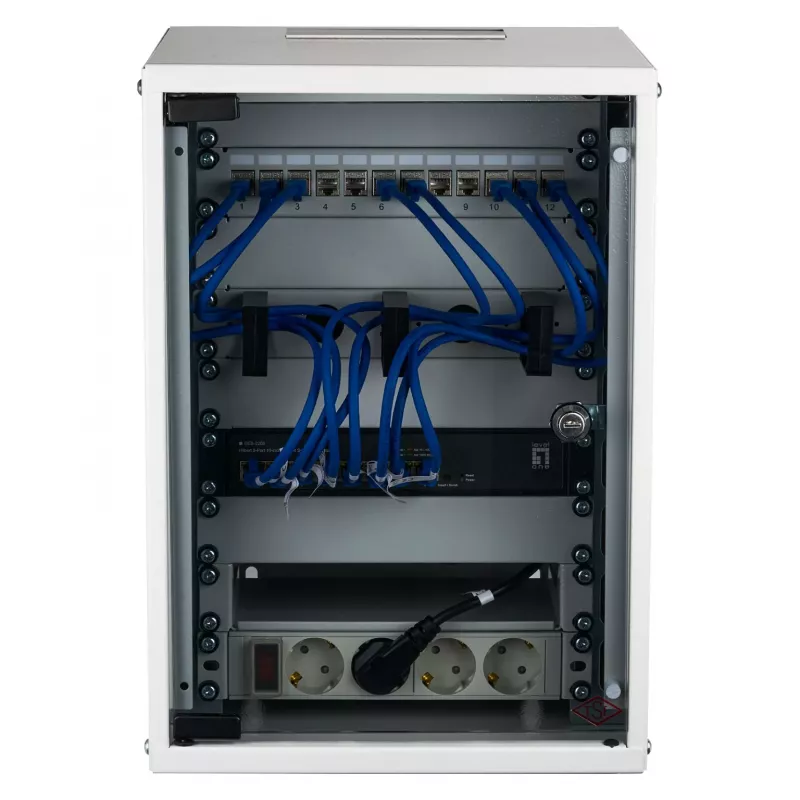

• Network switches and patch panels
• IT and telecommunications equipment
• Small to medium-sized server installations
• Audio/video equipment in 10-inch format

Key specifications

• Rack Standard: 10-inch
• Rack Units: 9U
• External Dimensions (HxWxD): 460 x 310 x 300 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel
• Front Door: Safety glass with lock
• Side Panels: Fixed
• Cable Entry: Top and bottom
• Ventilation: Passive
• Load Capacity: 20 kg
• Protection Rating: IP20

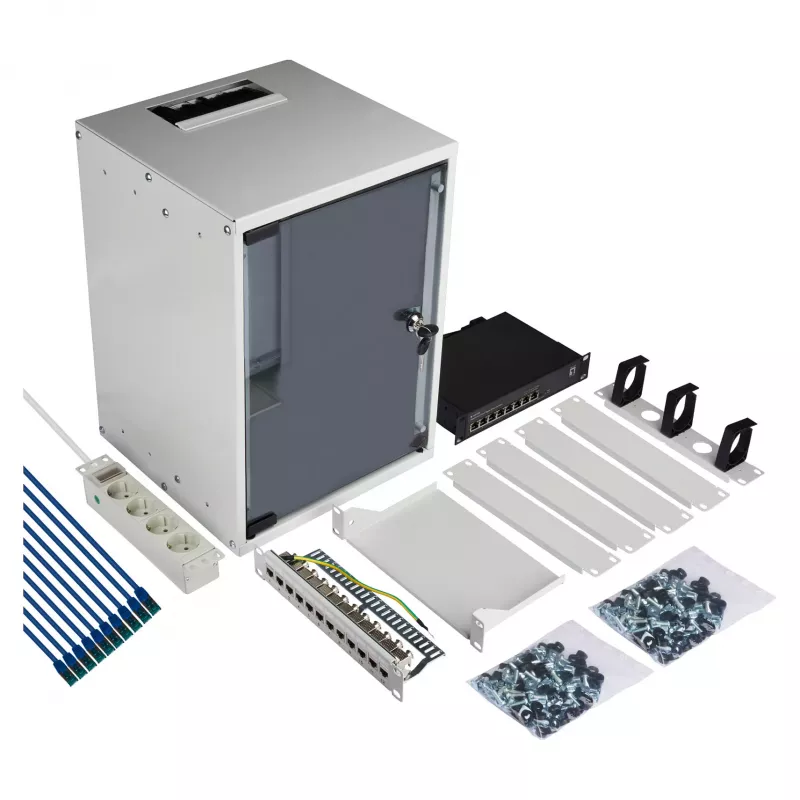

• Included Accessories: 2 keys, mounting material

Recommendations

This cabinet is ideal for organizing and securing your 10-inch rack components. Ensure proper ventilation and do not exceed the maximum load capacity of 20 kg. For optimal performance, use with compatible 10-inch rack equipment.
