ELEKTROKABEL YDYp 2x1,5mm2 lattakaapeli 450/750V valkoinen 100m

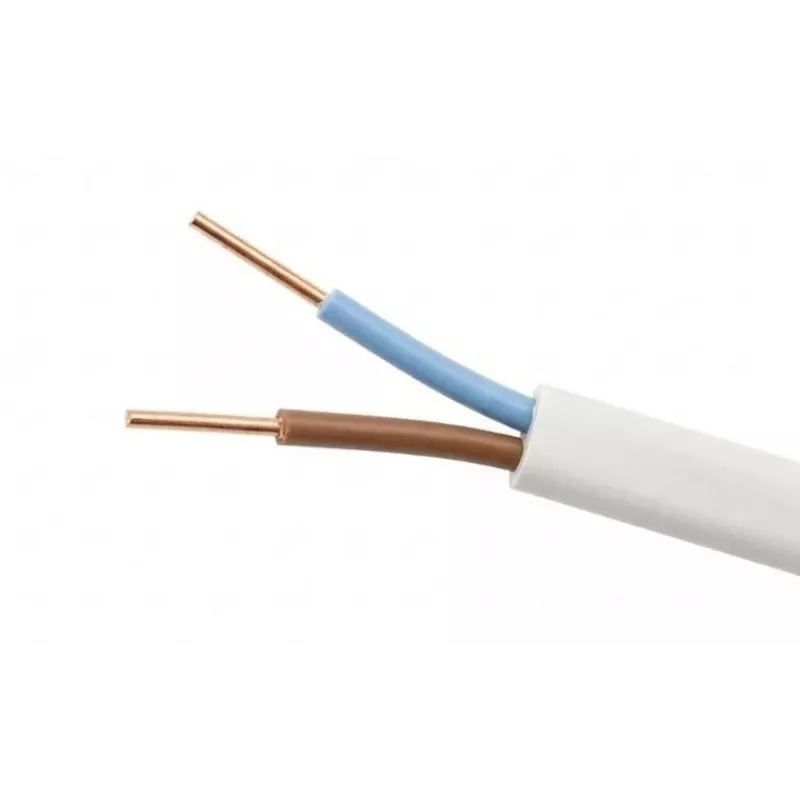

The ELEKTROKABEL YDYp 2x1.5mm2 flat electrical wire is a high-quality PVC-insulated cable designed for fixed installations in dry and damp environments. With a solid copper conductor and a flat profile, it is ideal for surface or recessed mounting in residential and commercial buildings. This cable complies with PN-EN 50525-2-31 and is flame retardant according to EN 60332-1-2, ensuring safety and reliability.

Advantages

Solid copper conductor ensures excellent conductivity and durability. Flat shape allows for space-saving installation and easy routing. PVC insulation and sheath provide good mechanical protection and resistance to moisture. Flame retardant properties enhance fire safety. Rated voltage 450/750V makes it suitable for a wide range of applications.

Suitable for

• Fixed electrical installations in dry and damp rooms
• Surface mounting on walls or ceilings
• Recessed mounting in conduits or under plaster
• Power supply lines for lighting, sockets, and appliances

Key specifications

• Cable type: YDYp (flat PVC cable)
• Conductor: Solid copper, 2 cores
• Cross-section: 1.5 mm² per core
• Rated voltage: 450/750 V
• Insulation: PVC
• Outer sheath: PVC, white
• Length: 100 m
• Operating temperature: -30°C to +70°C
• Max conductor temperature: +70°C
• Flame retardant: EN 60332-1-2
• Standard: PN-EN 50525-2-31

Recommendations

For optimal performance, ensure proper cable sizing according to local electrical regulations. Use appropriate connectors and junction boxes. Avoid sharp bends and mechanical stress during installation.
