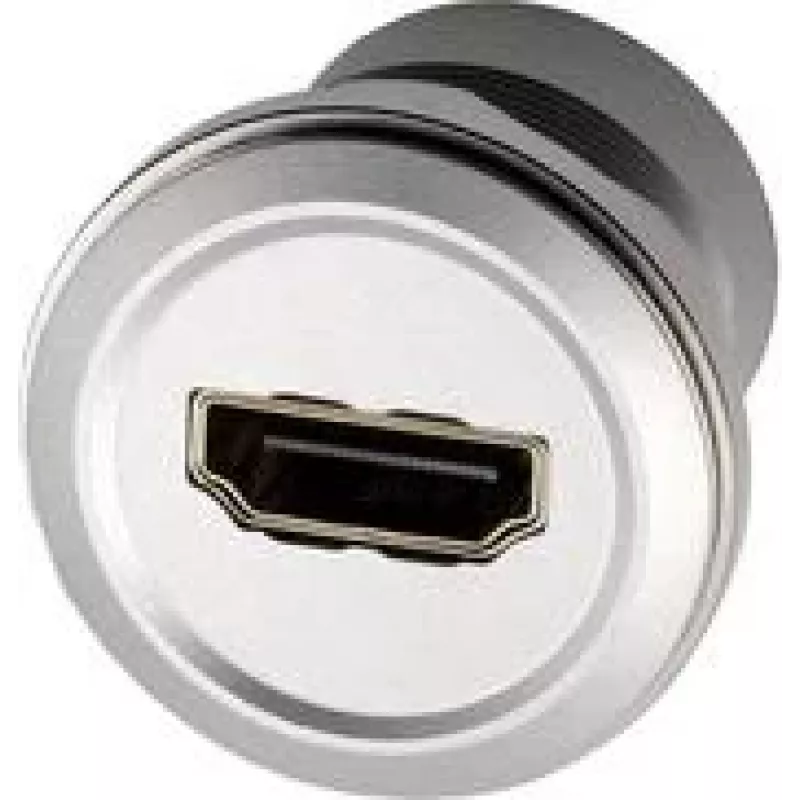

EXSYS EX-49190 asennusadapteri metalli, HDMI naaras-naaras

In-wall HDMI installations often suffer from cable strain and connector wear when cables are repeatedly plugged and unplugged directly. The EXSYS EX-49190 solves this by providing a robust panel-mount pass-through point that protects permanent cabling and offers a clean, professional finish.

Who is it for

Installers and system integrators who need a reliable HDMI connection point in wall plates, desks, or equipment panels. Ideal for conference rooms, home theaters, and digital signage where a fixed HDMI port is required.

Main features

• HDMI Type A female to female coupler for extending HDMI connections through panels.
• Metal (zinc alloy) housing with black finish for durability and a professional look.
• Gold-plated connectors for optimal signal integrity and corrosion resistance.
• Supports HDMI 2.0 with 4K UHD (3840x2160) at 60Hz, 18 Gbps bandwidth, HDR, ARC, CEC, and HDCP.
• Screw-in panel mounting design (screws not included) for secure installation.

Specifications

• Connector type: HDMI Type A
• Connector gender: Female to Female
• Adapter type: Panel mount / chassis mount
• Housing material: Metal (zinc alloy)
• Housing colour: Black
• HDMI standard: HDMI 2.0 (backward compatible)
• Maximum resolution: 4K UHD (3840x2160) @ 60Hz
• Data transfer rate: 18 Gbps
• Connector plating: Gold-plated
• Operating temperature: -20°C to 80°C
• Compliance: RoHS, CE

Tips

Use a hole saw or punch to create the panel opening according to the adapter's dimensions. For best results, pair with high-quality HDMI cables rated for 18 Gbps to maintain full 4K HDR performance.
