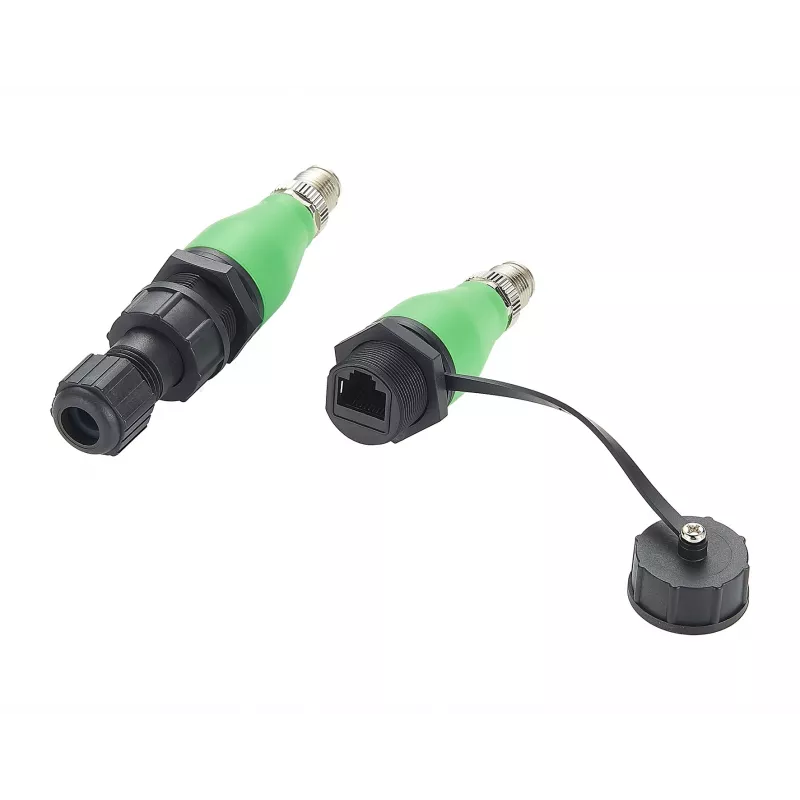

EXSYS EX-49544 M12 X-koodi 8-pin pistoke - RJ45 liitin IP67 teollisuus-Ethernet-sovitin, 10 Gbps

Engineered for harsh industrial environments, the EXSYS EX-49544 adapter bridges M12 X-coded connectivity with standard RJ45 infrastructure. Its IP67-rated housing and 10 Gigabit support set it apart from typical office-grade couplers.

Highlights

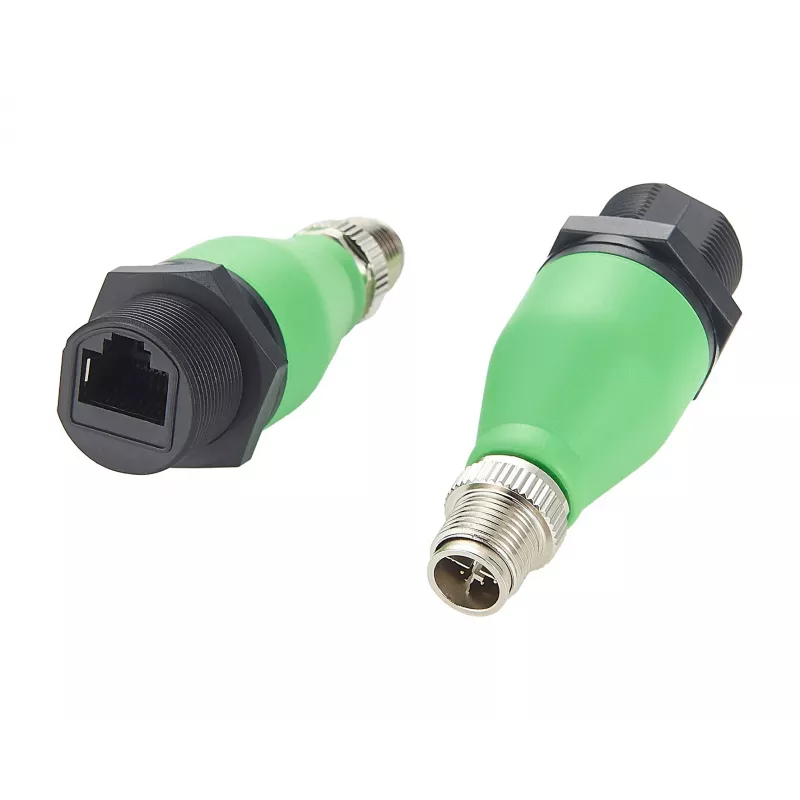

• M12 X-coded 8-pin male to RJ45 female inline adapter
• Supports 10GBASE-T for 10 Gbps data transfer
• IP67 ingress protection for dust and water resistance
• Nickel-plated brass housing with gold-plated contacts
• Operating temperature range -20°C to +85°C

In daily use

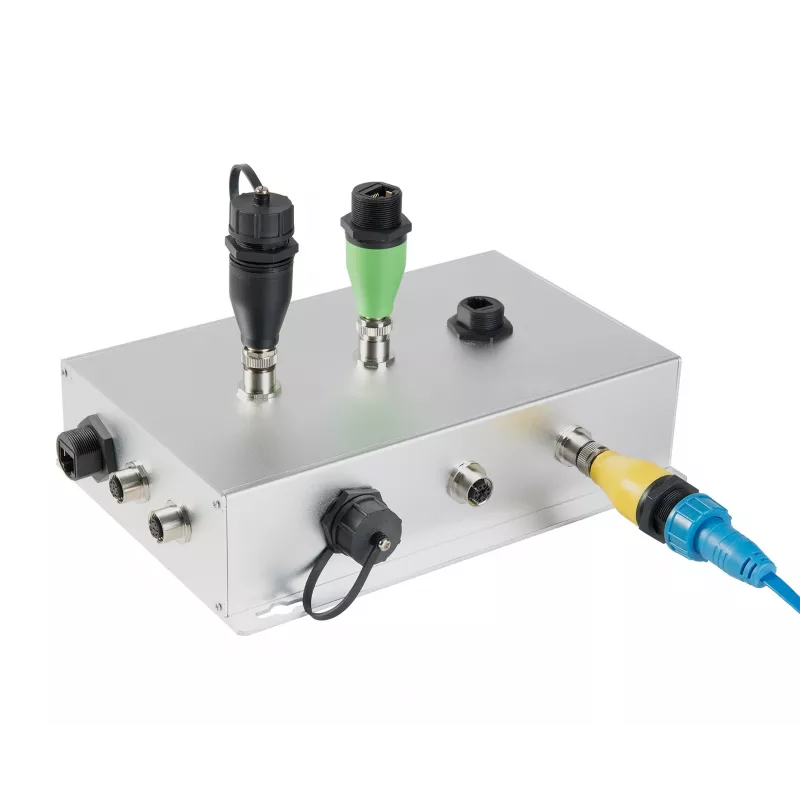

This adapter is ideal for connecting industrial Ethernet devices with M12 X-coded ports to standard RJ45 cabling in factory automation, transportation, or outdoor installations. The shielded design ensures signal integrity even in electrically noisy environments.

Full specifications

• Connector A: M12 X-coded male, 8-pin
• Connector B: RJ45 female
• Data rate: 10 Gbps
• IP rating: IP67
• Housing material: Nickel-plated brass
• Contact plating: Gold
• Shielding: Shielded
• Operating temperature: -20°C to +85°C
• Standard compliance: IEC 61076-2-109
• Mounting style: Inline

Final note

When reliability matters, the EX-49544 delivers robust connectivity without compromising speed.
