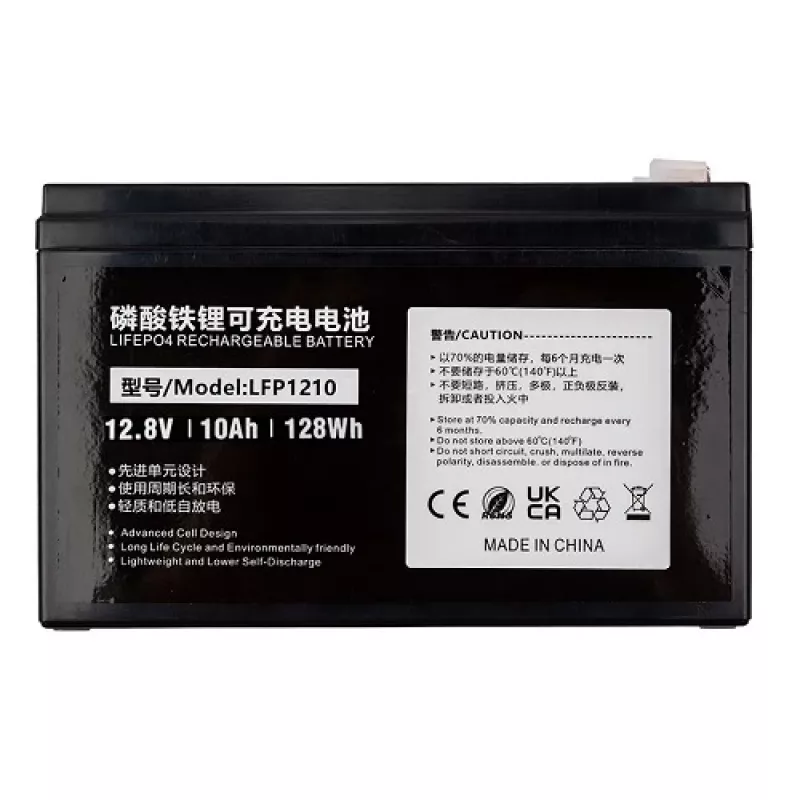

EXTRA DIGITAL LiFePO4 -akku 12V 10Ah T2/T1-liittimet

Deep-cycle LiFePO4 battery delivering 3000+ cycles at 80% depth of discharge for solar, RV, marine, and UPS applications. The integrated BMS ensures safe operation with overcharge, over-discharge, overcurrent, short-circuit, and temperature protection, while the 12.8V nominal voltage and 10Ah capacity provide 128Wh of reliable energy in a lightweight ABS housing.

Advantages

Lithium iron phosphate chemistry offers over 3000 charge cycles at 80% depth of discharge, making this battery a cost-effective long-term investment. It weighs significantly less than comparable lead-acid batteries and requires no maintenance. The built-in Battery Management System (BMS) safeguards against overcharge, deep discharge, overcurrent, and short circuits, ensuring safe and efficient operation in every cycle. With a self-discharge rate below 3% per month, the battery remains ready for use even after extended storage. The wide operating temperature range (-20°C to 60°C for discharge) supports use in various climates, and the ABS plastic housing with T2 spade terminals allows easy installation.

Suitable for

• Solar energy storage systems
• Recreational vehicles and caravans
• Marine and boat power
• Uninterruptible power supplies (UPS)
• Electric vehicles and mobility devices
• Off-grid and backup power installations

Key specifications

• Battery chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal voltage: 12.8V (12V system)
• Rated capacity: 10Ah
• Energy: 128Wh
• Max continuous discharge current: 20A
• Peak discharge current: 40A (3-5s)
• Max charge current: 5A
• Recommended charge voltage: 14.4V - 14.6V
• Cut-off voltage: 10V
• Cycle life: >3000 cycles @ 80% DoD
• Built-in BMS: Overcharge, Over-discharge, Over-current, Short-circuit, Temperature Protection
• Terminal type: T2 / F2 (0.250" Spade)
• Self-discharge rate: <3% per month
• Operating temperature (discharge): -20°C to 60°C
• Operating temperature (charge): 0°C to 45°C
• Series/Parallel connection: Up to 4S4P
• Housing material: ABS Plastic
• Internal resistance: <30 mΩ
• Certifications: CE, RoHS, UN38.3

Recommendations

For optimal performance and lifespan, pair this battery with a compatible LiFePO4 charger and avoid discharging below 10V. Ensure proper ventilation during charging and storage.
