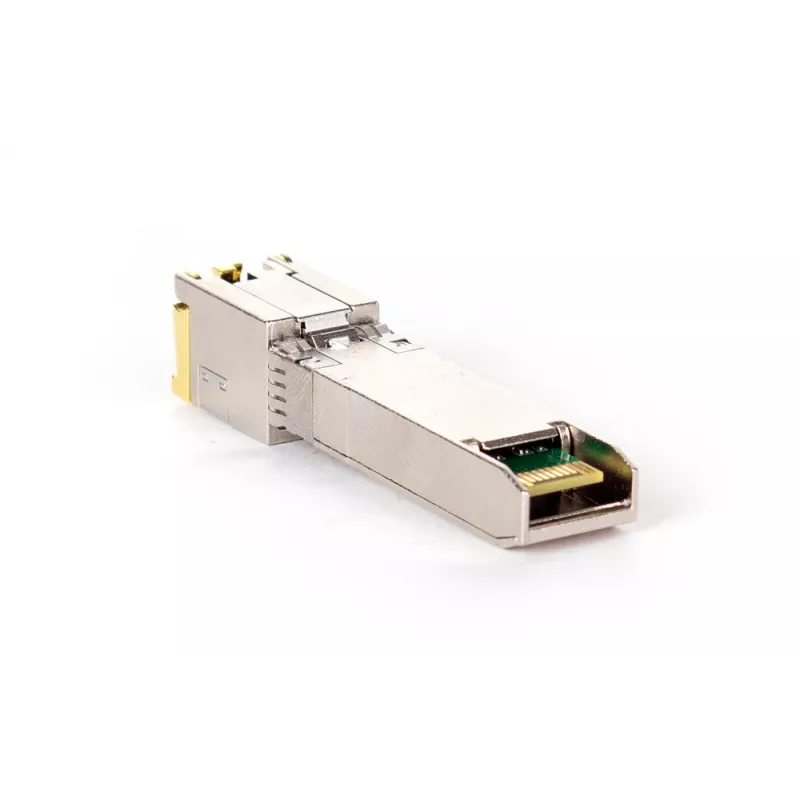

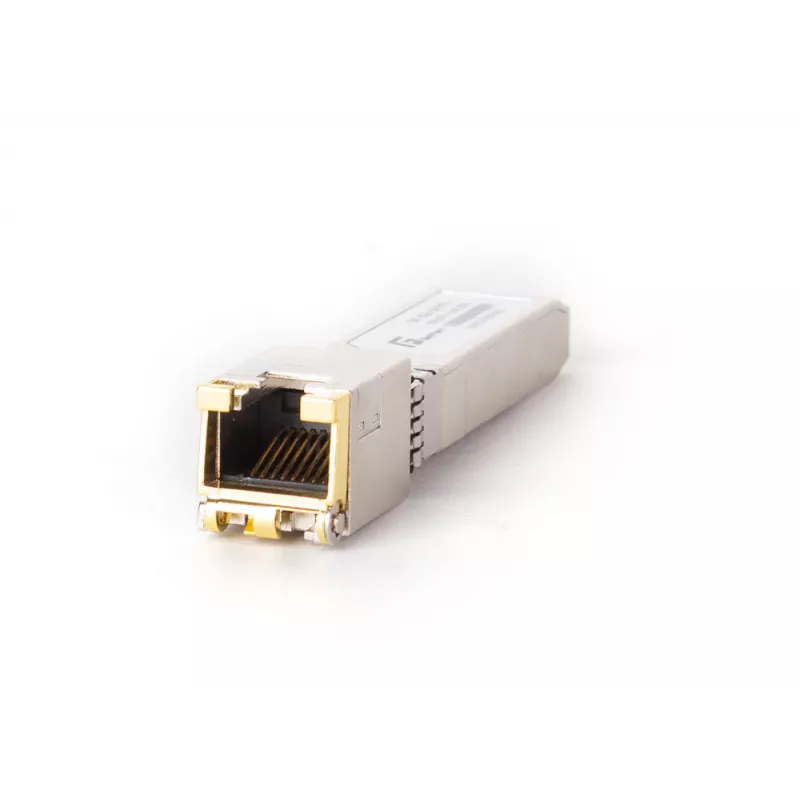

GETFORT GF-SM-SFPRJ SFP-moduuli 100/1000BASE-T RJ45 kupari Gigabit Ethernet

The GETFORT GF-SM-SFPRJ is a high-performance SFP (Small Form-Factor Pluggable) module designed for 100/1000BASE-T Gigabit Ethernet over copper cabling. It provides a reliable and cost-effective solution for connecting network devices with RJ45 interfaces in data centers, enterprise networks, and telecommunications environments. Compliant with MSA standards, this hot-pluggable transceiver supports auto-negotiation and Digital Diagnostic Monitoring (DDM/DOM) for real-time performance tracking.

Advantages

This SFP module offers seamless integration with existing network infrastructure, supporting both 100 Mbps and 1000 Mbps data rates over standard twisted-pair copper cables (Cat5e, Cat6, Cat7). Its low power consumption (typically less than 1.0W) and compact design make it ideal for high-density deployments. The hot-pluggable feature allows for easy installation and replacement without disrupting network operations.

Suitable for

• Gigabit Ethernet and Fast Ethernet networks
• Data center interconnects
• Enterprise LAN upgrades
• Telecommunications equipment
• Network switches, routers, and media converters with SFP slots

Key specifications

• Module Type: SFP
• Connector Type (Host): SFP
• Connector Type (Media): RJ45
• Data Rate: 100 Mbps / 1000 Mbps
• Supported Standards: IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX)
• Media Type: Copper (Twisted Pair)
• Cable Type: Cat5e, Cat6, Cat7 UTP/STP
• Max Cable Distance: 100 meters (328 feet)
• Duplex Mode: Full-Duplex
• Auto-Negotiation: Yes
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Power Consumption: Typically < 1.0W
• Operating Temperature: 0°C to 70°C
• Supply Voltage: 3.3V
• Compatibility: MSA Compliant

Recommendations

For optimal performance, use high-quality Cat6 or Cat7 cables and ensure that the host device supports SFP MSA standards. This module is ideal for upgrading network links to Gigabit speeds without replacing existing copper cabling infrastructure.
