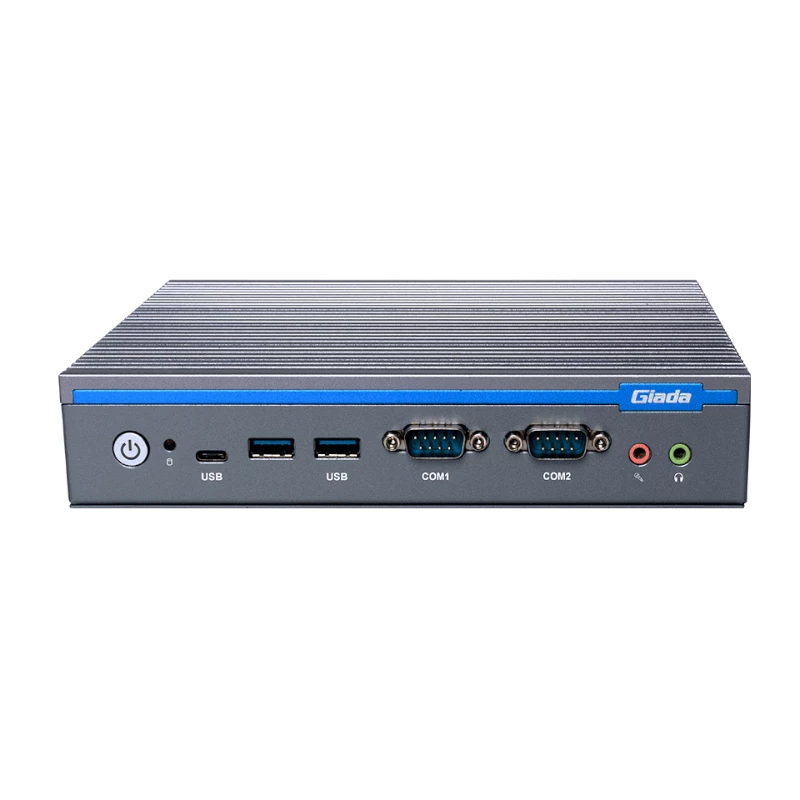

Giada DF612 minitietokone, Intel Core i5-1235U, 2x DDR4 3200MHz

The Giada DF612 Mini PC is powered by an Intel Core i5-1235U processor with 10 cores and a frequency of 3.30 GHz (up to 4.40 GHz). It supports up to 64GB of DDR4-3200MHz memory via two SO-DIMM slots and features Intel UHD Graphics with support for up to 8K resolution via DisplayPort 1.4 and four HDMI 2.0 ports for 4K displays. Its fanless design ensures silent, dust-free operation, making it suitable for mission-critical applications.

Key features

• Intel Core i5-1235U processor (10 cores, 3.30 GHz up to 4.40 GHz)
• Intel UHD Graphics with DirectX 12.1, OpenGL 4.6, OpenCL 3.0
• Supports up to 64GB DDR4-3200MHz memory via 2x SO-DIMM
• 4x HDMI (max. 4096 x 2304 @60 Hz) and 1x DP1.4 (max. 8K 7680 x 4320 @60 Hz)
• Fanless passive thermal cooling system
• Intel vPro and TPM 2.0
• Dual Gigabit Ethernet (Intel i219LM, Realtek RTL8111H)
• Wi-Fi 6 (CNVi) and Bluetooth support via M.2 E-Key
• 3G/4G/5G support via M.2 B-Key and SIM slot
• Watchdog Timer and Auto Power On
• Metal construction, black colour
• Desk/wall mounting and VESA mounting kit (JZ183)

Specifications

• Brand: Giada
• Model: DF612
• MPN: DF612-1235U40N0G-GIA
• Processor: Intel Core i5-1235U
• Memory type: DDR4-3200MHz
• Memory slots: 2x SO-DIMM
• Maximum memory: 64GB
• Graphics: Intel UHD Graphics
• Display outputs: 4x HDMI 2.0, 1x DP1.4
• Storage: 1x M.2 M-key (2242/2280) for NVMe SSD
• Ethernet: 2x RJ45 Gigabit Ethernet
• Wi-Fi/Bluetooth: 1x M.2 E-Key (2230), supports Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• Mobile network: 1x M.2 B-Key (3042/3052) for 3G/4G/5G, 1x SIM slot
• USB: 4x USB 3.2 Gen2, 2x USB 2.0, 1x USB Type-C 3.2 Gen2
• Serial ports: 1x RS232, 1x RS232/422/485
• Audio: 1x Mic-In, 1x Audio-Out
• Buttons: 1x Power on, 1x CLR-CMOS
• Operating system: Windows 11 (64-bit), Linux Ubuntu (64-bit)
• Power input: DC-IN 19V/3.42A
• Operating temperature: 0°C to 40°C at 0.7m/s air flow
• Relative humidity: 95% @45°C (non-condensing)
• Certification: CE, FCC Class B, CCC
• Dimensions: 20 x 15 x 4.0 cm
