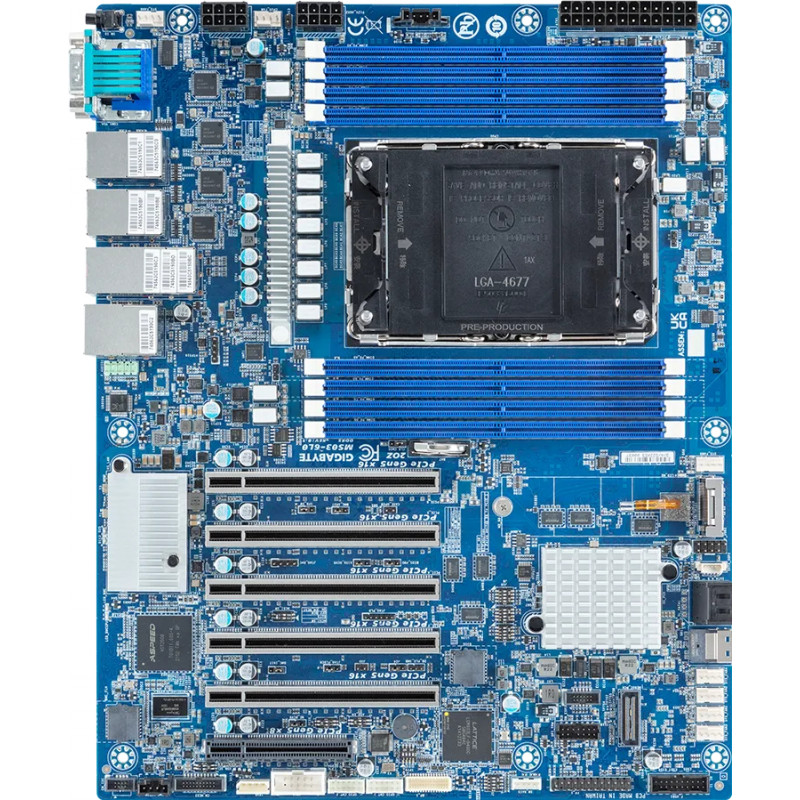

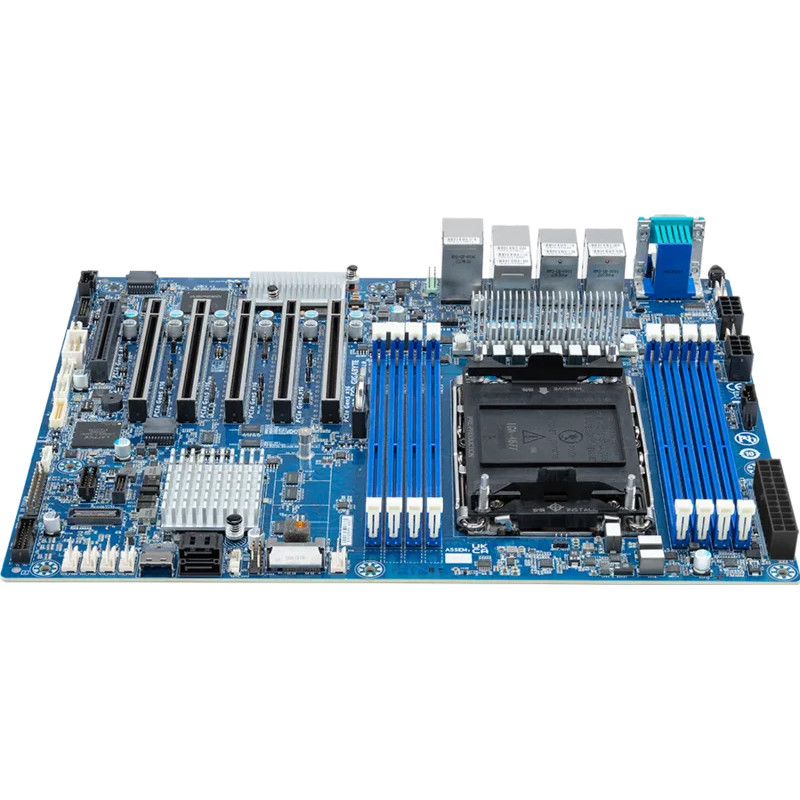

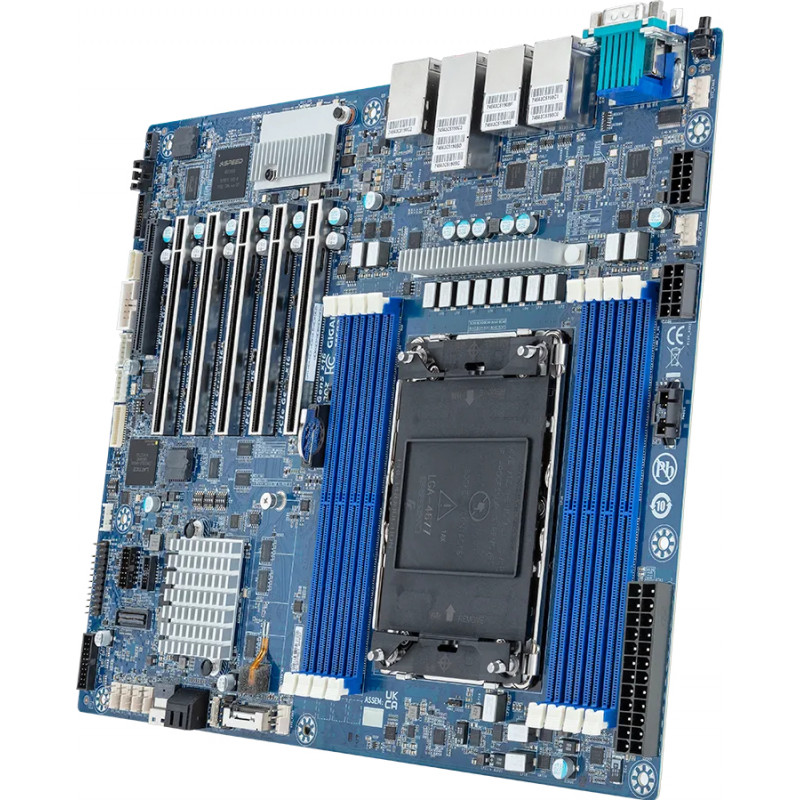

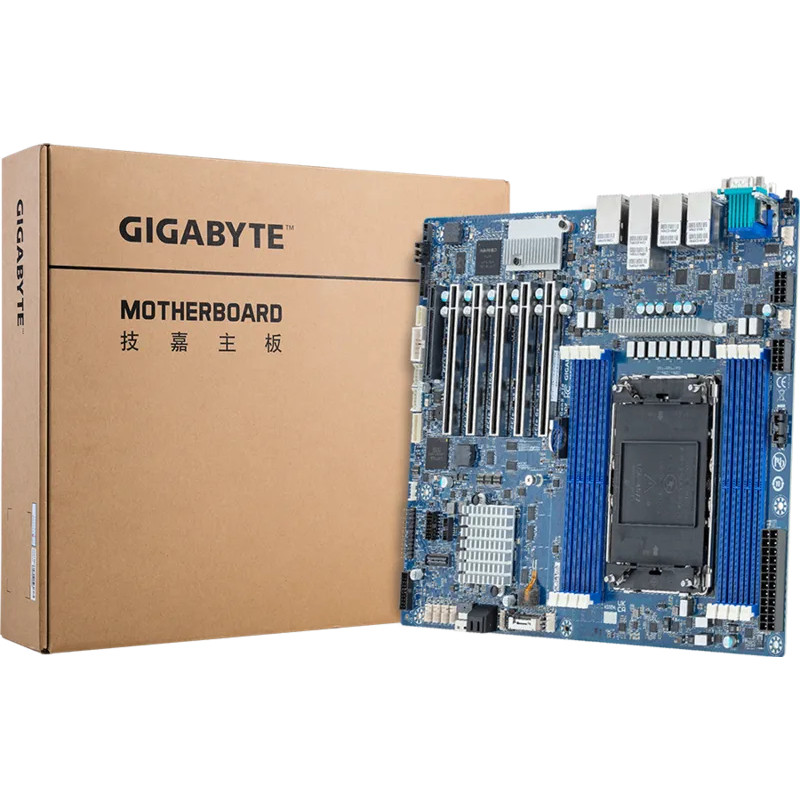

GIGABYTE MS03-6L0 palvelinemo ATX LGA4677 Intel Xeon Scalable DDR5 Bulk (9MS036L0NR-000-3)

The GIGABYTE MS03-6L0 stands out in the server motherboard segment by pairing an LGA4677 socket with the Intel C741 chipset, delivering a platform built for 4th Gen Intel Xeon Scalable processors and DDR5 memory. Its ATX form factor makes it a practical choice for standard server chassis, while dual 10GbE LAN ports provide high-speed networking without additional adapters.

Highlights

• Supports 4th Gen Intel Xeon Scalable processors on LGA4677 (Socket E)
• 8x DDR5 RDIMM slots, up to 2TB capacity
• Dual 10GbE LAN via Intel X710-AT2, plus dedicated 1GbE management port
• PCIe Gen5 x16 slots for next-gen expansion cards
• Onboard Aspeed AST2600 BMC with IPMI 2.0 and KVM over IP

In daily use

This board is engineered for dense compute and storage workloads. With 6 SATA ports, 2 SlimSAS connectors, and 2 M.2 slots, it offers flexible storage options. The dedicated management LAN port simplifies remote administration, and the dual 10GbE interfaces ensure high throughput for virtualized environments or data-intensive applications.

Full specifications

• CPU Socket: LGA4677 (Socket E)
• Chipset: Intel C741
• Memory: 8x DDR5 RDIMM slots, max 2TB
• Expansion: 2x PCIe Gen5 x16, 1x PCIe Gen5 x8, 1x PCIe Gen4 x8
• Storage: 6x SATA 6Gb/s, 2x M.2 (PCIe Gen4 x4), 2x SlimSAS
• Network: 2x 10GbE (Intel X710-AT2), 1x 1GbE management (Realtek RTL8211F)
• Graphics: Aspeed AST2600 BMC
• USB: 2x USB 3.2 Gen1 Type-A (rear)
• Form Factor: ATX (12" x 9.6")
• Power Connectors: 24-pin ATX, 2x 8-pin EPS

Final note

For system builders seeking a reliable ATX server board with modern connectivity and remote management, the MS03-6L0 delivers a solid foundation for Xeon Scalable deployments.
