GIRA 383700 painike ristikytkentäosuus, ilman keinupainiketta

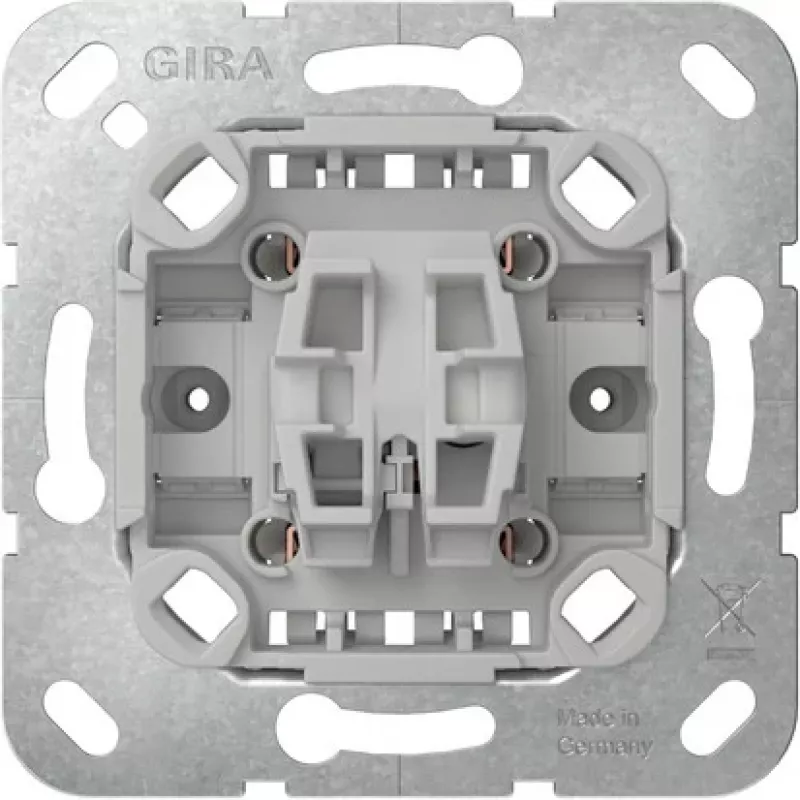

The GIRA 383700 is a flush-mounted push-button insert designed for cross-circuit switching, enabling control from multiple points without a rocker. Its compact thermoplastic body and screw terminals make it a reliable core for custom switch combinations in Gira System 55 and compatible ranges.

Highlights

• Single-pole normally open contact for momentary switching
• Flush-mounted installation with screw fixing
• Halogen-free thermoplastic construction
• Compatible with Gira System 55, E2, Event, Esprit, Standard 55, and S-Color design lines

In daily use

This insert serves as the functional base for a push-button switch. It is installed behind a compatible rocker (not included) and allows control of lighting or other loads via relays or contactors. The screw terminals ensure secure wiring, and the compact design fits standard flush-mounted boxes.

Full specifications

• Switch type: Push-button (momentary)
• Contact configuration: 1 normally open (NO)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Mounting type: Flush-mounted
• Mounting method: Screw mounting
• Connection type: Screw terminals
• Material: Thermoplastic
• Halogen-free: Yes
• IP rating: IP20
• Operating temperature: -5 to +40 °C
• Certification: VDE

Final note

A versatile insert for custom push-button configurations in modern electrical installations.
