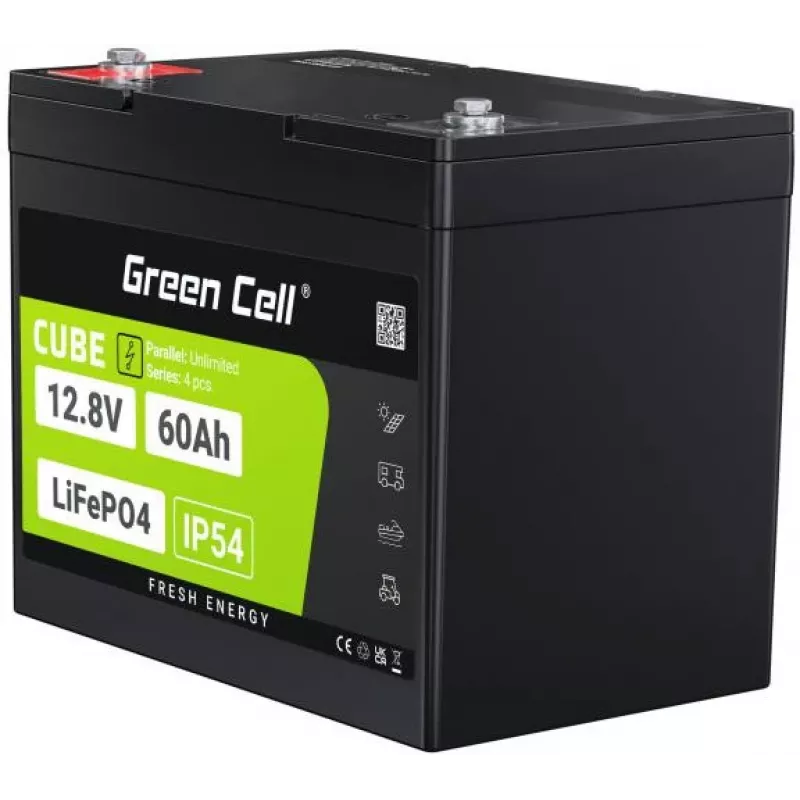

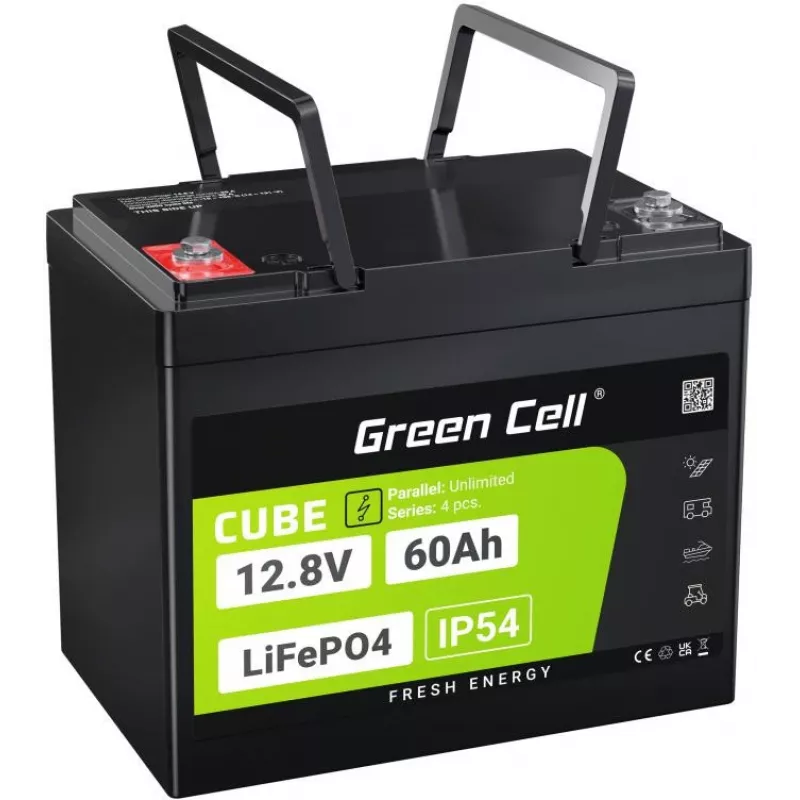

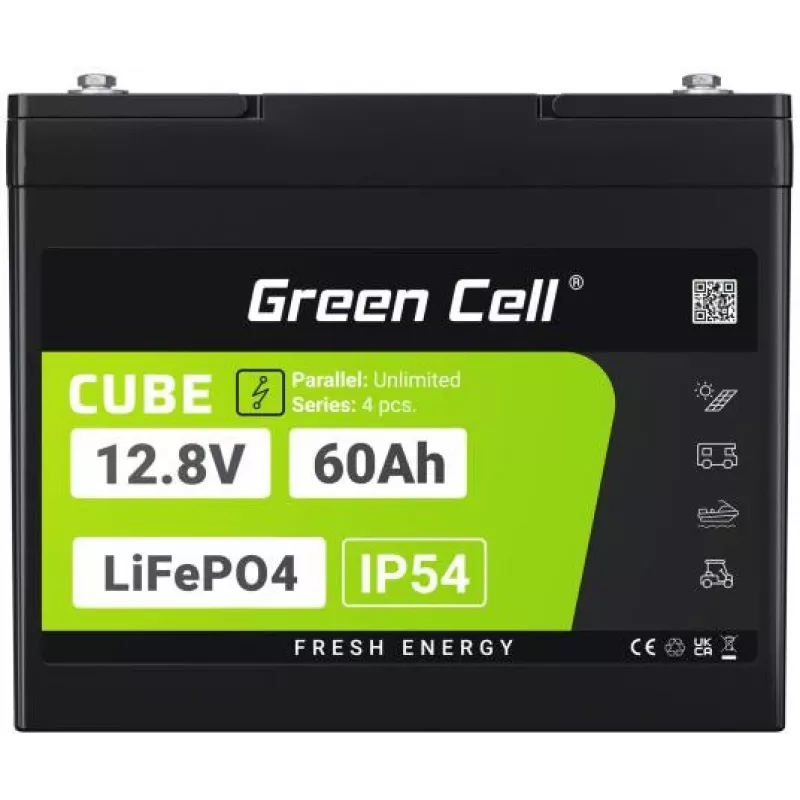

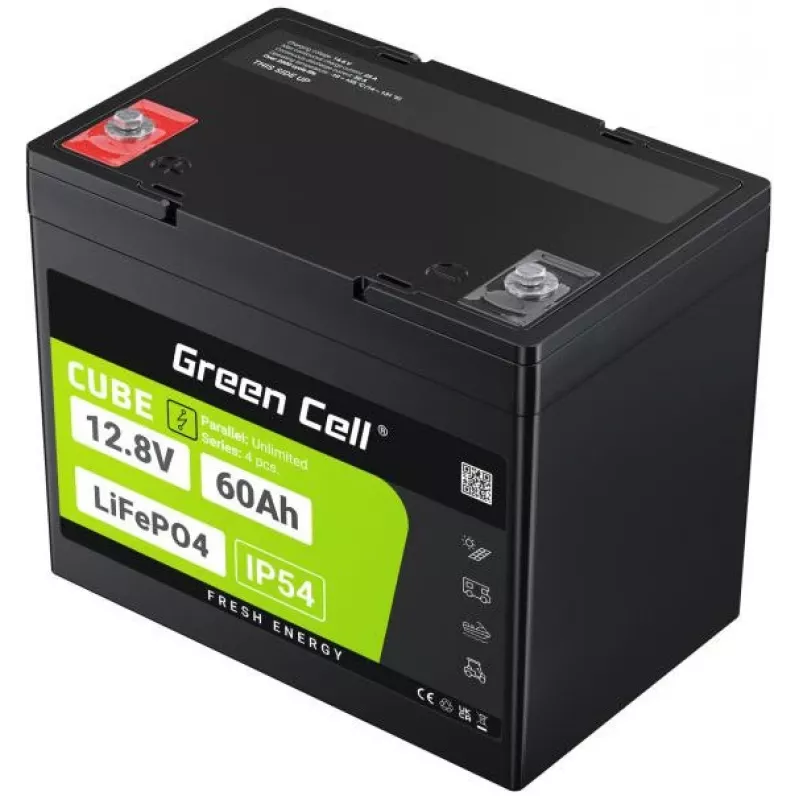

Green Cell LFPGC12V60AH UPS-akku litium-rautafosfaatti (LiFePO4) 12,8 V 60 Ah

Uninterruptible power supplies are only as reliable as the battery that fuels them. When the grid flickers or fails, a weak or aging battery can mean the difference between a seamless transition and costly downtime. The Green Cell LFPGC12V60AH is an advanced lithium iron phosphate (LiFePO4) battery engineered to keep your critical systems running smoothly, offering superior cycle life and consistent power delivery compared to traditional lead-acid batteries.

Who is it for

This battery is ideal for UPS systems protecting servers, networking equipment, medical devices, and home electronics. It also excels in solar energy storage, electric vehicles, and marine or caravan power systems. Whether you need a reliable backup for a small business or want to upgrade an existing battery bank, the LFPGC12V60AH delivers dependable performance in a compact, maintenance-free package.

Main features

• High energy density (768 Wh) for longer runtime without added bulk
• Exceptional cycle life – more than 4000 cycles at 80% depth of discharge
• Built-in Battery Management System (BMS) for protection against overcharge, over-discharge, short circuit, and overheating
• Wide operating temperature range (-20°C to 60°C) for versatile installation environments
• Ultra-low self-discharge rate (less than 3% per month) – ready for use even after long storage
• Expandable: connect up to 4 batteries in series or parallel for higher voltage or capacity

Specifications

• Battery Technology: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8 V
• Nominal Capacity: 60 Ah
• Energy Content: 768 Wh
• Max. Continuous Discharge Current: 60 A
• Max. Peak Discharge Current: 120 A (3s)
• Max. Continuous Charge Current: 30 A
• Recommended Charge Voltage: 14.4 - 14.6 V
• Cut-off Voltage: 10 V
• Cycle Life: >4000 cycles (at 80% DoD)
• Terminal Type: M8
• Built-in Battery Management System (BMS): Yes
• Series Connection Capability: Up to 4 batteries
• Parallel Connection Capability: Up to 4 batteries
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): 0°C to 45°C
• Self-Discharge Rate: <3% per month
• Housing Material: ABS
• Internal Resistance: <20 mΩ

Tips

For optimal performance, ensure the battery is charged fully before first use. When connecting multiple batteries, use cables of equal length and gauge to balance the load. Store in a cool, dry place if not in use for extended periods.
