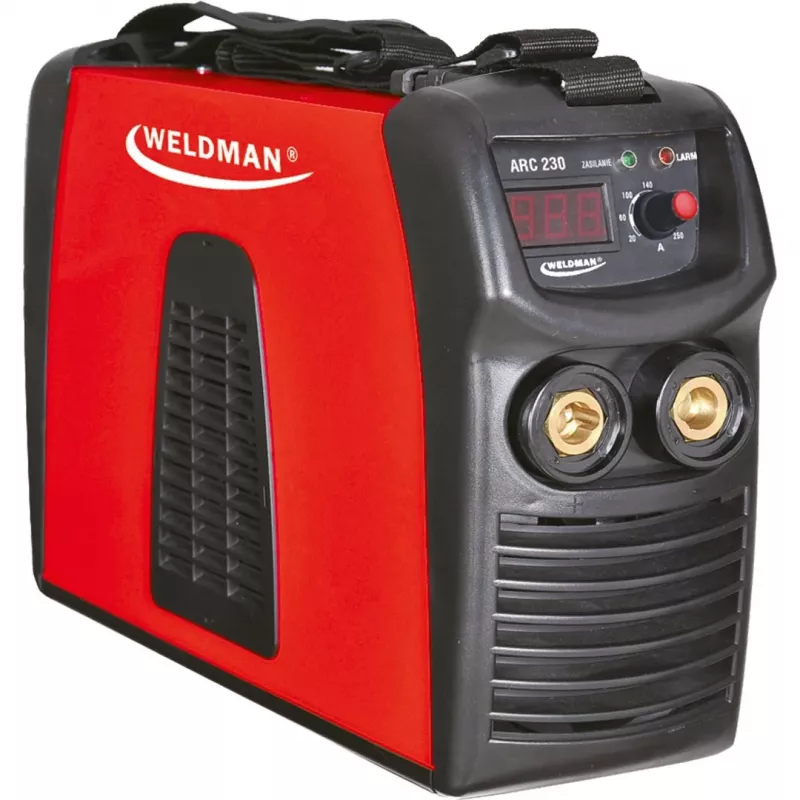

GREENCELL INVERTTERI HITSAUSKONE WELDMAN ARC-230

The GREENCELL WELDMAN ARC-230 is a professional-grade inverter welding machine designed for MMA (Manual Metal Arc) welding. Featuring advanced IGBT inverter technology, this machine delivers a stable arc and excellent welding performance for a wide range of electrodes. With a welding current range of 20-230 A and a high duty cycle, it is suitable for both light maintenance and heavy industrial applications. The digital display and built-in functions like Hot Start, Arc Force, and Anti Stick ensure ease of use and superior weld quality.

Advantages

IGBT inverter technology for energy efficiency and reliable arc stability. Lightweight and portable design with fan cooling for extended operation. Digital display for precise current adjustment. Hot Start, Arc Force, and Anti Stick functions improve welding ease and reduce electrode sticking. High duty cycle of 60% at 230 A allows continuous heavy-duty welding.

Suitable for

• Construction and metal fabrication workshops
• Maintenance and repair tasks
• Agricultural and automotive repairs
• DIY enthusiasts and professional welders

Key specifications

• Welding Process: MMA (Manual Metal Arc)
• Inverter Technology: IGBT
• Input Voltage: 230 V AC, 50/60 Hz (Single-phase)
• Max Input Current (I1max): 35 A
• Open Circuit Voltage (U0): 65 V
• Welding Current Range: 20 - 230 A
• Duty Cycle (60%): 230 A
• Duty Cycle (100%): 178 A
• Max Electrode Diameter: 5.0 mm
• Min Electrode Diameter: 1.6 mm
• Power Factor (cos φ): 0.73
• Efficiency: 85%
• Insulation Class: F
• Protection Class: IP21S
• Cooling System: Fan
• Hot Start Function: Yes
• Arc Force Function: Yes
• Anti Stick Function: Yes
• Digital Display: Yes
• Recommended Generator Power: 8.0 kVA

Recommendations

For optimal performance, use electrodes with diameters between 1.6 mm and 5.0 mm. Ensure the input power supply is stable and capable of delivering at least 8.0 kVA if using a generator. Always follow safety guidelines and wear appropriate protective equipment.
