Hager BA780100 rakokanava - harmaa - PVC - 2000 mm - EN 50085-2-3

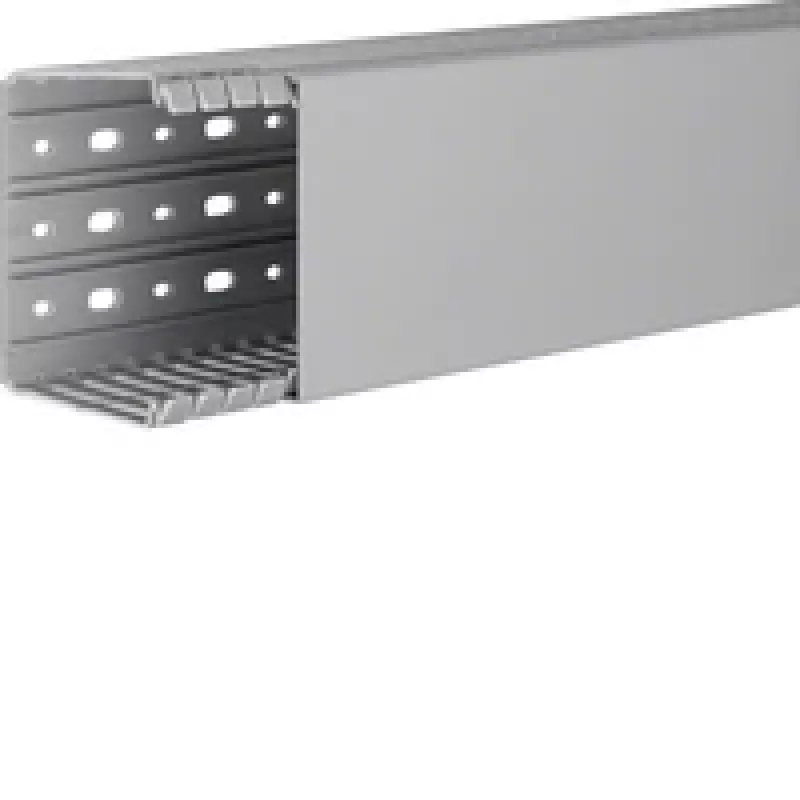

The Hager BA780100 is a high-quality slotted wiring duct designed for professional cable management in electrical installations. Manufactured from durable PVC, this duct ensures reliable protection and organization of cables in control cabinets, distribution boards, and industrial environments. Compliant with EN 50085-2-3 standards, it offers a slot width of 6.5 mm and a slot pitch of 12.5 mm, providing flexibility for cable routing. The grey colour (RAL 7030) blends seamlessly with standard industrial equipment.

Advantages

This slotted wiring duct provides easy cable insertion and removal, saving time during installation and maintenance. Its self-extinguishing properties enhance safety, and the pre-punched base holes allow for quick screw mounting. The duct is halogen-free and operates reliably in temperatures from -5 °C to +60 °C, making it suitable for a wide range of applications.

Suitable for

• Control cabinets and switchgear
• Distribution boards and electrical panels
• Industrial automation systems
• Building infrastructure wiring

Key specifications

• Product Type: Slotted Wiring Duct
• Material: PVC (Polyvinyl Chloride)
• Colour: Grey (RAL 7030)
• Length: 2000 mm
• Width: 80 mm
• Height: 100 mm
• Slot Width: 6.5 mm
• Slot Pitch: 12.5 mm
• Standard Compliance: EN 50085-2-3
• Halogen-free: No
• Operating Temperature Range: -5 °C to +60 °C
• Glow Wire Test Temperature: 850 °C
• Self-extinguishing: Yes
• Mounting Type: Screw Mounting (Pre-punched base holes)
• Cover Included: No (Sold Separately)

Recommendations

For a complete installation, pair this duct with the corresponding Hager cover (sold separately). Ensure proper mounting using screws suitable for the base material. Always follow local electrical codes and standards.
