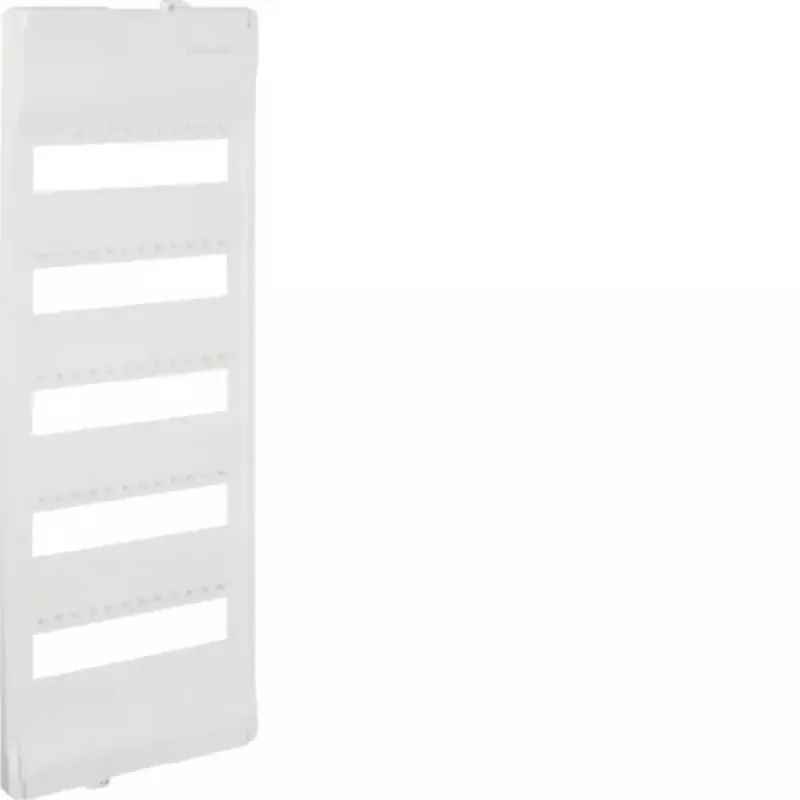

HAGER VZ225A Volta kansi UPV/HWV jakokeskukselle, koko 5

Distribution boards protect electrical circuits, but without a proper cover they are exposed to dust, contact, and visual clutter. The HAGER VZ225A Volta Cover solves this by providing a clean, secure front for size 5 flush-mounted (UPV) and cavity wall (HWV) distribution boards.

Who is it for

Electricians and panel builders who install Hager Volta distribution boards in residential or commercial settings. It is also useful for maintenance technicians replacing damaged or missing covers.

Main features

• Compatible with Hager Volta size 5 UPV and HWV distribution boards
• Snap-on fastening for quick, tool-free installation
• Made from halogen-free, UV-resistant plastic
• Traffic white (RAL 9010) smooth finish matches standard enclosures
• Protects internal components and provides an aesthetic finish

Specifications

• Product type: Front cover / device carrier cover
• Material: Plastic
• Colour: Traffic white (RAL 9010)
• Mounting type: Snap-on fastening
• Halogen-free: Yes
• UV-resistant: Yes
• Glow wire test temperature: 650 °C
• Number of rows accommodated: 5
• Operating temperature range: -5 to 40 °C
• Storage temperature range: -25 to 70 °C

Tips

Ensure the distribution board is de-energized before installing or removing the cover. The snap-on mechanism allows for easy access during maintenance.
