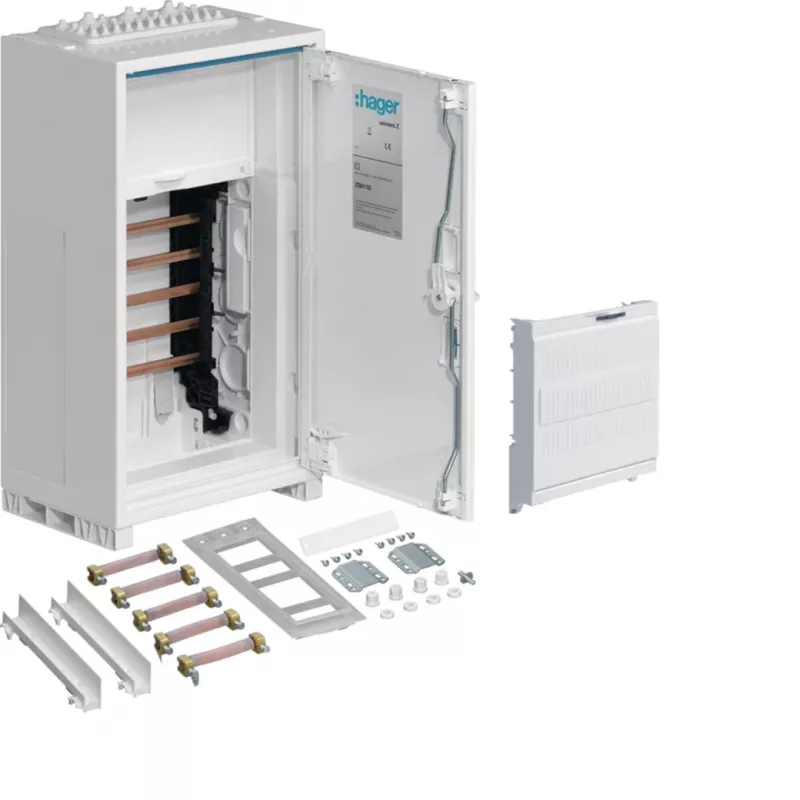

Hager ZB011C liitäntäkaappi integroidulla ylijännitesuojalla, 500x300x205 mm

Standard meter cabinets require separate surge protection devices, but the Hager ZB011C integrates lateral Type 2 overvoltage protection directly into the enclosure. This surface-mounted unit comes pre-equipped with all necessary connection material, reducing installation time and simplifying compliance with DIN VDE 0100-443. The robust sheet steel construction with a white RAL 9010 finish suits residential and small commercial settings.

Highlights

• Integrated Type 2 surge protection on the side, safeguarding downstream equipment from transient overvoltages.
• Supplied with all necessary connection material, reducing on-site procurement and installation time.
• Robust sheet steel construction with a white RAL 9010 finish, suitable for residential and small commercial settings.
• 3-row distribution board with 36 module units, offering ample space for circuit breakers and residual current devices.
• 5-pole busbar system plus N and PE terminal blocks included, ensuring straightforward wiring.

In daily use

Installed in a hallway or utility room, the ZB011C provides a clean, professional appearance while keeping all metering and distribution components behind an opaque steel door. The pre-punched knockouts on top, bottom, and side allow flexible cable entry without the need for additional cutting tools. With IP44 protection, the cabinet resists dust and splashing water, making it reliable even in less-than-ideal environments. The 3-point meter mounting system accommodates standard electricity meters securely, and the integrated surge protection ensures downstream devices are protected.

Full specifications

• Cabinet type: Metering cabinet (Zählerschrank)
• Number of fields: 1
• Mounting type: Surface-mounted (Aufputz)
• Meter mounting system: 3-point mounting
• Overvoltage protection: Integrated (Type 2, lateral)
• Connection material: Included (Verbindungsmaterial)
• Enclosure material: Sheet steel
• Protection class (IP): IP44
• Protection class (door open): IP2XC
• Rated voltage: 230/400 V AC
• Rated current (In): 63 A
• Number of meter positions: 1
• Distribution rows: 3 rows (36 module units total)
• Door type: Opaque steel door
• Colour: White (RAL 9010)
• Busbar system: 5-pole
• Terminal blocks: N and PE included
• Standards compliance: DIN VDE 0603-1, DIN 43870-1, TAB
• Cable entry: Pre-punched knockouts (top, bottom, side)
• Application: Residential and small commercial installations

Final note

The Hager ZB011C is a complete, ready-to-install solution that combines metering, distribution, and surge protection in one compact enclosure, ensuring safety and compliance with minimal effort.
