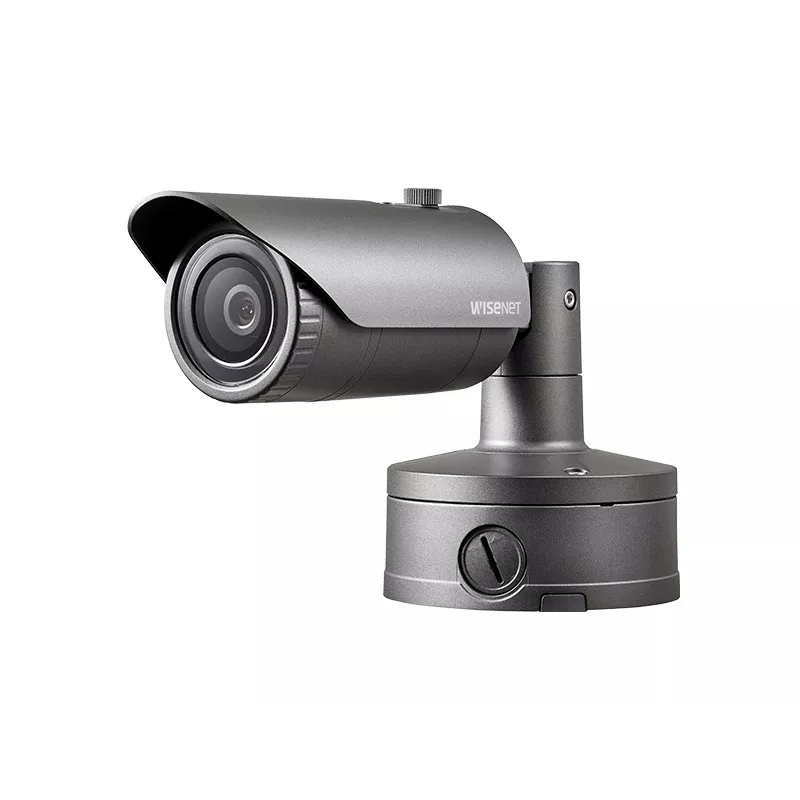

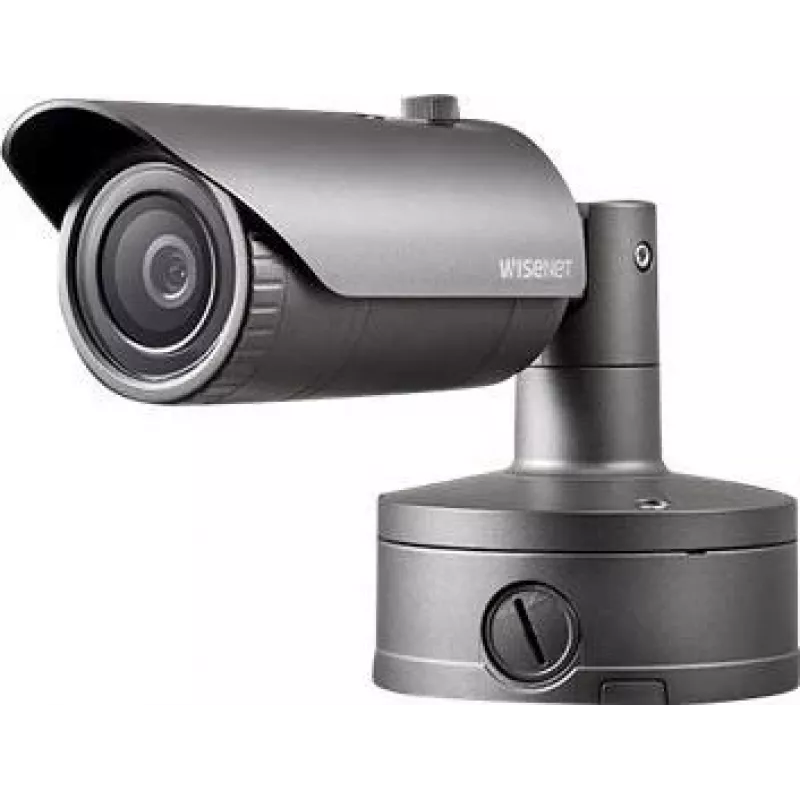

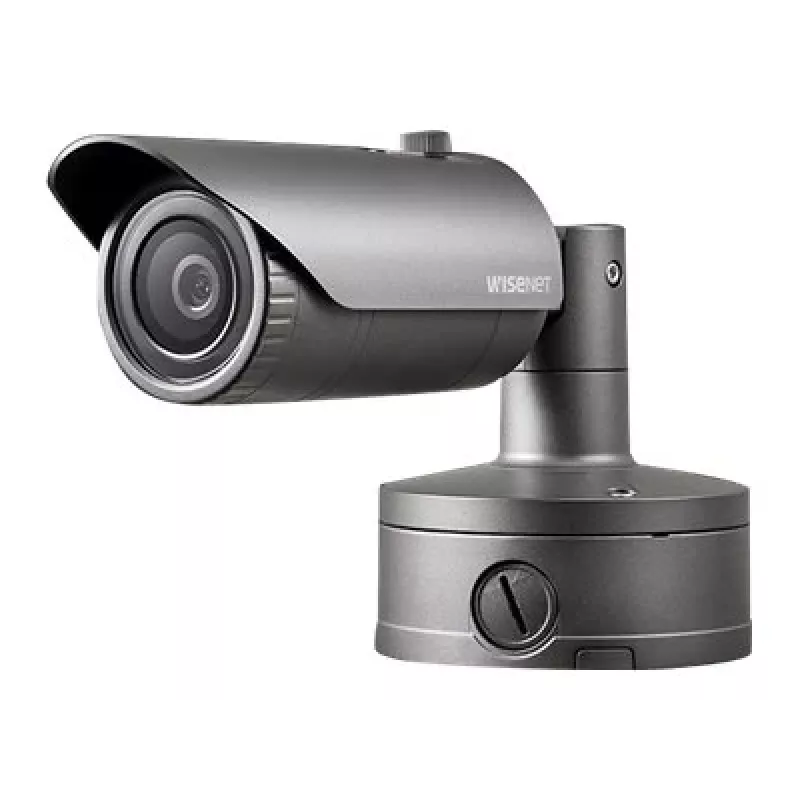

Hanwha Vision XNO-8020R 5MP IR bullet-verkkokamera

Capture 5MP video at 30fps with the Hanwha Vision XNO-8020R, a bullet network camera featuring a 1/1.8" CMOS sensor and 120dB WDR for balanced images in challenging light.

Overview

The XNO-8020R is part of the Wisenet X Series, designed for outdoor surveillance. Its fixed 3.7mm lens provides a wide field of view, and IR illumination reaches up to 30m in complete darkness. The camera supports H.265, H.264, and MJPEG compression, and includes intelligent video analytics such as tampering detection, loitering, and people counting.

What stands out

• 5MP resolution at 30fps for smooth, detailed video
• 120dB Wide Dynamic Range handles high-contrast scenes
• Built-in IR LEDs with 30m range for night vision
• IP66 and IK10 rated for outdoor and vandal resistance
• Two-way audio with built-in microphone
• Supports microSD cards up to 512GB for edge storage

Technical details

• Sensor: 1/1.8" CMOS
• Resolution: 2592 x 1944 (5MP)
• Frame rate: 30fps @ 5MP
• Lens: Fixed 3.7mm
• Minimum illumination: 0.07 lux (color), 0.007 lux (B/W), 0 lux with IR
• Video compression: H.265, H.264, MJPEG
• WDR: 120dB
• Day/night: Auto (ICR), color, B/W, external, schedule
• Audio: Two-way, built-in mic, mic in/out
• Storage: SD/SDHC/SDXC slot (max 512GB)
• Network: RJ-45 10/100BASE-T
• Power: PoE (IEEE802.3af Class3) or 12V DC
• Operating temperature: -40°C to +55°C
• Ingress protection: IP66, NEMA4X
• Vandal resistance: IK10

Our verdict

The XNO-8020R delivers high-resolution imaging with robust outdoor durability and advanced analytics, making it a reliable choice for demanding surveillance applications.
