HDMI-toistin MicroConnect MC-HDMIREPEATER-8K 8K-resoluutio

The MicroConnect MC-HDMIREPEPEATER-8K HDMI Repeater extends HDMI signals up to 10 meters while preserving high-resolution video and audio. It supports up to 8K@60Hz (YUV 4:4:4) and 4K@60Hz, uses active self-powered circuitry that draws power from the HDMI cable, and can be powered additionally via the included USB‑C cable. Gold-plated connectors improve signal integrity and durability for reliable use in home cinema, gaming, and professional AV installations.

Advantages

The repeater maintains image clarity at high resolutions, supports 8K@60Hz (YUV 4:4:4) and 4K@60Hz, and avoids external power adapters by using power from the HDMI link or optional USB‑C input. Its compact design and gold‑plated connectors reduce signal interference and increase connector longevity, enabling straightforward integration into existing HDMI setups.

Suitable for

• Home theater systems requiring extended HDMI runs
• Gaming consoles and high-resolution PC displays
• Professional AV installations and conference rooms
• Setups where maintaining 8K or 4K image quality over longer cables is needed

Key specifications

• Model: MicroConnect MC-HDMIREPEATER-8K (MC-HDMIREPEATER-8K)
• Supported resolutions: up to 8K@60Hz (YUV 4:4:4), 4K@60Hz
• Maximum extension: up to 10 meters (depending on cable quality and devices)

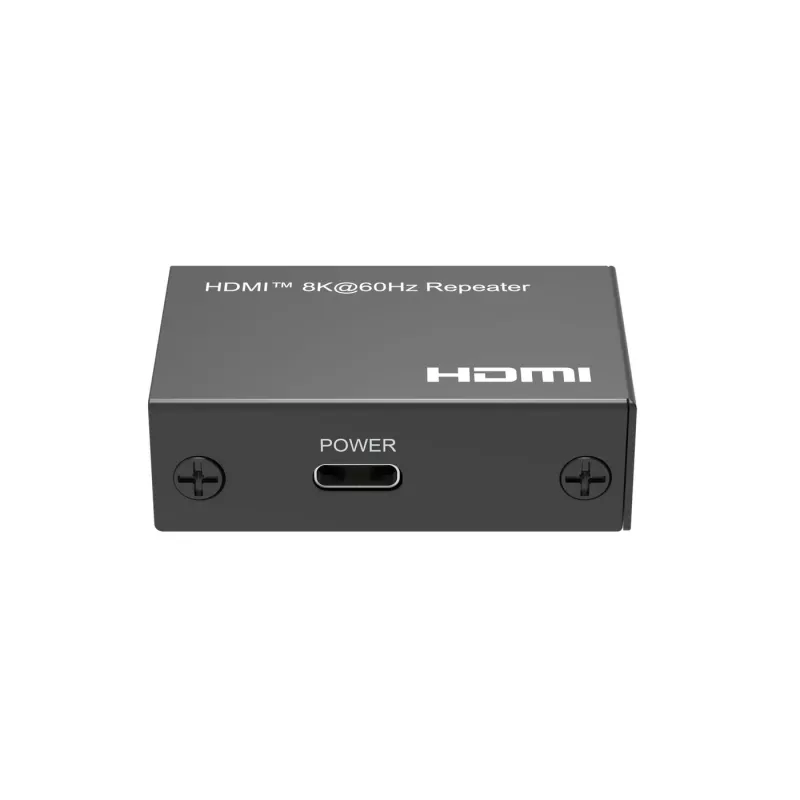

• Power: self-powered via HDMI; optional USB‑C power cable included
• Connectors: gold-plated HDMI connectors
• Brand: MicroConnect
• EAN: 5715063739945

How to use

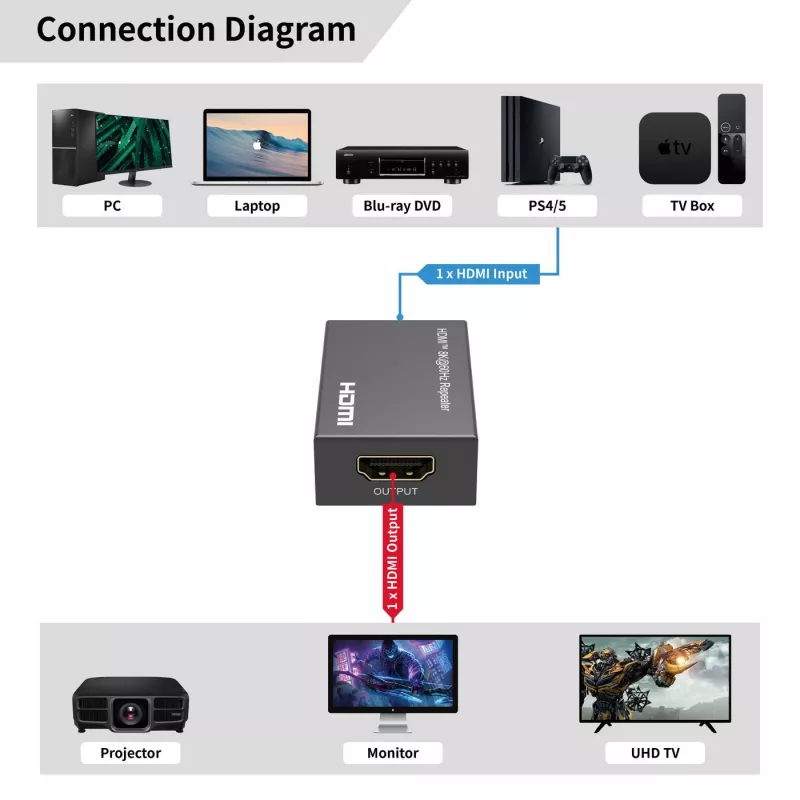

Connect the repeater between the source device and the display using HDMI cables. If the HDMI connection supplies sufficient power, the unit will operate without additional power. For longer cable runs or when extra power is required, connect the supplied USB‑C cable to a suitable USB power source. Ensure cables are fully inserted and compatible with the target resolutions to achieve stable 8K or 4K transmission.

Recommendations

Use high-quality HDMI cables rated for 8K/4K bandwidth and keep cable lengths within recommended distances. Test the connection after installation and, if needed, provide USB‑C power for the most reliable long-distance performance.
