HEUER kiertolevy rinnakkaisruuvipenkille 150 + 160 + 175

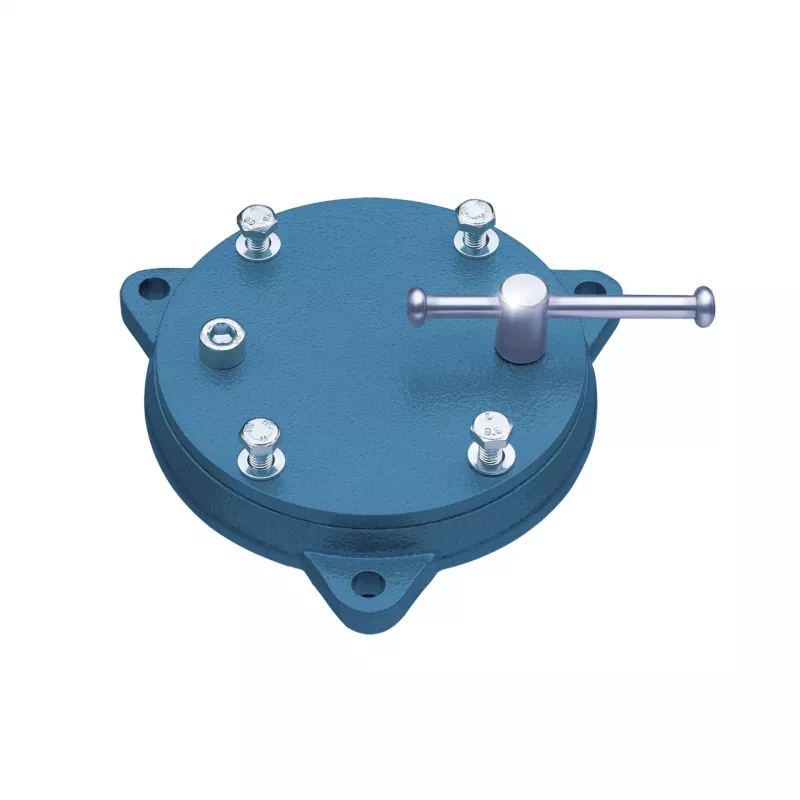

The HEUER Rotary Plate is a precision-engineered swivel base designed to enhance the versatility and positioning of your workbench vice. Compatible with HEUER parallel vices of 150 mm, 160 mm, and 175 mm jaw widths, this rotary plate allows full 360° rotation, locked securely by two robust clamping screws. Manufactured in Germany from high-quality cast iron and steel with a durable powder coating, it provides a stable and smooth operation for precise workholding.

Advantages

This rotary plate transforms your fixed vice into a flexible positioning tool, enabling you to rotate your workpiece without releasing the clamp. The precision-machined surfaces ensure smooth rotation, while the two clamping screws provide a firm lock at any angle. The bolt-on design allows easy mounting to your workbench using M12 bolts (not included) in a 160 x 160 mm square pattern. The plate adds approximately 85 mm in height to your vice, improving ergonomics and access.

Suitable for

• HEUER parallel vices with 150 mm, 160 mm, or 175 mm jaw width
• Workshops, metalworking, woodworking, and DIY applications requiring precise angular positioning
• Mounting on workbenches with suitable bolt holes

Key specifications

• Product Type: Rotary Plate / Swivel Base
• Compatibility: HEUER Parallel Vices 150 mm, 160 mm, 175 mm
• Rotation Angle: 360°
• Locking Mechanism: Two robust clamping screws
• Material: High-quality Cast Iron / Steel
• Mounting Type: Bolt-on to Workbench
• Color: HEUER Blue/Grey
• Height Increase for Vice: Approx. 85 mm
• Mounting Hole Diameter (Base): Approx. 13 mm (for M12 bolts)
• Mounting Hole Spacing (Base): 160 x 160 mm (square pattern)
• Precision: Precision machined for smooth operation
• Application: Enhances versatility and positioning of workbench vices
• Finish: Durable powder coating
• Country of Origin: Germany
• Included Components: Rotary Plate, Mounting Hardware (screws, nuts, washers)

Recommendations

For optimal stability, ensure your workbench is sturdy and the mounting bolts are properly tightened. The rotary plate is designed for indoor use and should be kept clean and lubricated occasionally for smooth rotation.
