Hikvision DS-1475ZJ-Y pystysuora mastokiinnike PTZ-dome-kameroille

The Hikvision DS-1475ZJ-Y is a robust vertical pole mount bracket designed for secure installation of Hikvision PTZ dome cameras. Engineered from high-quality aluminum alloy with a weather-resistant surface treatment, this bracket ensures reliable performance in both indoor and outdoor environments. It supports pole diameters from 67 mm to 127 mm and offers a maximum load capacity of 30 kg, making it ideal for heavy-duty surveillance setups.

Advantages

This vertical pole mount bracket provides a stable and durable mounting solution for Hikvision PTZ cameras. Its integrated cable management system keeps cables organized and protected, while the surface spray treatment enhances corrosion resistance. The bracket is easy to install and compatible with a wide range of Hikvision PTZ dome camera series, including DS-2DE7A, DS-2DE7C, and DS-2DF8C.

Suitable for

• Hikvision PTZ dome cameras (DS-2DE7A, DS-2DE7C, DS-2DF8C series)
• Vertical pole mounting on poles with diameter 67-127 mm
• Outdoor and indoor surveillance applications

Key specifications

• Mount Type: Vertical Pole Mount
• Material: Aluminum Alloy
• Color: Hik White

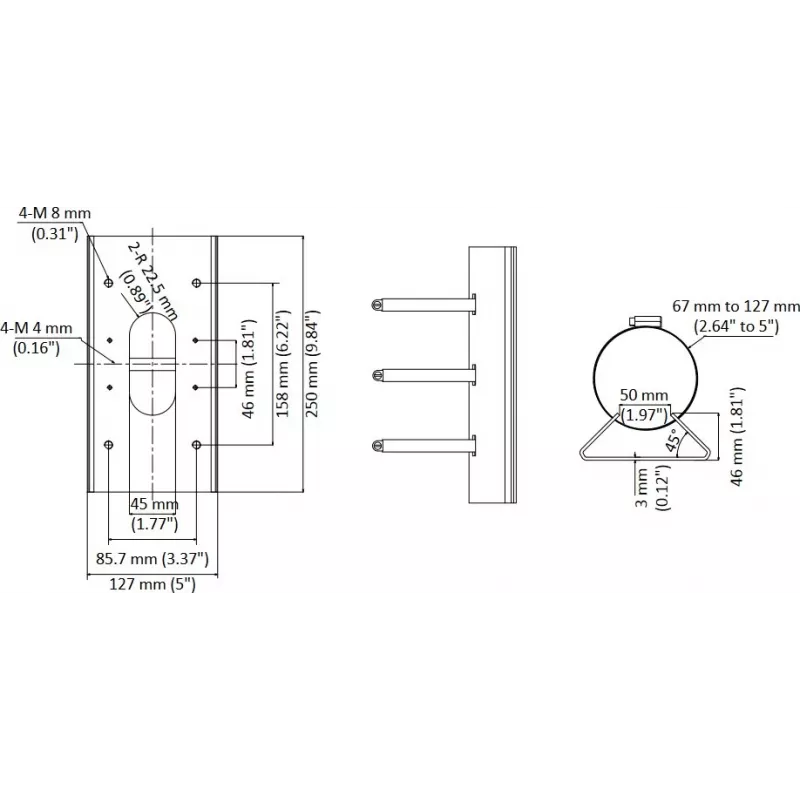

• Pole Diameter Supported: Φ67 mm to Φ127 mm
• Load Capacity: 30 kg
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Dimensions (Bracket): Φ127 mm × 465.3 mm (Diameter x Height)
• Net Weight: 1.7 kg
• Application Environment: Outdoor/Indoor
• Installation Method: Vertical Pole Mounting
• Cable Management: Integrated
• Surface Treatment: Surface spray treatment

Recommendations

For optimal performance, ensure the pole diameter is within the supported range and that the bracket is securely fastened. This mount is designed specifically for Hikvision PTZ dome cameras; verify camera compatibility before installation.
