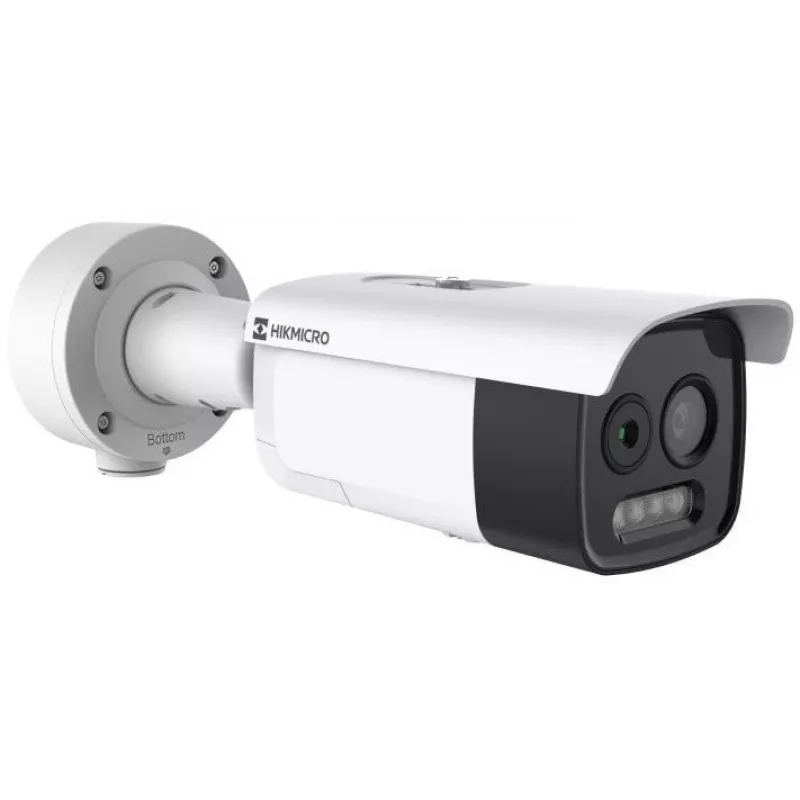

Hikvision HM-TD2628T-7/G1/T3A lämpö- ja optinen kaksispektri verkkoluotikamera

The Hikvision HM-TD2628T-7/G1/T3A is a high-performance thermal and optical bi-spectrum network bullet camera designed for critical surveillance and early fire detection. Combining a 256×192 thermal sensor with a 4 MP optical sensor, this camera delivers reliable 24/7 monitoring in challenging environments. With IP66 ingress protection and wide operating temperature range, it is built for outdoor use.

Advantages

Dual-spectrum imaging provides both thermal and visual details, enabling accurate detection of temperature anomalies and security events. The 7 mm thermal lens and 8 mm optical lens offer a balanced field of view for medium-range monitoring. Smart features include fire detection, line crossing, intrusion, and region entrance/exit alarms, making it ideal for perimeter protection and industrial safety.

Suitable for

• Perimeter security for industrial sites, warehouses, and critical infrastructure
• Early fire detection in forests, landfills, and power plants
• Temperature monitoring of equipment and processes
• Outdoor surveillance in harsh weather conditions

Key specifications

• Thermal sensor: 256 × 192 resolution, 7 mm lens, 24.9° × 18.7° FoV
• Optical sensor: 4 MP (2688 × 1520), 8 mm lens, 39.4° × 22.1° FoV
• IR illumination: up to 50 m
• Video compression: H.265/H.264/MJPEG
• Temperature measurement range: -20°C to 150°C, accuracy ±8°C
• Network: 1x RJ45 10/100M Ethernet, PoE (802.3af) support
• Power: 12 VDC ±20% or PoE, max 8 W
• Storage: MicroSD slot up to 256 GB
• IP66 rated, operating temperature -40°C to 65°C

Recommendations

For optimal performance, use a PoE switch or 12 VDC power supply. Ensure the camera is mounted at a suitable height to cover the desired area. Regularly clean the lens and check for firmware updates.
