HISMART virtalähde 24V 14.6A 350W

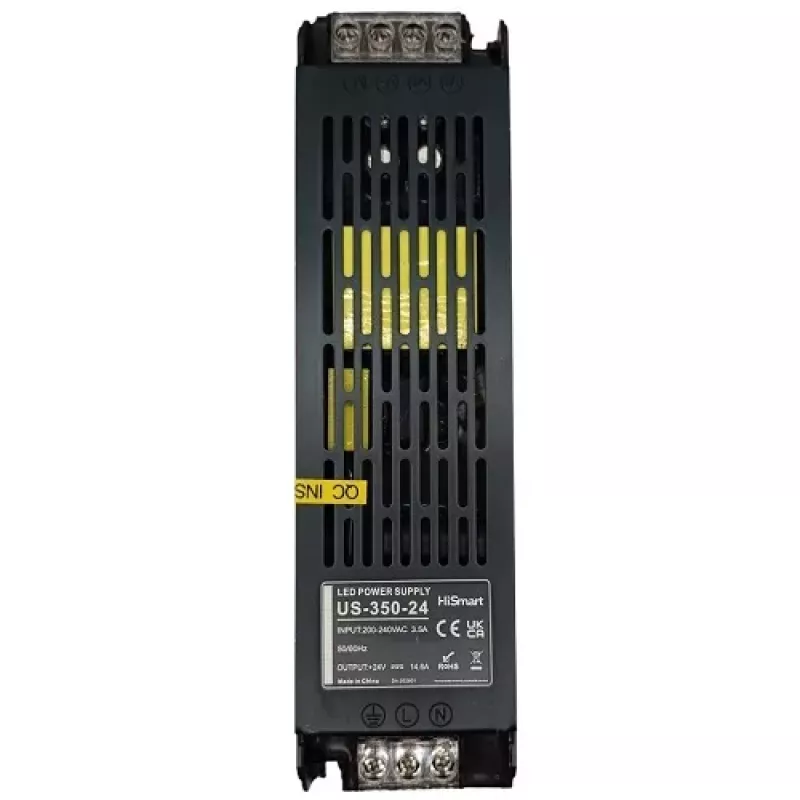

The HISMART US-350-24 is a high-performance industrial power supply delivering 24V DC at 14.6A with 350W output. Designed for reliable operation in demanding environments, it features a metal case, built-in DC fan cooling, and comprehensive protection against overload, over voltage, and short circuits. With an efficiency exceeding 85%, this power supply ensures stable power for a wide range of applications.

Advantages

High efficiency reduces energy waste and heat generation. Built-in fan ensures reliable cooling even under full load. Wide input voltage range (90-264V AC) makes it suitable for global use. Compact metal enclosure provides durability and effective heat dissipation.

Suitable for

• Industrial automation systems
• LED lighting installations
• CCTV and security systems
• Telecommunication equipment
• Any application requiring a stable 24V DC power source

Key specifications

• Output Voltage: 24V DC (adjustable ±10%)
• Output Current: 14.6A
• Output Power: 350W
• Input Voltage: 90-264V AC
• Input Frequency: 47-63 Hz
• Efficiency: >85%
• Protection: Overload, Over Voltage, Short Circuit
• Cooling: Built-in DC fan
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +85°C
• Humidity: 20-90% RH non-condensing
• Output Ripple & Noise: <150mVp-p
• Input Connector: Screw Terminal Block
• Output Connector: Screw Terminal Block
• Enclosure Material: Metal Case
• Safety Standards: CE, RoHS
• MTBF: >50,000 hours

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. The output voltage can be adjusted via the built-in potentiometer. Always use appropriate gauge wiring for the output current.
